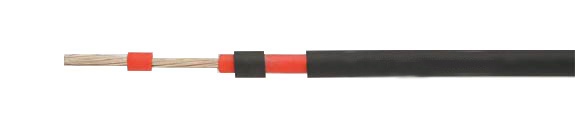

Double Insulated, 0.6/1 kV, Halogen-Free, UV-Resistant, UL upon request
Sealcon, Inc, European & Domestic cable
European Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
Conductor/ Jacket Color
AWG
700019
SOLARFLEX 104 1X2.5
5.8
24.0
46.0
red/black
14
74653
SOLARFLEX 104 1X2.5
5.8
24.0
46.0
blue/black
14
700020
SOLARFLEX 104 1X4
6.3
38.4
68.0
red/black
12
74655
SOLARFLEX 104 1X4
6.3
38.4
68.0
blue/black
12
700021
SOLARFLEX 104 1X6
7.6
57.6
95.0
red/black
10
78163
SOLARFLEX 104 1X6
7.6
57.6
95.0
blue/black
10
700612
SOLARFLEX 104 1X10
9.6
96.0
110.0
red/black
8
700613
SOLARFLEX 104 1X10
9.6
96.0
110.0
blue/black
8
700614
SOLARFLEX 104 1X16
11.0
153.6
170.0
red/black
6
700615
SOLARFLEX 104 1X16
11.0
153.6
170.0
blue/black
6
Technical
Data
European
Temperature Range -40°C to +90°C (-40°
F to +194°
F)
UL to +80°C (+176°
F)
-40°C to +120°C (-40°
F to +248°
F) 3000 hours
Nominal Voltage 600/1000 V
Test Voltage, 50 Hz
4000 V
Insulation Resistance Min. 200 MOhm/km
Minimum Bending Radius Approx. 8 cable Ø
Approvals
Cable
Construction
PUR jacket and insulation, halogen-free
Bare copper, tinned, finely stranded according to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
Application
The power of the wind, sun and water are alternative power sources which are always available and inexhaustible. These cables are intended for photo-voltaic systems. Photo-voltaic systems convert the energy of the sun directly into electric energy. The cable is UV-radiation and temperature resistant and can be used to connect individual solar cells. Because of their excellent weather resistance, these cables can also be installed outdoors, but not buried underground or laid in water.
Properties
Very robust and abrasion-resistant jacket
Excellent oil and chemical resistance
Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
No cold flow meaning optimum long-term tightness of the connection systems
UV, ozone, weather adn hydrolysis-resistant
Excellent resistance to oils and chemicals
Robust and abrasion-resistant jacket
Resistant to short circuits up to 250°C thanks to their double insulation
