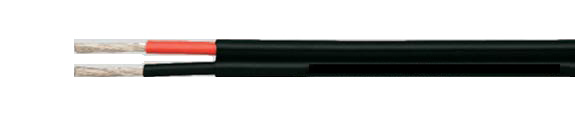

European Special Cables: SOLARFLEX 102
Double Insulated, 0.6/1 kV, UV-Resistant

Sealcon, Inc, European & Domestic cable

Special Cables: SOLARFLEX 102, Double Insulated, 0.6/1 kV, UV-Resistant
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
73740  SOLARFLEX 102 2X2.5 9.4 48.0 115.0 14
73604  SOLARFLEX 102 2X4 11.4 77.0 195.0 12
78164  SOLARFLEX 102 2X6 13.1 115.2 300.0 10
Technical Data European
  • Temperature Range
     Flexing
    -5°C to +80°C (+230° F to +176° F)
    Fixed
    -40°C to +80°C (-40° F to +176° F)
  • Nominal Voltage
    600/1000 V
  • Test Voltage, 50 Hz
    4000 V
  • Insulation Resistance
    Min. 200 MOhm/km
  • Minimum Bending Radius
     Flexing - approx. 8x cable Ø
    Fixed - approx. 6x cable Ø
Approvals
RoHSCE
Cable Construction
  • Conductor insulation TPE-O red, black
  • PUR jacket color black
  • Tinned copper, fine wire conductor to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • 1st insulation special PVC YI2 acc. to DIN VDE 0207 part 4
  • 2nd insulation special PVC YM2 acc. to DIN VDE 0207 part 5
Application
2-pole special cable for installation protected against short-circuit to earth and short-circuit, as a connecting cable from a module to an inverter.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
    Chemical Resistance - see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
