Cable Index | Servo, Feedback & Motor Cable | Servo Cable
PDF Printable PDF

European Servo, Feedback & Motor Cable:

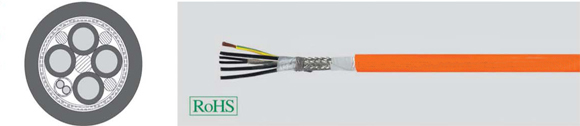

TOPSERV® 113

Highly Flexible, Drag Chain Servo Cable, 0.6/1 kV, PUR Jacket, Halogen-Free
According to SIEMENS Standard 6FX 8008- & 6FX 7008-

Sealcon, Inc, European & Domestic cable

TOPSERV 113 + 127, Highly Flexible Two Approvals Drag Chain Servo Cable, UL/CSA, VDE Reg. No., According to SIEMENS STandard 6FX 8008- also 6FX 7008-, Sealcon, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG

707228

 TOPSERV (4X1 + (2 x 0.5))

 10.5 88.0 161.0 16

707229

 TOPSERV (4X1.5 + (2x0.5))

 11.5 106 186.0 16

707230

 TOPSERV (4X2.5 (2 X 0.5))

 13.2 152 263.0 14

707231

 TOPSERV (4X4 + (2X1.0))

 14.6 229.0 337.0 12

707232

 TOPSERV (4X6 + (2X1.0))

 16.8 312.0 488.0 10

707746

 TOPSERV (4X10 + (2X1.0))

 20.1 508.0 688.0 8

707747

 TOPSERV (4X16 + (2X1.0))

23.8 751.0 1046.0 6

77376

 TOPSERV 113 (4X1+(2X0.75))

 11.5 134.0 250.0 17

700199

 TOPSERV 113 (4X1.5+(2X0.5))

 11.5 127.0 240.0 16

74506

 TOPSERV 113 (4X1.5 +(2X1))

 11.5 138.0 254.0 16

78948

 TOPSERV 113 (4X1.5+(2X1.5))

 11.6 148.0 228.0 16

74507

 TOPSERV 113 (4X2.5+(2X1))

 13.6 177.0 328.0 14

78949

 TOPSERV 113 (4X2.5+(2X1.5))

 13.4 187.0 346.0 14

74508

 TOPSERV 113 (4X4+(2X1))

 15.0 258.0 462.0 12

78950

 TOPSERV 113 (4X4+(2X1.5))

 14.8 268.0 393.0 12

74514

 TOPSERV 113 (4X6+(2X1))

 16.1 348.0 596.0 10

78951

 TOPSERV 113 (4X6+(2X1.5))

 16.8 358.0 519.0 10

74509

 TOPSERV 113 (4X10+(2X1))

 20.2 574.0 912.0 8

78952

 TOPSERV 113 (4X10+(2X1.5))

 19.4 584.0 849.0 8

74510

 TOPSERV 113 (4X16+(2X1))

 23.8 815.0 1194.0 6

75956

 TOPSERV 113 (4X16+(2X1.5))

 23.1 825.0 1260.0 6

74511

 TOPSERV 113 (4X25+(2X1))

 27.0 1273.0 1499.0 4

75957

 TOPSERV 113 (4X25+(2X1.5))

 26.6 1283.0 1620.0 4

74512

 TOPSERV 113 (4X35 +(2X1))

 31.9 1840.0 1992.0 2

75958

 TOPSERV 113 (4X35+(2X1.5))

 30.9 1850.0 2166.0 2

74513

 TOPSERV 113 (4X50 +(2X1))

 36.7 2530.0 2880.0 1

75959

 TOPSERV 113 (4X50+(2X1.5))

 34.0 2540.0 3039.0 1
Technical Data European
  • Special PUR drag chain cable acc. to UL AWM Style 20235 and CSA AWM
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
    Fixed Installation
    -50°C to +90°C (-58°F to +194°F)
  • Nominal Voltage
    Acc. to UL/CSA 1000 V
    Acc. to VDE
    Power supply conductors U0/U 600/1000 V
    Control conductors U0/U 300/500 V
  • A.C. Test Voltage, 50 Hz
    Power supply conductors 4000 V
    Control conductors 1000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing approx. 7.5x cable Ø
    Fixed Installation approx. 4x cable Ø
Approvals
RoHSUL CSA CE VDE desina PCT
Cable Construction
  • Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl. 6 and/or IEC 60228 cl. 6
  • TPE-E conductor insulation, halogen-free
  • Black power supply conductors with imprint U1, V2, W3
  • Green-yellow grounding
  • Black control conductors with imprint BR1, BR2
  • Shielding of the control conductors in pairs wrapped with plastic aluminum foil, copper drain-wire tinned and tinned copper braided shielding, approx. coverage 85%
  • Control conductors stranded in pairs and laid up in layers together with the power supply conductors with optimal lay length and stabilizing filler
  • Fleece wrapping facilitates sliding
  • Overall shielding from tinned copper braid, optimal. coverage approx. 85%
  • PUR outer jacket
  • Jacket color: Orange (RAL 2003) according to DESINA®
Application
The combination of feeder conductors with the control conductors for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. These requirements are met to a high degree by these cables. The cables have an additional overall shielding to ensure EMC compatibility, i.e. for protection against electromagnetic interference. Production is based on the specifications of established manufacturers of servo-drives and controls, as well as on various VDE, UL and CSA standards. Applications include machine, plant and robot construction, automation, drive, control and production engineering.
Attractive for export-oriented mechanical and system engineering.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PUR outer jacket: low adhesion, extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
  • PUR jacket: self-extinguishing and flame retardant, test method B acc. to DIN VDE 0472 part 804 and IEC 60332-1
  • Optimum compliance with requirements for electromagnetic interference (EMI) by approx. 85% coverage from the braided shielding
  • These cables are produced to high quality specifications and conform to the DESINA®-standard
Note
  • Brackets ( ) indicate shielding
  • For linear motors, these cables are also available with 0.5 mm2 signal conductors
  • DESINA®: Explanation: see introduction
  • SIEMENS product designations 6FX 8008- and 6FX 7008- are registered trademarks of Siemens AG, and are to be used only for purpose of comparison
Cable Accessories
  • Coming Soon!
