Cable Index | Servo, Feedback & Motor Cable | Servo Cable
PDF Printable PDF

European Servo, Feedback & Motor Cable:

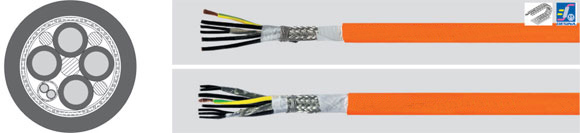

TOPSERV® 112/123

Highly Flexible, drag chain servo cable, 0,6/1 kV, PUR jacket, VDE-Reg.-No., Halogen-Free
According to SIEMENS Standard 6FX 5008-

Sealcon, Inc, European & Domestic cable

TOPSERV 112, TOPSERV 123, Highly Flexible, Drag Chain, Servo Cable, 0,6/1 kV, Halogen-Free, PVC Jacket, VDE Reg. No., Simens Standard 6FX8008-, Sealcon, European
Grey Cable
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG

74431

TOPSERV 112 (4X1,5 +(2X1))

 11.4 138.0 245.0 16
74438 TOPSERV 112 (4X1,5 +(2X1,5)) 12.2 148.0 265.0 16

78932

 TOPSERV 112(4X2,5+(2X1,0))

 13.8 177.0 329.0 14

78939

 TOPSERV 112(4X2,5+(2X1,5))

 14.5 187.0 339.0 14

74433

 TOPSERV 112 (4X4,0+2X1))

 15.0 258.0 462.0 12

78940

 TOPSERV 112 (4X4,0+2X1,5))

 15.5 268.0 475.0 12

74434

 TOPSERV 112 (4X6,0+(2X1))

 16.5 349.0 596.0 10

78941

 TOPSERV 112(4X6,0+(2X1,5))

 16.8 358.0 607.0 10

74435

 TOPSERV 112 (4X10 +(2X1))

 21.6 574.0 853.0 8

78942

 TOPSERV 112(4X10 +(2X1,5))

 21.6 584.0 865.0 8

74436

 TOPSERV 112 (4X16 +(2X1))

 24.8 815.0 1194.0 6

78952

 TOPSERV 112 (4X16 +(2X1.5))

 24.8 825.0 1205.0 6

74437

 TOPSERV 112 (4X25 +(2X1))

 26.5 1273.0 1499.0 4

75953

 TOPSERV 112 (4X25 +(2X1.5))

 26.5 1283.0 1510.0 4

74438

 TOPSERV 112 (4X35 +(2X1))

 32.0 1840.0 1992.0 2

75954

 TOPSERV 112 (4X35 +(2X1.5))

 32.0 1850.0 2005.0 2

74439

 TOPSERV 112 (4X50 +(2X1))

 35.8 2530.0 2880.0 1

75955

 TOPSERV 112 (4X50 +(2X1.5))

 35.8 2540.0 2890.0 1
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG

74440

TOPSERV 123 (4X1,5 + 2X (2X1))

 12.6 182.0 262.0 16
78943 TOPSERV 123 (4X1,5 + 2X (2X1,5)) 13.3 192.0 272.0 16

74441

 TOPSERV 123 (4X2,5 + 2X (2X1,0))

 15.0 229.0 336.0 14

78944

 TOPSERV 123 (4X2,5 + 2X (2X1,5))

 15.6 239.0 346.0 14

74442

 TOPSERV 123 (4X4,0 + 2X 2X1))

 15.7 312.0 475.0 12

78945

 TOPSERV 123 (4X4,0 + 2X 2X1,5))

 16.4 323.0 485.0 12

74443

 TOPSERV 123 (4X6,0 + 2X (2X1))

 18.2 437.0 606.0 10

78946

 TOPSERV 123 (4X6,0 + 2X (2X1,5))

 19.0 447.0 616.0 10

74444

 TOPSERV 123 (4X10 + 2X (2X1))

 22.4 609.0 905.0 8

78947

 TOPSERV 123 (4X10 + 2X (2X1,5))

 22.4 619.0 915.0 8

74445

 TOPSERV 123 (4X16 + 2X (2X1))

 25.5 894.0 1225.0 6

75982

 TOPSERV 123 (4X16 + 2X (2X1.5))

 25.2 904.0 1225.0 6

74446

 TOPSERV 123 (4X25 + 2X (2X1))

 28.0 1313.0 1584.0 4

75983

 TOPSERV 123 (4X25 + 2X (2X1.5))

 28.0 1323.0 1595.0 4

74447

 TOPSERV 123 (4X35 + 2X (2X1))

 31.0 1611.0 2185.0 2

75984

 TOPSERV 123 (4X35 + 2X (2X1.5))

 31.0 1621.0 2196.0 2

74448

 TOPSERV 123 (4X50 + 2X (2X1))

 36.0 2574.0 2974.0 1

75985

 TOPSERV 123 (4X50 + 2X (2X1.5))

 36.0 2585.0 2985.0 1
Technical Data European
  • Special PUR drag chain cable
  • Based on DIN VDE 0293, 0295, 0250, 0281
  • Temperature Range
    Flexing -40°C to +80°C
    Fixed Installation -50°C to +90°C
  • Nominal Voltage
     power supply conductors 600/1000 V
    control conductors 300/500 V
  • A.C. Test Voltage, 50 Hz
    power supply conductors 4000 V
    control conductors 300/500 V
  • Insulation Resistance
    min. 20 MOhm x km
  • Coupling Resistance
    max. 250 Ohm x km
  • Minimum Bending Radius
    approx. 7,5x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • TOPSERV® 112 (with 1 control pair)
    • Bare copper, ultra-fine wire acc. to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
    • TPE-E conductor insulation, halogen-free
    • Black power supply conductors with imprint U1, V2, W3
    • Green-yellow grounding conductor
    • Black control conductors with imprint BR1, BR2
    • Shielding of the control conductors in pairs wrapped with plastic aluminum film, copper drain-wire tinned and tinned copper braided shielding, approx. coverage 85%
    • Control conductors stranded in pairs and laid up in layers together with optimal lay lengths and stabilizing filler
    • Fleece wrapping facilitates sliding
    • PUR outer jacket
    • Jacket color orange (RAL 2003) according to DESINA®
  • TOPSERV® 123 (with 2 control pair)
    • Construction as per TOPSERV 112 except
    • 2 shielded control pairs
    • Black control conductors with white imprint 5-6 and 7-8
Application
The combination of feeder conductors with the control conductors for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high quality, reliable and long lasting cables. These requirements are met to a high degree by these cables. The cables have an additional overall shielding to ensure EMC compatibility, i.e. for protection against electromagnetic interference. They are manufactured based on specifications from leading manufactures of servo drives and control systems, as well as in compliance with various VDE standars.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR outer jacket, low adhesion, flame retardant, halogen-free, resistant to UV-, oil-, hydrolysis and microbial attack
  • PUR jacket: self extinguishing and flame retardant, test method B acc. to DIN VDE 0472 part 804 and IEC 60332-1
  • Optimum compliance with requirements for electromagnetic interference (EMI) by approx. 85% coverage from the braided shield
  • These cables are produced to high quality specifications and conform to the DESINA® standard
Note
  • Brackets ( ) indicate shielding
  • DESINA®: Explanation: see introduction
Cable Accessories
  • Coming Soon!
