Servo, Feedback & Motor Cables | TOPFLEX� 240-PVC/240-PUR Servo Cable

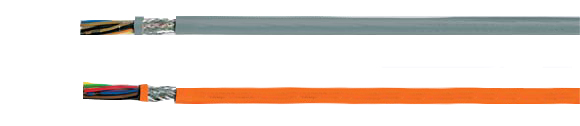

TOPFLEX® 240-PVC (Gray Jacket)

European Part-No.	Description & No. Conductors x cross-sec. mm²	Color Code No.	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km	AWG
22801	TOPFLEX® 240-PVC 4X2X0.38 + 4X0.5	1	10.5	77.0	125.0	21
22891	TOPFLEX® 240-PVC 4X2X0.38 + 4X0.5	3	10.5	77.0	125.0	21
22890	TOPFLEX® 240-PVC 4X2X0.38 + 4X0.5	2	10.5	77.0	125.0	21

TOPFLEX® 240-PUR (Orange Jacket)

European Part-No.	Description & No. Conductors x cross-sec. mm²	Color Code No.	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km	AWG
22827	TOPFLEX® 240-PUR 4X2X0.38 + 4X0.5	1	10.9	77.0	135.0	21
22892	TOPFLEX® 240-PUR 4X2X0.38 + 4X0.5	2	10.9	77.0	135.0	21

Technical Data

European

Special conductor and jacket compound from PVC
Conductor Resistance at +20°C/+68°F
0.38 mm² max. 47 Ohm/km
0.50 mm² max. 36 Ohm/km
Temperature Range
Flexing
-10°C to +70°C (+14°F to +158°F)
Fixed Installation
-30°C to +80°C (-22°F to +176°F)

Nominal Voltage 500 V
Test Voltage
Conductor/conductor 2000 V
Conductor/shielding 1000 V
Insulation Resistance
Min. 100 MOhm x km
Minimum Bending Radius
Approx. 10x cable Ø
Coupling Resistance
Max. 250 Ohm/km

Approvals

Cable Construction

TOPFLEX® 240-PVC
- Tinned copper conductor
  0.38 mm² 19x0.16 mm
  0.50 mm² 28x0.15 mm
- PVC conductor insulation
- Conductors stranded in pairs with optimal lay-length
- Film wrap
- Pairs stranded in layers with optimal lay-length
- Tinned copper braided shielding, coverage approx. 85%
- PVC outer jacket
- Jacket color: Gray (RAL 7000)
TOPFLEX®240-PUR
- Highly-flexible copper wire stranding
- PUR-outer jacket
- Jacket color: Orange (RAL 2003)

Application

TOPFLEX® 240-PVC
Used as a data and electronics cable in machines, plant installation, conveyor systems, etc.
TOPFLEX® 240-PUR
This cable type is available in the following types for use under extreme conditions in machine and plant engineering.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.

= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

PVC outer jacket: largely oil resistant
For chemical resistance, see technical information table
PUR outer jacket: particularly resistant to oil alkali as well as tear and abrasion proof
The materials used in manufacture are cadmium-free, contain no silicone and are free of substances harmful to the wetting properties of lacquers

Note

Color code No. 1 (Standard)
0.38 mm²: orange/red, violet/blue, brown/black, yellow/green
0.50 mm²: brown/black, yellow/red
Color code No. 2 (Alternative)
0.38 mm²: orange/red, violet/blue, brown/black, yellow/gray
0.50 mm²: brown/black, yellow/red
Color code No. 3 (To DIN 47100)
0.38 mm²: white/brown, green/yellow, gray/pink, blue/red
0.50 mm²: black/violet, gray-pink/red-blue
