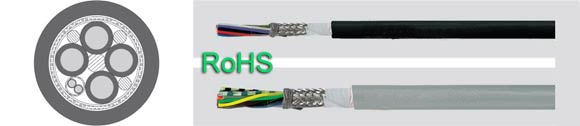

Tinned copper, fine wire conductor
to DIN VDE 0295 cl. 5 and IEC 60228
cl. 5
Special TPE conductor insulation
Conductor colors
bn, bu, bk +gnye/power conductors,
wh,bn/control conductors
Shielding of the control conductors
in pairs wrapped with aluminum-coated
polyester foil, tinned drain-wire
and tinned copper braid
Polyester foil wrapping over shielding
Control conductors stranded in pairs
and laid up in layers together with
the power supply conductors
Polyester foil wrapping
Overall shielding of tinned copper
braid, coverage approx. 85%
Special TPE jacket
Color gray RAL 7001
Part no. 79883
Construction as above, but
Conductor colors acc. to DIN 47100
Cable only with overall shielding
Application
THERMSERV® 150 These temperature-resistant
servo cables are used in production
processes wherever high temperatures
or chemical effects are anticipated,
e.g. in the area of heat sources or
in the chemical industry. EMI
= Electromagnetic
Interference
To optimize the EMI features we recommend
a large round contact of the copper braiding
on both ends. THERMSERV® 120 The
combination of feeder conductors
with the control conductors for
the braking function and
the thermal protection in
these cables is ideal. Precision
servomotors, as used today
in many areas of highly-automated
manufacturing processes,
call for high-quality, reliable
and long-lasting cables.
These requirements are met
to a high degree by these
cables. The cables have an
additional overall shielding
to ensure EMC compatibility,
i.e. for protection against
electromagnetic interference.
They are manufactured based
on specifications from leading
manufacturers of servo drives
and control systems, as well
as in compliance with various
VDE standards. =
The product is conformed
with the EC Low-Voltage Directive
73/23/EEC and 93/68/EEC.
Properties
THERMSERV® 150
Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approximately 85% coverage from
the braided shielding.
THERMSERV® 120
Through the use of special temperature
resistant TPE compounds, the cable
can be used at up to +120°C.
Note
To optimize the EMI features we recommend
a large round contact of the copper braiding
on both ends.
