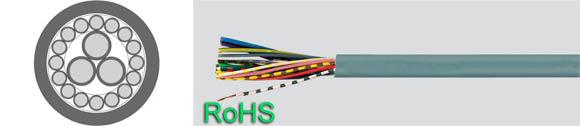

Servo, Feedback & Motor Cables | VERTEILERFLEX Sensor Actuator Cable

European Part-No.		Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Conductor Colors	Copper weight kg/km	Weight ca. kg/km	AWG
black	gray	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Conductor Colors	Copper weight kg/km	Weight ca. kg/km	AWG
76105	76115	VERTEILERFLEX 4X0.34	5.8	View Colors	18.0	58.0	22
76639	-	VERTEILERFLEX 4X0.34	8.7	View Colors	36.0	82.0	22
76107	73574	VERTEILERFLEX 6X0.34	9.1	View Colors	42.0	106.0	22
72961	73993	VERTEILERFLEX 8X0.34	9.1	View Colors	48.0	110.0	22
76109	74729	VERTEILERFLEX 8X0.34	9.1	View Colors	41.0	107.0	22
76110	72951	VERTEILERFLEX 8X0.34	9.1	View Colors	41.0	107.0	22
76108	76117	VERTEILERFLEX 8X0.34	8.8	View Colors	36.0	102.0	22
71254	76118	VERTEILERFLEX 11X0.34	10.0	View Colors	65.0	143.0	22
76111	76119	VERTEILERFLEX 12X0.34	10.3	View Colors	61.0	138.0	22
-	77642	VERTEILERFLEX 16X0.34	12.5	View Colors	89.0	193.0	22
76112	76120	VERTEILERFLEX 16X0.34	10.5	View Colors	74.0	170.0	22
76113	76121	VERTEILERFLEX 8X0.5	9.3	View Colors	68.0	136.0	20
76114	76122	VERTEILERFLEX 12X0.5	10.4	View Colors	87.0	160.0	20
-	79921	VERTEILERFLEX 14X0.5	12.3	View Colors	125.0	201.0	20
76640	-	VERTEILERFLEX 16X0.5	11.6	View Colors	106.0	183.0	20
74034	76123	VERTEILERFLEX 16X0.5	11.6	View Colors	106.0	183.0	20

European Part-No.		Jacket Material	Conductor Colors	Fine Wire	High Flex
black	gray	Jacket Material	Conductor Colors	Fine Wire	High Flex
76105	76115	PVC	brown, blue, black, white, green-yellow	X	-
76639	-	PVC/PUR	yellow, white, green, gray, green-yellow, brown, blue	-	X
76107	73574	PVC/PUR	white, green, yellow, gray, pink, red, brown, blue, green-yellow	-	X
72961	73993	PVC/PUR	gray, pink, red, black, violet, white, green, yellow, brown, blue, green-yellow	-	X
76109	74729	PVC	white, green, yellow, gray, pink, red, black, violet, blue, brown	X	-
76110	72951	PUR	white, green, yellow, gray, pink, red, black, violet, blue, brown	-	X
76108	76117	PVC/PUR	white, green, yellow, gray, pink, red, black, violet, blue, brown	-	X
71254	76118	PVC	black with number 1-2 + DIN 47100	X	-
76111	76119	PVC/PUR	pink, yellow-brown, red, gray-pink, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow	-	X
-	77642	PVC/PUR	blue with number 1-2 + green-yellow, green-pink, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow, pink, yellow-brown, red, white-gray, black, gray-brown, violet	-	X
76112	76120	PVC/PUR	brown, gray-pink, red-blue, white-green, brown-green, white-yellow, yellow-brown, gray-brown, blue, white, green, yellow, gray, pink, red, black, violet, green-yellow	-	X
76113	76121	PUR	brown, blue, green-yellow, gray-pink, red-blue, white-green, brown-green, white, green, yellow, gray	-	X
76114	76122	PUR	gray-pink, red-blue, white-green, brown-green, white-yellow, yellow-brown, white, green, yellow, gray, pink, red, brown, blue, green-yellow	-	X
-	79921	PVC	black with printing BR1, BR2, BL1, BL, numbers 1-14	X	-
76640	-	PVC/PUR	gray, brown-green, green, red-blue, gray-pink, white, white-green, white-gray, black, white-yellow, pink, yellow, red, yellow-brown, violet, gray-brown, green-yellow, brown, blue	-	X
74034	76123	PUR	gray-pink, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow, pink, yellow-brown, red, white-green, black, violet, brown, blue, green-yellow	-	X

Technical Data

European

Temperature Range
Flexing
-5°C to +80°C (+23°F to +176°F)
Fixed Installation
-30°C to +80°C (-22°F to +176°F)
Operating Voltage
U₀/U 300/500 V

A.C. Test Voltage, 50 Hz
2000 V
Minimum Bending Radius
Highly flexible approx. 7.5x cable Ø
Flexible approx. 15x cable Ø

Approvals

Cable Construction

PVC cables
- Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 5 and/or cl. 6 and/or IEC 60228 cl. 5 and cl. 6
- PVC conductor insulation
- Conductor colors see below
- Special PVC jacket
PUR cables
- Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
- PVC conductor insulation
- Conductor colors see below
- PUR jacket

Application

These cables are used in connector systems for sensors and actuators.
In combination with injected circular connectors and installed sensor-actuator boxes, they constitute an important connecting element between the periphery and the PLC in production systems.
The assembled cables offer an attractive opportunity to reduce costs, not only in the field of automation technology, but also in the entire manufacturing industry.

= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties

PVC cables
- Extensively oil resistant
  Chemical Resistance - see table Technical Information
- PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
PUR cables
- Low adhesion, extremely abrasion resistant, resistant to hydrolysis and microbial attack
Special feature
- The cables with the highly flexible stranded conductor, cl. 6, are suitable for drag chain applications
- The types with PVC/PUR jacket material have a PVC inner jacket, with a PUR jacket applied over it by means of coextrusion

Note

All cables can be delivered with UL/CSA approval and copper shield
Further conductor numbers, cross-sections and jacket colors available on request
