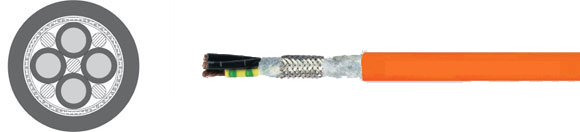

Jacket color orange (RAL 2003) according
to DESINA®
Application
Supply cable optimized
especially for the supply of DNC
motors. These cables are specially
designed for use in power drag chains,
handling equipment, robotics,
tooling machinery, processing
and manufacturing machinery.
The optimized outside diameter,
reduced weight and excellent
torsion characteristics facilitate
use in multi-shift operation
with extreme alternating bending
stress cycles.
Particularly recommended as a
supply cable between frequency
converters and servomotors. EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends. =
The product is conformed with
the EC Low-Voltage Directive
73/23/EEC and 93/68/EEC.
Properties
PUR outer jacket: low adhesion, flame
retardant, extremely abrasion resistant,
halogen-free, resistant to UV, oil, hydrolysis
and microbial attack
PUR jacket self-extinguishing and flame
retardant, test method B acc. to VDE
0472 part 804 and IEC 60332-1
Optimized insulation materials ensure
resistance to oils (including mineral
oils), greases, coolants, hydraulic fluids
as well as many alkalis and solvents.
Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approx. 85% coverage from the braided
shielding.
These cables are produced to high quality
specifications and conform to the DESINA®standard.
Special feature:
These motor supply cables are designed
for extremely cramped spaces in electrical
enclosures.
The special conductor insulation makes it
easier to install and connect the conductors
Note
For extreme applications extending
beyond standard solutions we recommend
that you request our questionnaire, which
has been especially designed for energy
supply systems.
Please observe applicable installation
regulations for use in energy supply
chains.
