European TOPGEBER 510 Servo Feedback Motor Cable| Sealcon

< < <

European Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Jacket Color	Copper Weight kg/km	Weight ca. kg/km	AWG
707417	(4 x 2 x 0,38 + 4 x 0,5)	8.9	Green	70.3	117	-
707389	(3X2X0.14 + 4X0.14 + 2X0.5)	8.8	Green	58.0	118.9	-
707390	(3 x (2 x 0,14) + 4 x 0,14 + 4 x 0,25 + 2 x 0,5)	9.6	Green	70.7	137.7	-
803672	(2 x 2 x 0,22 + 1 x 2 x 0,34)	6.9	Green	38.0	61.0	-
802471	(2 x 2 x 0,22)	6.9	Green	35.0	71.0	-
705461	(4 x 2 x 0,25 + 2 x 0,5)	8.4	Orange	50.0	99.0	-
707392	(4 x 2 x 0,25 + 2 x 1,0)	8.8	Orange	64.0	119.0	-
707394	(4 x 2 x 0,14 + 4 x 1,0 + (4 x 0,14))	9.7	Orange	86.0	149.0	-
707077	3 x (2 x 0,14) + (2 x 0,5)	9.3	Green	46.0	95.0	-
707397	4 x (2 x 0,14) + (2 x 1,0)	11.0	Green	70.0	145.0	-
707398	3 x (2 x 0,14) + (3 x 0,14)	9.2	Green	41.0	102.0	-

Technical Data

European

Special PVC feedback cable acc. to UL AWM style 20233 and CSA
Temperature Range
Flexing
-00°C to +60°C (32°F to +140°F)
Fixed Installation
-20°C to +80°C (-4°F to +176°F)
Nominal Voltage
acc. to UL 300 V
0,14-0,34 mm²: 350 V
0,5-1,0 mm²: 500 V

A.C. Test Voltage, 50 Hz
Conductor/conductor 2000 V
Conductor/shielding 1000 V
Minimum Bending Radius
flexing approx. 12x cable ø
fixed installation approx. 6x cable ø
max. 100.000 cycles

Approvals

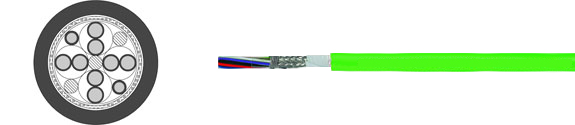

Cable Construction

Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl. 6
Conductor insulation of special polypropylene
Conductor colors on request
Overall shielding of tinned copper wire braid with tinned drain wire, coverage approx. 85%
Polyester foil
PVC outer jacket
Jacket color green (RAL 6018) acc. to DESINA® or orange
with meter marking, change-over in 2009
color code:
Part No. 78081
0,5 mm² whrd, whye, whbk, whbu
Part No. 79613
0,5 mm� wh, bn

Application

Low cost alternativ to Motorcables with PUR Jacket for fix instalation or occasional moving applications. These low-capacitance incremental encoder cables or position feedback cables transmit the control pulses for positioning and operating characteristics of servomotors. These cables are used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties

Low capacitance
Oilresistant PVC outer jacket
PVC jacket flame retardant according to VDE 0482-332-1-1 to -1-3
Optimum compliance with requirements for electromagnetic compatibility (EMC) by approx. 85% coverage from the braided shield
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
These cables are produced to high quality specifications and conform to the DESINA® standard

Note

The corresponding Motor- and Servocables with PVC Jacket can be found under heading TOPSERV® 112 PVC
The Encodercables for application in cable track with PUR Jacket can be found under heading TOPGEBER® 512 PUR
Brackets () indicate shielding.
SIEMENS product designations 6FX 5008-... are registered trademarks of Siemens AG, and are to be used only for purposes of comparison.
INDRAMAT product designations INK- are registered trademarks of Bosch-Rexroth AG, and are to be used only for purposes of comparison.
LENZE product designations are registered trademarks of LENZE AG, and are to be used only for purposes of comparison.
Desina®: Explanation: see introduction.
