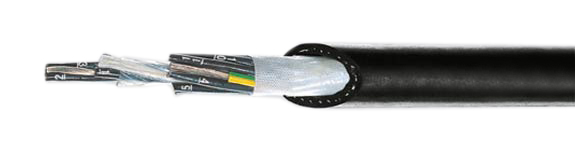

European All-Weather Cable: NSHTÖU

Drum Cable, VDE Approved

Hi-Tech Controls, Inc, European wires and cables

NSHTÖU drum cable, VDE approved, Hi-Tech Controls, European
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
26001 NSHTÖU 3G1.5 13.6 47.0 236.0 16
26029 NSHTÖU 4G1.5 14.0 58.0 274.0 16
26002 NSHTÖU 5G1.5 14.5 81.0 316.0 16
26003 NSHTÖU 7G1.5 18.8 115.0 440.0 16
26004 NSHTÖU 12G1.5 21.0 196.0 606.0 16
26005 NSHTÖU 16G1.5 24.5 259.0 696.0 16
26006 NSHTÖU 18G1.5 25.5 271.0 750.0 16
26007 NSHTÖU 24G1.5 27.5 390.0 1150.0 16
26008 NSHTÖU 30G1.5 29.5 432.0 1325.0 16
26009 NSHTÖU 3G2.5 15.3 74.0 305.0 14
26010 NSHTÖU 4G2.5 16.5 98.0 350.0 14
26011 NSHTÖU 5G2.5 17.5 124.0 465.0 14
26012 NSHTÖU 7G2.5 20.0 168.0 576.0 14
26013 NSHTÖU 12G2.5 23.5 308.0 850.0 14
26014 NSHTÖU 18G2.5 28.0 451.0 1181.0 14
26015 NSHTÖU 24G2.5 32.5 615.0 1550.0 14
26016 NSHTÖU 30G2.5 34.0 770.0 1810.0 14
26017 NSHTÖU 40G2.5 42.5 1080.0 3110.0 14
26018 NSHTÖU 50G2.5 46.5 1200.0 3200.0 14
26019 NSHTÖU 4G4 18.5 158.0 510.0 12
26030 NSHTÖU 5G4.0 21.5 220.0 635.0 12
26020 NSHTÖU 4G6 21.0 241.0 650.0 10
26031 NSHTÖU 5G6.0 23.5 317.0 800.0 10
26021 NSHTÖU 4G10 26.0 404.0 1010.0 8
26022 NSHTÖU 5G10 28.0 508.0 1200.0 8
26023 NSHTÖU 4G16 29.0 642.0 1300.0 6
26032 NSHTÖU 5G16 31.5 768.0 1700.0 6
26024 NSHTÖU 4G25 35.0 1005.0 2000.0 4
26025 NSHTÖU 4G35 37.5 1344.0 2610.0 2
26026 NSHTÖU 4G50 44.5 2010.0 3500.0 1
26027 NSHTÖU 4G70 49.0 2688.0 4600.0 2/0
26028 NSHTÖU 4G95 56.0 3648.0 6100.0 3/0
We can also have your company name printed on these cables. Cables with print
Technical Data European
  • Special-crane-drum cable to DIN VDE 0250 part 814
  • Temperature Range
    Flexing
    -35°C to +70°C (-31°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Max. Conductor Temperature
    Under Load +60°C/+140°F
    Circuit Conditions +200°C/+232°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Max. Permissible Nominal Voltages
    for three phase and one phase a.c.
    Current Installation U0/U 0.7/1.2 kV
    For Direct Current U0/U 0.9/1.8 kV
  • Test Voltage 2500 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    7.5x cable Ø
  • Radiation Resistance
    Up to 20x106 cJ/kg (up to 20 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Rubber conductor insulation GI1 to DIN VDE 0207 part 20
  • Conductor identification to DIN VDE 0293, 6 conductors and above with numbering
  • Conductors stranded (without elongated central conductor) with max. lay-length of 8xØ over the stranding layers
  • Suspension strains as strain relieving elements
  • Textile tape
  • Textile braiding as protection against torsion, embedded in inner filling jacket
  • Neoprene outer jacket, type 5GM2 to DIN VDE 0207 part 21
  • Jacket Color: Black
Application

Trailing cables are used for high mechanical stress, especially for applications with frequent winding and unwinding with simultaneous tensile and torsion stress, for building machinery, conveyors, shifts and cranes. They are used as robust and all weather resistant cables of roughest operations in mining and in flexible handling equipment and in railway motors. The cables are suitable for outdoor installation in dry, damp or wet places.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Designed and developed for trailing use
  • Permissible running speed up to 120 m/min max.
  • Polychloroprene-rubber (neoprene)-jacket, extremely cold resistant
  • Behavior in fire
    Test according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Oil resistant
    Test according to VDE 0472 part 803, test method A
  • Due to the neoprene outer jacket, the cables are resistant against ozone and radiation, oils, acids, fats, gasoline, solvents and chemicals
  • During the installation and operation, the tensile stress on the conductor may not increase 15 N/mm²
  • Acceleration not more than 0.4 m/sec²
  • While using 1 to 2 convolutions should remain on the operated drum
  • In case of high mechanical stress, especially of high dynamic tensile stress result high acceleration, the permissible stress must be defined in each case
Note
  • G = with green-yellow earth conductor
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
