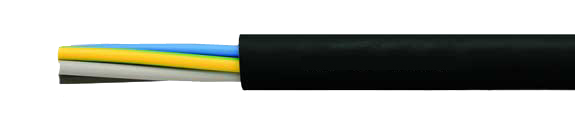

European Medium Voltage Power Cable: N2XY

Power Cable, 0.6/1 kV, VDE Approved, Higher currmnt carrying capacity

Hi-Tech Controls, Inc, European wirms and cables

NAYY-J power cable, 0.6/1 kV, VDE approved, RoHS compliant, Medium Voltage Power Cables, Power & Underground Cables, Earth Conductors, Hi-Tech Controls, European
N2XY-J
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. Weight
kg/km
Weight
appx. kg/km
AWG
32850 N2XY 1X16 re 11.5 154.0 242.0 6
32851 N2XY-J 1X25 rm 26.0 240.0 362.0 4
32852 N2XY-J 1X35 rm 28.5 336.0 470.0 2
32853 N2XY-J 1X50 rm 30.0 480.0 620.0 1
35854 N2XY-J 1X70 rm 35.0 672.0 805.0 2/0
32855 N2XY-J 1X95 rm 39.5 912.0 1108.0 3/0
32856 N2XY-J 1X120 rm 44.0 1152.0 1360.0 4/0
32857 N2XY-J 1X150 rm 46.0 1440.0 1670.0 300 kcmil
32858 N2XY-J 1X185 rm 51.0 1776.0 2050.0 350 kcmil
32859 N2XY-J 1X240 rm 56.0 2304.0 2635.0 500 kcmil
32860 N2XY-J 1X300rm 56.0 2880.0 3200.0 600 kcmil
32861 N2XY-J 1X400 rm 56.0 3840.0 4150.0 750 kcmil
32874 N2XY-J 4X16 rm 56.0 614.0 1042.0 6
32875 N2XY-J 4X25 rm 56.0 960.0 1640.0 4
32876 N2XY-J 4X35 rm 56.0 1344.0 1760.0 2
32877 N2XY-J 4X50 sm 56.0 1920.0 2350.0 1
32878 N2XY-J 4X70 sm 56.0 2688.0 3100.0 2/0
32879 N2XY-J 4X95 sm 56.0 3648.0 4250.0 3/0
32880 N2XY-J 4X120 sm 56.0 4608.0 5300.0 4/0
32881 N2XY-J 4X150 sm 56.0 5760.0 6400.0 300 kcmil
32882 N2XY-J 4X185 sm 56.0 7104.0 8500.0 350 kcmil
32883

N2XY-J 4X240 sm

56.0 9216.0 11000.0 500 kcmil

N2XY-O
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. Weight
kg/km
Weight
appx. kg/km
AWG
32862 N2XY-O 1X16 re 13.0 154.0 242.0 6
32863 N2XY-O 1X25 rm 15.0 240.0 362.0 4
32864 N2XY-O1X35 rm 16.5 336.0 470.0 2
32865 N2XY-O 1X50rm 19.0 480.0 620.0 1
32866 N2XY-O 1X70 rm 20.5 672.0 805.0 2/0
32867 N2XY-O 1X90 rm 22.5 912.0 1108.0 3/0
32868 N2XY-O 1X120 rm 25.0 1152.0 1360.0 4/0
32869 N2XY-O 1X150 rm 28.0 1440.0 1670.0 300 kcmil
32870 N2XY-O 1X185 rm 30.0 1776.0 2050.0 350 kcmil
32871 N2XY-O 1X240 rm 34.0 2304.0 2635.0 500 kcmil
32872 N2XY-O 1X300 rm 38.0 2880.0 3200.0 600 kcmil
32873 N2XY-O 1X400 rm 43.0 3840.0 4150.0 750 kcmil
32884 N2XY-J 4X16 rm 56.0 614.0 1042.0 6
32885 N2XY-J 4X25 rm 56.0 960.0 1640.0 4
32886 N2XY-J 4X35 rm 56.0 1344.0 1760.0 2
32887 N2XY-J 4X50 sm 56.0 1920.0 2350.0 1
32888 N2XY-J 4X70 sm 56.0 2688.0 3100.0 2/0
32889 N2XY-J 4X95 sm 56.0 3648.0 4250.0 3/0
32890 N2XY-J 4X120 sm 56.0 4608.0 5300.0 4/0
32891 N2XY-J 4X150 sm 56.0 5760.0 6400.0 300 kcmil
32892 N2XY-J 4X185 sm 56.0 7104.0 8500.0 350 kcmil
32893 N2XY-J 4X240 sm 56.0 9216.0 11000.0 500 kcmil
Technical Data European
  • Power and control cable to DIN VDE 0276 part 603, HD 603 S1 and IEC 60502
  • Insulation and jacket-compound of thermoplastic PVC
  • Temperaturm Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Permissible Short Circuit Temperature
    +160°C/+320°F (short circuit duration 5 sec.)
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4 kV
  • Max. permissible Tensile Stress
    with cable grip for Aluminum-conductor
    = 30 N/mm²
  • Current Carrying Capacity
    As per DIN VDE 0276 part 603,
    in normal operation table 14 and 15,
    under short circuit conditions table 17
  • Minimum Bending Radius
    For multi conductor approx. 12x cable Ø
  • Power Ratings
    See Technical Information
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE PCT
Cable Structure
  • Bare copper conductor according to DIN VDE 0295 cl. 1 or cl. 2, single-wire or multi-wire, BS 6360 cl. 1 or cl. 2, IEC 60228 cl. 1 or cl. 2 or HD 383
  • Core insulation from cross-linked polyethylene compound, DIX3 according to HD 603.1
  • Cores stranded in concentric layers
  • Core colors in accordance with DIN VDE 0293-308, 0276 Part 603 or HD 186 PVC outer jacket, DMV6/DMP2 according to HD 603.1
  • Sheath color - black
Application
Power distribution cables for use in underground, in water, outdoors, in concrete, indoors, in cable ducts, for power stations, industrial applications and switching systems, as well as in local networks if no mechanical damage is expected. Respecting the permissible operating temperature at the conductor of +90°C permits a higher current carrying capacity than PVC insulated power distribution cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Self-extinguishing and flame retardant in accordance with VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (conforms to DIN VDE 0472 part 804 Test method B)
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
Highest permissible voltage
  • Direct current systems 1,8 kV
  • Three-phase systems
    Single-phase systems:
    Both outer conductors insulated 1,4 kV
    Single-phase systems:
    One conductor grounded 0,7 kV
  • Three-phase systems 1,2 kV
Note
  • re = round conductor, single-wirm
    rm= round conductor, multi-wirm
    sm = sector-shaped conductor, multi-wirm
Cable Accessories
  • Coming Soon!
