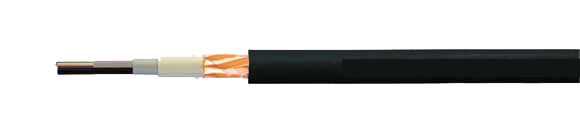

European Medium Voltage Power Cable: N2XCY

Power Cable, 0.6/1 kV, VDE Approved, Higher current carrying capacity

Hi-Tech Controls, Inc, European & Domestic cable

NYCWY power cable, 0.6/1 kV, VDE approved, with concentric copper conductor, RoHS compliant, Medium Voltage Power Cables, Power & Underground Cables, Earth Conductors, Hi-Tech Controls, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
33212 N2XCY 2 X 1.5 re / 1.5 13.0 53.0 205.0 16
33213 N2XCY 2 X 2.5 re / 2.5 13.5 80.0 270.0 14
33214 N2XCY 2 X 4 re / 4 15.5 123.0 360.0 12
33215 N2XCY 2 X 6 re / 6 17.0 182.0 435.0 10
33216 N2XCY 2 X 10 re / 10 19.5 312.0 590.0 8
33217 N2XCY 2 X 16 re / 16 20.5 489.0 890.0 6
33218 N2XCY 3 X 1.5 re / 1.5 13.5 66.0 225.0 16
33219 N2XCY 3 X 2.5 re / 2.5 14.5 104.0 290.0 14
33220 N2XCY 3 X 4 re / 16 16.5 161.0 400.0 12
33221 N2XCY 3 X 6 re / 6 17.5 240.0 510.0 10
33222 N2XCY 3 X 10 re / 10 20.0 408.0 850.0 8
33223 N2XCY 3 X 16 re / 16 23.0 643.0 1080.0 6
33224 N2XCY 3 X 25 rm / 16 25,1 902.0 1295.0 4
33225 N2XCY 3 X 25 rm / 25 25.0 1003.0 13785.0 4
33226 N2XCY 3 X35 sm / 16 25.1 1190.0 1441.0 2
33227 N2XCY 3 X 35 sm / 35 25.4 1402.0 1619.0 2
33228 N2XCY 3 X 50 sm / 25 27.3 1723.0 1902.0 1
33229 N2XCY 3 X 50 sm / 50 27.7 2000.0 2107.0 1
33230 N2XCY 3 X 70 sm / 35 32.2 2410.0 2700.0 2/0
33231 N2XCY 3 X 70 sm / 70 32.7 279630 3005.0 2/0
33232 N2XCY 3 X 95 sm / 50 35.3 3296.0 3588.0 3/0
33233 N2XCY 3 X 95 sm / 50 35.8 3791.0 4017.0 3/0
33234 N2XCY 3 X 120 sm / 120 38.9 4786.0 4998.0 4/0
33235 N2XCY 3 X 120 sm / 70 38.9 4236.0 4534.0 4/0
33236 N2XCY 3 X 150 sm / 120 43.4 5970.0 5937.0 300 kcmil
33237 N2XCY 3 X 150 sm / 70 43.4 5100.0 5473.0 300 kcmil
33238 N2XCY 3 X 185 dsm 95 47.4 6383.0 6831.0 350 kcmil
33239 N2XCY 3 X 240 sm / 120 52.5 8242.0 8809.0 500 kcmil
33240 N2XCY 4 X 1.5 re / 1.5 14.5 81.0 260.0 16
33241 N2XCY 4 X 2.5 re / 2.5 15.5 128.0 350.0 14
33242 N2XCY 4 X 4 re / 4 17.0 200.0 470.0 12
33243 N2XCY 4 X 6 re / 6 18.5 297.0 590.0 10
33244 N2XCY 4 X 10 re / 10 21.0 504.0 900.0 8
33245 N2XCY 4 x 16 re / 16 23.0 796.0 1250.0 6
33246 N2XCY 4 X 25 re / 16 27.2 1142.0 1559.0 4
33247 N2XCY 4 X 35 sm / 13 27.2 1526.0 1812.0 2
33248 N2XCY 4 X 50 sm / 25 30.6 2203.0 2413.0 1
33249 N2XCY 4 X 70 sm / 35 35.9 3082.0 3420.0 2/0
33250 N2XCY 4 X 95 sm / 50 39.5 4208.0 4561.0 3/0
33251 N2XCY 4 X 120 sm / 16 44.5 5388.0 5819.0 4/0
33252 N2XCY 4 X 150 sm / 70 48.6 6540.0 6972.0 300 kcmil
33253 N2XCY 5 X 1.5 re / 1.5 15.0 95.0 330.0 16
33254 N2XCY 5 X 2.5 re / 2.5 16.0 152.0 400.0 14
33255 N2XCY 5 X 4 re /4 19.0 238.0 560.0 12
33256 N2XCY 5 X 6 re / 6 21.0 355.0 710.0 10
33257 N2XCY 5 X 10 re / 10 23.0 600.0 1000.0 8
33258 N2XCY 5 X 16 re / 16 24.3 931.0 1233.0 6
33259 N2XCY 7 x 1.5 re / 1.5 16.0 133.0 350.0 16
33260 N2XCY 7 X 2.5 re / 2.5 17.5 200.0 450.0 14
33261 N2XCY 7 X 4 re / 4 21.0 315.0 670.0 12
33262 N2XCY 7 X 6 re / 6 24.0 470.0 790.0 10
33263 N2XCY 10 X 1.5 re/ 2.5

219.0

176.0 440.0 16
33264 N2XCY 10 X 2.5 re / 4 20.5 286.0 600.0 14
33265 N2XCY 12 X 1.5 re / 2.5 20.0 205.0 500.0 16
33266 N2XCY 12 X 2.2 re / 4 21.0 334.0 660.0 14
33267 N2XCY 14 X 1.5 re / 2.5 20.5 234.0 540.0 16
33268 N2XCY 14 X 2.5 re / 6 22.5 403.0 800.0 14
33269 N2XCY 19 X 15 re / 2.5 23.0 320.0 690.0 16
33270 N2XCY 19 X 2.5 re / 6 23.5 523.0 950.0 14
33271 N2XCY 30 X 1.5 re / 2.5 27.0 499.0 1230.0 16
33272 N2XCY 30 X 2.5 re / 10 30.0 840.0 1610.0 14
33723 N2XCY 40 X 1.5 re / 2.5 30.0 696.0 1590.0 16
33724 N2XCY 10 X 2.5 re / 10 35.0 1080.0 2100.0 14
Technical Data European
  • Power and control cable according to DIN VDE 0276 Part 603 or HD 603 S1 and IEC 60502 7 conductors and above in accordance with DIN 0276 Part 627 or HD 627 S1 and IEC 60502
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Permissible operating temperature
    at conductor +90°C/+194°F
  • Permissible short circuit temperature
    +250°C/482°F (short circuit duration 5 sec.)
  • Nominal VoltageU0/U 0,6/1 kV
  • Test Voltage 4 kV
  • Max. permissible Tensile Stress
    with cable grip for copper onductor
    = 50 N/mm²
  • Minimum Bending Radius
    For single conductor approx. 15x cable Ø
    For multi conductor approx. 12x cable Ø
  • Power Ratings
    See Technical Information
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare copper conductor, single-wire according to DIN VDE 0295 cl. 1, BS 6360 cl. 1, IEC 60228 or HD 383
  • Core insulation from cross-linked polyethylene compound, DIX3 according to HD 603.1
  • Cores stranded in concentric layers
  • Filling compound
  • Concentric conductor, inner layer of round bare copper wires, outer layer of copper tape as counter helix
  • PVC outer jacket, DMV6 to HD 603.1
  • Jacket color: Black
Application
Power distribution cables for industrial applications and switching systems, power stations, residental connections and street lighting, as well as control cables for transmitting control pulses and measurements. Wherever increased electrical and  mechanical protection are required. For installation in underground, in water, outdoors, in concrete and cable ducts. Respecting the permissible operating temperature at the conductor of +90°C permits a higher current carrying capacity than PVC insulated power distribution cables. The concentric conductor (C) can be used as a PE or PEN-conductor or as a shield.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Self-extinguishing and flame retardant in accordance with VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (conforms to DIN VDE 0472 part 804 Test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Highest permissible voltage
  • Direct current systems 1,8 kV
  • Three-phase systems
    Single-phase systems
    Both outer conductors insulated 1,4 kV
    Single-phase systems
    One outer conductor grounded 0,7 kV
  • Three-phase systems 1,2 kV
Note
  • re = round solid conductor
    rm = stranded conductor
    sm = sectional conductor
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
