European Medium Voltage Power Cable:
Ground Conductors ESUY and ESY

Highly Flexible

Hi-Tech Controls, Inc, European & Domestic cable

Earth Conductors ESUY and ESY high flexible, RoHS compliant, Medium Voltage Power Cables, Power & Underground Cables, Earth Conductors, Hi-Tech Controls, European
Type ESUY (HOOV-D), highly flexible
European Part-No. Description & No. Conductors x cross-sec. mm2 Cond. make-up n x wire Ø Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
28930 ESUY 16 4200 x 0.07 8.3 194.0 230.0 6
28931 ESUY 25 3192 x 0.10 9.5 280.0 335.0 4
28932 ESUY 35 4480 x 0.10 11.2 415.0 475.0 2
28933 ESUY 50 6383 x 0.10 13.2 585.0 670.0 1
28934 ESUY 70 8918 x 0.10 15.6 820.0 905.0 2/0
28935 ESUY 95 12100 x 0.10 17.4 1090.0 1220.0 3/0
28936 ESUY 120 15300 x 0.10 19.8 1360.0 1505.0 4/0
28937 ESUY 150 19152 x 0.10 23.4 1650.0 1940.0 300 kcmil
28938 ESUY 185 23580 x 0.10 26.6 2150.0 2390.0 350 kcmil
28939 ESUY 240 30600 x 0.10 30.2 2750.0 3090.0 500 kcmil
Type ESY, flexible
European Part-No. Description & No. Conductors x cross-sec. mm2 Cond. make-up n x wire Ø Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
28940 ESY 16 525 x 0.20 8.4 155.0 185.0 6
28941 ESY 25 798 x 0.20 9.8 240.0 270.0 4
28942 ESY 35 1120 x 0.20 11.4 336.0 390.0 2
28943 ESY 50 1617 x 0.20 13.8 480.0 575.0 1
28944 ESY 70 2254 x 0.20 16.4 672.0 810.0 2/0
28945 ESY 95 3087 x 0.20 18.2 912.0 1080.0 3/0
28946 ESY 120 3822 x 0.20 20.1 1152.0 1320.0 4/0
28947 ESY 150 4802 x 0.20 23.0 1440.0 1680.0 300 kcmil
Technical Data European
ESUY (H00V-D)
  • Grounding cable of braid wires over conductor strands in adapted to DIN VDE 0283 part 3, and EN 61138
  • Conductor Resistance at +20°C/+68°F
    According DIN VDE 0283 part 3
  • Temperature Range
    -5°C to +70°C (+23°F to +158°F)
  • Test Voltage 2000 V
  • Spark Test (during winding)
    16 mm² to 35 mm² - 5000 V
    50 mm² to 70 mm² - 6000 V
    95 mm² to 240 mm² - 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimal Bending Radius
    Approx. 12x cable Ø
ESY
  • Grounding cable in adapted to DIN VDE 0283 part 3 and EN 61138
  • For further technical data from conductor resistance - see ESUY (H00V-D)
Code-Designation for Power Cables with PVC or XLPE Insulation
Design Identification of Design Explanations
Conductor N According to VDE Standard
(No abbreviation for copper conductor)
A Aluminum conductors
Y Insulation of thermoplastic Polyvinyl chloride (PVC)
2X Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding C Concentric conductors of copper wires and copper tape, helically wounded
CW Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
CE Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding S Shielding of copper wires and copper tape, helically wounded
SE Shielding of copper wires and copper tape over each individual conductor, helically wounded
(F) Longitudinally water-proof shielding
Armor B Armor of steel tape
F Armor of galvanized flat steel wires
G Counter helix of galvanized steel tape
Jacket K Lead jacket
Outer Jacket Y PVC jacket
2Y PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
  -J Cables with green-yellow (green-natural) conductor are marked with protective conductor
-O Cables without green-yellow (green-natural) conductor are marked without protective conductor
Approvals
RoHS VDE

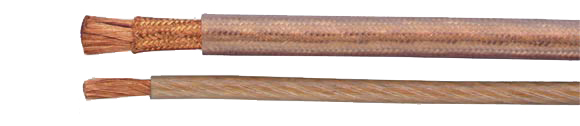

Cable Construction
ESUY (H00V-D)
  • Bare copper, extra fine wire conductors, high flexible
  • Braiding of bare copper wires over the stranded copper conductor
  • PVC-jacket, transparent (glass clear), compound type TM2 according DIN VDE 0281 part 1
ESY
  • Bare copper, fine wire conductors
  • Copper conductors of stranded wires
  • PVC-jacket, transparent (glass clear), compound type TM2 according DIN VDE 0281 part 1
Application

These high flexible ground conductors are used for grounding of portable equipment and short-circuiting. They perform a protective function in repair work of high voltage power supply companies as EVU, in railway systems, failing current equipment, alternating current systems and in networks of transmission and distribution. These cables offer special characteristics with low weight, high flexibility to a wide temperature range and their good behavior under high temperatures. The protective jacket over the conductor assures the essential function for protection against mechanical and chemical stresses.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • For these cable types no nominal voltages are mentioned, as these are: only used for grounding performances
  • For further requirements see European Norm EN 61230 and DIN VDE 0683 part 100: Live working - Portable equipment for grounding and grounding
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
