European Medium Voltage Power Cable:
Gas Station Cables

(N)YYÖ-J, 0.6/1 kV, with BAM-Test Report

Hi-Tech Controls, Inc, European & Domestic cable

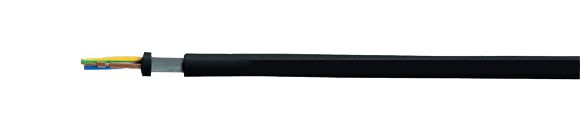

Gas Station Cables (N)YYÖ-J, 0.6/1 kV, with BAM-test report, RoHS compliant, Medium Voltage Power Cables, Power & Underground Cables, Earth Conductors, Hi-Tech Controls, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
32592 Gas Station Cable (N)YYÖ-J 2X1.5 11.0 29.0 180.0 16
32593 Gas Station Cable (N)YYÖ-J 3X1.5 11.5 43.0 225.0 16
32594 Gas Station Cable (N)YYÖ-J 4X1.5 12.0 58.0 260.0 16
32595 Gas Station Cable (N)YYÖ-J 5X1.5 13.0 72.0 280.0 16
32596 Gas Station Cable (N)YYÖ-J 7X1.5 15.5 101.0 370.0 16
Technical Data European
  • Power and data transmission cable based on DIN VDE 0271
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Permissible Operating Temperature
    at the conductor +70°C/+158°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4 kV
  • Max. permissible Tensile Stress
    by cable grip for copper conductor
    = 50 N/mm²
  • Minimum Bending Radius
    Approx. 12x cable Ø
Code-Designation for Power Cables with PVC or XLPE Insulation
Design Identification of Design Explanations
Conductor N According to VDE Standard
(No abbreviation for copper conductor)
A Aluminum conductors
Y Insulation of thermoplastic Polyvinyl chloride (PVC)
2X Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding C Concentric conductors of copper wires and copper tape, helically wounded
CW Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
CE Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding S Shielding of copper wires and copper tape, helically wounded
SE Shielding of copper wires and copper tape over each individual conductor, helically wounded
(F) Longitudinally water-proof shielding
Armor B Armor of steel tape
F Armor of galvanized flat steel wires
G Counter helix of galvanized steel tape
Jacket K Lead jacket
Outer Jacket Y PVC jacket
2Y PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
  -J Cables with green-yellow (green-natural) conductor are marked with protective conductor
-O Cables without green-yellow (green-natural) conductor are marked without protective conductor
Approvals
RoHSCE
Cable Construction
  • Plain copper conductor, solid according to DIN VDE 0295 cl. 1, BS 6360 cl. 1 and IEC 60228 cl. 1
  • Conductor insulation of PVC, compound YI3 according to DIN VDE 0207 part 4
  • Concentric lay-up of conductors
  • Conductor identification according to DIN VDE 0293-308
  • PVC outer jacket black1) according to DIN VDE 0207 part 5
Application

Power and data transmission cables are used for outdoor and underground applications, in water and in concrete provided mechanical damage can be ruled out. These cables are installed for applications such as gas stations and refineries where resistance to oils and fuels is required.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Oil and fuel-resistant according to DIN ISO 6722
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • VDE 0298 part 1 shall be observed.
Note
  • BAM = Bundesanstalt für Materialprüfung (Federal Institute for Materials, Research and Testing)
  • 1) Version with blue outer jacket available upon request.
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
