Data Transmission Cables for Gas Stations and Refineries with BAM Test Report
Sealcon, Inc, European & Domestic cable
European Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
AWG
32597
A-LiY(StE)YÖ 4X0.75
9.0
38.0
105.0
18
32633
A-LiY(StE)YÖ 7X0.75
10.3
60.0
150.0
18
32599
A-LiY(StE)YÖ 8X0.75
11.0
68.0
169.0
18
32634
A-LiY(StE)YÖ 12X0.75
12.9
99.0
223.0
18
Technical
Data
European
Oil and fuel resistant
data transmission cables
Temperature Range Flexing
-5°C
to +70°C (+23°F
to +158°F)
Fixed Installation
-30°C
to +70°C (-22°F
to +158°F)
Nominal Voltage 200
V
Insulation Resistance Min. 100 MOhm
x km
Minimum Bending
Radius Approx.
12x cable Ø
Radiation Resistance Up
to 80x106 cJ/kg
(up to 80 Mrad)
Code-Designation for
Power Cables with PVC or XLPE Insulation
Design
Identification
of Design
Explanations
Conductor
N
According
to VDE Standard
(No abbreviation for copper conductor)
A
Aluminum conductors
Y
Insulation of thermoplastic
Polyvinyl chloride (PVC)
2X
Insulation cross-linked
Polyethylene (XLPE)
Concentric
Conductor, Shielding
C
Concentric
conductors of copper wires and copper tape,
helically wounded
CW
Concentric conductors
of copper wires in wave conal formation
and and copper tape, helically wounded
CE
Concentric conductors
of copper wires and copper tape over each
individual conductor, helically wounded
Shielding
S
Shielding of copper wires
and copper tape, helically wounded
SE
Shielding of copper wires
and copper tape over each individual conductor,
helically wounded
(F)
Longitudinally water-proof
shielding
Armor
B
Armor of steel tape
F
Armor of galvanized flat
steel wires
G
Counter helix of galvanized
steel tape
Jacket
K
Lead jacket
Outer
Jacket
Y
PVC jacket
2Y
PE jacket
Cable
for U0/U 0.6/1 kV are
additionally designated with
-J
Cables with green-yellow
(green-natural) conductor are marked with
protective conductor
-O
Cables without green-yellow
(green-natural) conductor are marked without
protective conductor
Approvals
Cable

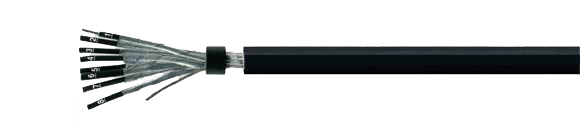

Construction
Tinned copper conductor, 7 strands
Conductor insulation of special PVC,
according to DIN VDE 0207
Black conductors with continuous white
numbering
Each single conductor shielded with
aluminum/ polyester foil, metal
layer at outside
Shielded conductors in layers with
optimal lay-length screenings of
each conductor make contact mutually
Drain wire, tinned copper 0.75
mm²
7 strands
Overall conductor-filler
Special PVC-outer jacket, oil
and fuel resistant
Jacket color: Black
Application
These
data transmission cables,
oil and fuel resistant, are
used for internal and external
wiring applications ar gas
pumps, for data transmission
from the pumps to the cash
desk and in the installation
of the video surveillance
systems. These cables are
also installed directly underground
and are resistant to UV radiation.
Special shielding over individual
conductors guarantee good overall
shielding and ensure an interference-free
transmission of control pulses. =
The product is conformed
with the EC Low-Voltage
Directive 2006/95/EG.
Properties
Tests
Compound characteristic
according to DIN VDE 0207
Oil and fuel resistance
of jacket
according to BAM-Specification
Oil-resistance of jacket:
DIN ISO 6722 part 1, 4.11,
DIN VDE 0472 part 803 test
method B
Fuel-resistance of jacket:
DIN ISO 6722 part 1, 4.12
PVC self-extinguishing
and flame retardant according
to VDE 0482-332-1-2, DIN
EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472
part 804 test method B)
Note
AWG sizes are approximate equivalent
values. The actual cross-section
is in mm².
BAM = Bundesanstalt
für Materialprüfung (Federal Institute for Materials, Research and Testing)
