European Medium Voltage Power Cable: NA2XSY 6/10 kV, 12/20 kV, 18/30 kV

XLPE insulated, Aluminum Conductor, Single Conductor, Shielded, PVC Jacket

Hi-Tech Controls, Inc, European & Domestic cable

NA2XSY 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, Aluminum conductor, single conductor, shielded, PVC jacket, RoHS compliant, Medium Voltage Power Cables, Power Cablesup to 30 kV, Hi-Tech Controls, European
Nominal Voltage
6/10 kV
6/10 kV
12/20 kV
12/20 kV
18/30 kV
18/30 kV
European Part-No. Description & No. Conductors x cross-sec. mm2, Nominal Voltage Operation Voltage max. Insul. Thick-ness mm Jacket Thick-ness mm Outer
Dia. min.-max.
Copper Weight
kg/km
Alu weight kg/km Weight ca. kg/km AWG
32440 NA2XSY 6/10kV 1X50 rm/16
12 3.4 2.5 24.0 - 29.0 182.0 145.0 780.0 1
32441 NA2XSY 6/10kV 1X70 rm/16 12 3.4 2.5 26.0 - 31.0 182.0 203.0 875.0 2/0
32442 NA2XSY 6/10kV 1X95 rm/16 12 3.4 2.5 27.0 - 32.0 182.0 276.0 990.0 3/0
32443 NA2XSY 6/10kV 1X120 rm/16 12 3.4 2.5 29.0 - 34.0 182.0 348.0 1110.0 4/0
32444 NA2XSY 6/10kV 1X150 rm/16 12 3.4 2.5 30.0 - 35.0 182.0 435.0 1240.0 300 kcmil
32445 NA2XSY 6/10kV 1X150 rm/25 12 3.4 2.5 30.0 - 35.0 283.0 435.0 1310.0 300 kcmil
32447 NA2XSY 6/10kV 1X185 rm/25 12 3.4 2.5 32.0 - 37.0 283.0 537.0 1460.0 350 kcmil
32446 NA2XSY 6/10kV 1X185 rm/16 12 3.4 2.5 32.0 - 37.0 182.0 537.0 1405.0 350 kcmil
32449 NA2XSY 6/10kV 1X240 rm/25 12 3.4 2.5 34.0 - 39.0 283.0 696.0 1660.0 500 kcmil
32448 NA2XSY 6/10kV 1X240 rm/16 12 3.4 2.5 34.0 - 39.0 182.0 696.0 1615.0 500 kcmil
32450 NA2XSY 6/10kV 1X300 rm/25 12 3.4 2.5 36.0 - 41.0 283.0 870.0 1910.0 600 kcmil
32451 NA2XSY 6/10kV 1X400 rm/35 12 3.4 2.5 40.0 - 45.0 394.0 1160.0 2315.0 750 kcmil
32452 NA2XSY 6/10kV 1X500 rm/35 12 3.4 2.5 43.0 - 48.0 394.0 1450.0 2750.0 1000 kcmil

32453 NA2XSY 12/20kV 1X50 rm/16
24 5.5 2.5 28.0 - 33.0 182.0 145.0 950.0 1
32454 NA2XSY 12/20kV 1X70 rm/16 24 5.5 2.5 30.0 - 35.0 182.0 203.0 1110.0 2/0
32455 NA2XSY 12/20kV 1X95 rm/16 24 5.5 2.5 31.0 - 36.0 182.0 276.0 1220.0 3/0
32456 NA2XSY 12/20kV 1X120 rm/16 24 5.5 2.5 33.0 - 38.0 182.0 348.0 1310.0 4/0
32457 NA2XSY 12/20kV 1X150 rm/16 24 5.5 2.5 34.0 - 39.0 182.0 435.0 1460.0 300 kcmil
32458 NA2XSY 12/20kV 1X150 rm/25 24 5.5 2.5 34.0 - 39.0 283.0 435.0 1520.0 300 kcmil
32459 NA2XSY 12/20kV 1X185 rm/16 24 5.5 2.5 36.0 - 41.0 182.0 537.0 1660.0 350 kcmil
32460 NA2XSY 12/20kV 1X185 rm/25 24 5.5 2.5 36.0 - 41.0 283.0 537.0 1720.0 350 kcmil
32462 NA2XSY 12/20kV 1X240 rm/25 24 5.5 2.5 39.0 - 44.0 283.0 696.0 1910.0 500 kcmil
32461 NA2XSY 12/20kV 1X240 rm/16 24 5.5 2.5 39.0 - 44.0 182.0 696.0 1860.0 500 kcmil
32463 NA2XSY 12/20kV 1X300 rm/25 24 5.5 2.5 41.0 - 46.0 283.0 870.0 2220.0 600 kcmil
32464 NA2XSY 12/20kV 1X400 rm/35 24 5.5 2.5 44.0 - 49.0 394.0 1160.0 2620.0 750 kcmil
32465 NA2XSY 12/20kV 1X500 rm/35 24 5.5 2.5 47.0 - 52.0 394.0 1450.0 3030.0 1000 kcmil

European Part-No. Description & No. Conductors x cross-sec. mm2, Nominal Voltage Operation Voltage max. Insul. Thick-ness mm Jacket Thick-ness mm Outer
Dia. min.-max.
Copper Weight
kg/km
Alu weight kg/km Weight ca. kg/km AWG
32466 NA2XSY 18/30kV 1X50 rm/16
36 8.0 2.5 33.0 - 38.0 182.0 145.0 1260.0 1
32467 NA2XSY 18/30kV 1X70 rm/16 36 8.0 2.5 35.0 - 40.0 182.0 203.0 1360.0 2/0
32468 NA2XSY 18/30kV 1X95 rm/16 36 8.0 2.5 36.0 - 41.0 182.0 276.0 1510.0 3/0
32469 NA2XSY 18/30kV 1X120 rm/16 36 8.0 2.5 38.0 - 43.0 182.0 348.0 1610.0 4/0
32471 NA2XSY 18/30kV 1X150 rm/25 36 8.0 2.5 39.0 - 44.0 283.0 435.0 1810.0 300 kcmil
32470 NA2XSY 18/30kV 1X150 rm/16 36 8.0 2.5 39.0 - 44.0 182.0 435.0 1760.0 300 kcmil
32472 NA2XSY 18/30kV 1X185 rm/16 36 8.0 2.5 41.0 - 46.0 182.0 537.0 1960.0 350 kcmil
32473 NA2XSY 18/30kV 1X185 rm/25 36 8.0 2.5 41.0 - 46.0 283.0 537.0 2020.0 350 kcmil
32475 NA2XSY 18/30kV 1X240 rm/25 36 8.0 2.5 43.0 - 48.0 283.0 696.0 2260.0 500 kcmil
32474 NA2XSY 18/30kV 1X240 rm/16 36 8.0 2.5 43.0 - 48.0 182.0 696.0 2210.0 500 kcmil
32476 NA2XSY 18/30kV 1X300 rm/25 36 8.0 2.5 46.0 - 51.0 283.0 870.0 2560.0 600 kcmil
32477 NA2XSY 18/30kV 1X400 rm/35 36 8.0 2.5 49.0 - 54.0 394.0 1160.0 2960.0 750 kcmil
32478 NA2XSY 18/30kV 1X500 rm/35 36 8.0 2.6 52.0 - 57.0 394.0 1450.0 3460.0 1000 kcmil
Technical Data European
  • XLPE-insulated power cables to DIN VDE 0276 part 620, HD 620 S1 and IEC 60502
  • Temperature Range
    During installation up to -5°C/+23°F
  • Operating Temperature
    Max. +90°C/+194°F
  • Short Circuit Temperature +250°C/+482°F
    (Short circuit duration up to 5 sec.)
  • Nominal Voltages
    U0/U 6/10 kV, 12/20 kV, 18/30 kV
  • Operating Voltages for
    6/10 kV = max. 12 kV
    12/20 kV = max. 24 kV
    18/30 kV = max. 36 kV
  • Test Voltages for
    6/10 kV = 15 kV
    12/20 kV = 30 kV
    18/30 kV = 45 kV
  • Minimum Bending Radius
    During installation max. 15x cable Ø
  • Power Ratings Table
    See Technical Information
Code-Designation for Power Cables with PVC or XLPE Insulation
Design Identification of Design Explanations
Conductor N According to VDE Standard
(No abbreviation for copper conductor)
A Aluminum conductors
Y Insulation of thermoplastic Polyvinyl chloride (PVC)
2X Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding C Concentric conductors of copper wires and copper tape, helically wounded
CW Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
CE Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding S Shielding of copper wires and copper tape, helically wounded
SE Shielding of copper wires and copper tape over each individual conductor, helically wounded
(F) Longitudinally water-proof shielding
Armor B Armor of steel tape
F Armor of galvanized flat steel wires
G Counter helix of galvanized steel tape
Jacket K Lead jacket
Outer Jacket Y PVC jacket
2Y PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
  -J Cables with green-yellow (green-natural) conductor are marked with protective conductor
-O Cables without green-yellow (green-natural) conductor are marked without protective conductor
Approvals
RoHSVDE

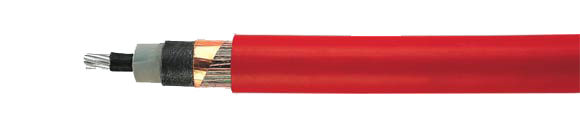

Cable Construction
  • Circular bare aluminum-conductor of stranded wires to HD 383
  • Inner semi-conducting coating
  • Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
  • Outer extrusion of semi-conducting coating spliced with the insulation
  • Wrapping of conductive material
  • Shield: Braiding of copper wires with one or two tapes applied helically
  • Wrapping
  • PVC outer jacket, compound DMV6 to HD 620.1
  • Jacket color: Red
Application

Suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switch boards and power stations. Due to the good laying characteristic, this cable can also be installed in difficult in difficult line guide ways.
The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assures a construction free of partial discharges with high operational reliabilities.

Properties
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Installation Notes
    To guarantee an optimum on operating reliability the extruded semi-conductive layer is spliced with the insulation for long duration. For this reason, we recommend a peeling tool for installation.
Note
  • Further dimensions available on request.
Cable Accessories
  • Coming Soon!
