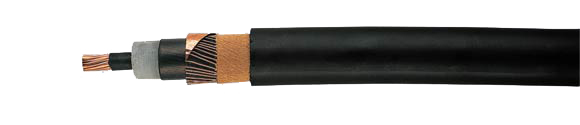

European Medium Voltage Power Cable: N2XS2Y 6/10 kV, 12/20 kV, 18/30 kV

XLPE Insulated, Copper Conductor, Single Conductor, Shielded, PVC Jacket



Hi-Tech Controls, Inc, European & Domestic cable

N2XS2Y 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, Copper conductor, single conductor, shielded, PVC jacket, RoHS compliant, Medium Voltage Power Cables, Power Cables up to 30 kV, Hi-Tech Controls, European
Nominal Voltage
6/10 kV
6/10 kV
12/20 kV
12/20 kV
18/30 kV
18/30 kV
European Part-No. Description, Nominal Voltage & No. Cond. x cross-sec. mm2 Operation Voltage max.  Insulation Thickness mm Jacket Thickness mm Outer
Dia. min.-max.
Copper Weight
kg/km
Weight
ca. kg/km
AWG
32480 N2XS2Y 6/10 kV 1X35 rm/16
12 3.4 2.5 23.0 - 28.0 518.0 910.0 2
32481 N2XS2Y 6/10 kV 1X50 rm/16 12 3.4 2.5 24.0 - 29.0 662.0 990.0 1
32482 N2XS2Y 6/10 kV 1X70 rm/16 12 3.4 2.5 26.0 - 31.0 860.0 1205.0 2/0
32483 N2XS2Y 6/10 kV 1X95 rm/16 12 3.4 2.5 26.0 - 32.0 1098.0 1520.0 3/0
32484 N2XS2Y 6/10 kV 1X120 rm/16 12 3.4 2.5 28.0 - 34.0 1340.0 1760.0 4/0
32485 N2XS2Y 6/10 kV 1X150 rm/16 12 3.4 2.5 29.0 - 35.0 1622.0 2020.0 300 kcmil
32486 N2XS2Y 6/10 kV 1X150 rm/25 12 3.4 2.5 29.0 - 35.0 1725.0 2130.0 300 kcmil
32487 N2XS2Y 6/10 kV 1X185 rm/16 12 3.4 2.5 31.0 - 37.0 1958.0 2360.0 350 kcmil
32488 N2XS2Y 6/10 kV 1X185 rm/25 12 3.4 2.5 31.0 - 37.0 2059.0 2470.0 350 kcmil
32489 N2XS2Y 6/10 kV 1X240 rm/16 12 3.4 2.5 33.0 - 39.0 2486.0 2960.0 500 kcmil
32490 N2XS2Y 6/10 kV 1X240 rm/25 12 3.4 2.5 33.0 - 39.0 2587.0 3020.0 500 kcmil
32491 N2XS2Y 6/10 kV 1X300 rm/25 12 3.4 2.5 36.0 - 41.0 3163.0 3630.0 600 kcmil
32492 N2XS2Y 6/10 kV 1X400 rm/35 12 3.4 2.5 40.0 - 45.0 4234.0 4560.0 750 kcmil
32493 N2XS2Y 6/10 kV 1X500 rm/35 12 3.4 2.5 43.0 - 48.0 5194.0 5580.0 1000 kcmil

32494 N2XS2Y 12/20 kV 1X35 rm/16
24 5.5 2.5 27.0 - 32.0 518.0 960.0 2
32495 N2XS2Y 12/20 kV 1X50 rm/16 24 5.5 2.5 28.0 - 33.0 662.0 1160.0 1
32496 N2XS2Y 12/20 kV 1X70 rm/16 24 5.5 2.5 30.0 - 35.0 854.0 1410.0 2/0
32497 N2XS2Y 12/20 kV 1X95 rm/16 24 5.5 2.5 31.0 - 36.0 1094.0 1670.0 3/0
32498 N2XS2Y 12/20 kV 1X120 rm/16 24 5.5 2.5 33.0 - 38.0 1334.0 1960.0 4/0
32500 N2XS2Y 12/20 kV 1X150 rm/25 24 5.5 2.5 34.0 - 39.0 1723.0 2310.0 300 kcmil
32499 N2XS2Y 12/20 kV 1X150 rm/16 24 5.5 2.5 34.0 - 39.0 1622.0 2220.0 300 kcmil
32502 N2XS2Y 12/20 kV 1X185 rm/25 24 5.5 2.5 36.0 - 41.0 2059.0 2670.0 350 kcmil
32501 N2XS2Y 12/20 kV 1X185 rm/16 24 5.5 2.5 36.0 - 41.0 1958.0 2620.0 350 kcmil
32504 N2XS2Y 12/20 kV 1X240 rm/25 24 5.5 2.5 39.0 - 44.0 2587.0 3270.0 500 kcmil
32503 N2XS2Y 12/20 kV 1X240 rm/16 24 5.5 2.5 39.0 - 44.0 2486.0 3160.0 500 kcmil
32505 N2XS2Y 12/20 kV 1X300 rm/25 24 5.5 2.5 41.0 - 46.0 3163.0 3880.0 600 kcmil
32506 N2XS2Y 12/20 kV 1X400 rm/35 24 5.5 2.5 44.0 - 49.0 4234.0 4820.0 750 kcmil
32507 N2XS2Y 12/20 kV 1X500 rm/35 24 5.5 2.5 47.0 - 52.0 5194.0 5860.0 1000 kcmil

32508 N2XS2Y 18/30 kV 1X50 rm/16
36 8.0 2.5 32.0 - 38.0 662.0 1410.0 1
32509 N2XS2Y 18/30 kV 1X70 rm/16 36 8.0 2.5 34.0 - 40.0 854.0 1660.0 2/0
32510 N2XS2Y 18/30 kV 1X95 rm/16 36 8.0 2.5 35.0 - 41.0 1094.0 1970.0 3/0
32511 N2XS2Y 18/30 kV 1X120 rm/16 36 8.0 2.5 37.0 - 43.0 1334.0 2220.0 4/0
32512 N2XS2Y 18/30 kV 1X150 rm/25 36 8.0 2.5 38.0 - 44.0 1723.0 2650.0 300 kcmil
32513 N2XS2Y 18/30 kV 1X185 rm/25 36 8.0 2.5 40.0 - 46.0 2059.0 2980.0 350 kcmil
32514 N2XS2Y 18/30 kV 1X240 rm/25 36 8.0 2.5 42.0 - 48.0 2587.0 3570.0 500 kcmil
32515 N2XS2Y 18/30 kV 1X300 rm/25 36 8.0 2.5 45.0 - 51.0 3163.0 4220.0 600 kcmil
32516 N2XS2Y 18/30 kV 1X400 rm/35 36 8.0 2.5 48.0 - 54.0 4234.0 5170.0 750 kcmil
32517 N2XS2Y 18/30 kV 1X500 rm/35 36 8.0 2.5 51.0 - 57.0 5194.0 6260.0 1000 kcmil
Technical Data European
  • XLPE-insulated power cables to IEC 60502, DIN VDE 0276 part 620, HD 620 S1
  • Temperature Range
    During installation up to -20°C/-4°F
  • Operating Temperature
    Max. +90°C/194°F
  • Short Circuit Temperature
    +250°C/482°F (short circuit duration up to 5 sec.)
  • Nominal Voltages
    U0/U 6/10 kV, 12/20 kV, 18/30 kV
  • Operating Voltages for
    6/10 kV = max. 12 kV
    12/20 kV = max. 24 kV
    18/30 kV = max. 36 kV
  • Test Voltages for
    6/10 kV = 15 kV
    12/20 kV = 30 kV
    18/30 kV = 45 kV
  • Minimum Bending Radius
    During installation max. 15x cable Ø
  • Power Ratings Table
    See Technical Information
Code-Designation for Power Cables with PVC or XLPE Insulation
Design Identification of Design Explanations
Conductor N According to VDE Standard
(No abbreviation for copper conductor)
A Aluminum conductors
Y Insulation of thermoplastic Polyvinyl chloride (PVC)
2X Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding C Concentric conductors of copper wires and copper tape, helically wounded
CW Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
CE Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding S Shielding of copper wires and copper tape, helically wounded
SE Shielding of copper wires and copper tape over each individual conductor, helically wounded
(F) Longitudinally water-proof shielding
Armor B Armor of steel tape
F Armor of galvanized flat steel wires
G Counter helix of galvanized steel tape
Jacket K Lead jacket
Outer Jacket Y PVC jacket
2Y PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
  -J Cables with green-yellow (green-natural) conductor are marked with protective conductor
-O Cables without green-yellow (green-natural) conductor are marked without protective conductor
Approvals
RoHSVDE
Cable Construction
  • Circular bare copper conductor of stranded wires to HD 383
  • Inner semi-conducting coating
  • Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
  • Outer extrusion of semi-conducting coating spliced with the insulation
  • Wrapping of conductive material
  • Shield: Braiding of copper wires with one or two tapes applied helically
  • Wrapping
  • PE-outer jacket black, compound DMP2 to HD 620.1
  • Jacket color: Black
Application
Suitable for indoor installation and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switch-boards and power stations. The PE-outer jacket is resistant to high mechanical stress for laying the cables. This PE-jacket is not flame-resistant (does not conform the test method B, as per VDE 0472 part 804).
The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assures a construction free of partial discharges with high operational reliability.
Properties
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Installation Notes
    To guarantee an optimum on operating reliability the extruded semi-conductive layer is spliced with the insulation for long duration. For this reason, we recommend a peeling tool for installation.
Note
  • Further dimensions available on request.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
