European Medium Voltage

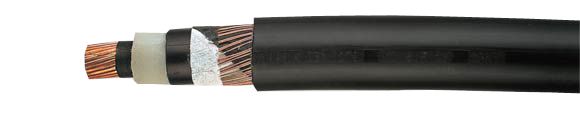

Power Cable: N2XS(F)2Y 6/10 kV, 12/20 kV, 18/30 kV

XLPE Insulated, Copper Conductor, Single Conductor, Longitudinally Water-Tight, Shielded, PVC Jacket

Hi-Tech Controls, Inc, European & Domestic cable

N2XS(F)2Y, 6/10 kV, 12/20 kV, 18/30 kV, XLPE insulated, Copper conductor, single conductor, longitudinally water-tight, shielded, PVC jacket, RoHS compliant, Medium Voltage Power Cables, Power Cables up to 30 kV, Hi-Tech Controls, European
Nominal Voltage
6/10 kV
6/10 kV
12/20 kV
12/20 kV
18/30 kV
18/30 kV
European Part-No. Description, Nominal Voltage & No. Cond. x cross-sec. mm2 Operation Voltage max.  Insulation Thickness mm Shield Cross-sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
32560 N2XS(F)2Y 6/10kV 1X35 rm/16
12 3.4 16.0 26.0 518.0 1050.0 2
32561 N2XS(F)2Y 6/10kV 1X50 rm/16 12 3.4 16.0 28.0 662.0 1150.0 1
32562 N2XS(F)2Y 6/10kV 1X70 rm/16 12 3.4 16.0 30.0 854.0 1460.0 2/0
32563 N2XS(F)2Y 6/10kV 1X95 rm/16 12 3.4 16.0 31.0 1094.0 1700.0 3/0
32564 N2XS(F)2Y 6/10kV 1X120 rm/16 12 3.4 16.0 32.0 1334.0 2030.0 4/0
32565 N2XS(F)2Y 6/10kV 1X150 rm/25 12 3.4 25.0 34.0 1723.0 2350.0 300 kcmil
32566 N2XS(F)2Y 6/10kV 1X185 rm/25 12 3.4 25.0 36.0 2059.0 2700.0 350 kcmil
32567 N2XS(F)2Y 6/10kV 1X240 rm/25 12 3.4 25.0 38.0 2587.0 3300.0 500 kcmil
32568 N2XS(F)2Y 6/10kV 1X300 rm/25 12 3.4 25.0 40.0 3163.0 3900.0 600 kcmil
32569 N2XS(F)2Y 6/10kV 1X400 rm/35 12 3.4 35.0 44.0 4234.0 4850.0 750 kcmil
32570 N2XS(F)2Y 6/10kV 1X500 rm/35 12 3.4 35.0 47.0 5194.0 6000.0 1000 kcmil

32571 N2XS(F)2Y 12/20kV 1X35 rm/16
24 5.5 16.0 31.0 518.0 1210.0 2
32572 N2XS(F)2Y 12/20kV 1X50 rm/16 24 5.5 16.0 33.0 662.0 1400.0 1
32573 N2XS(F)2Y 12/20kV 1X70 rm/16 24 5.5 16.0 34.0 854.0 1550.0 2/0
32574 N2XS(F)2Y 12/20kV 1X95 rm/16 24 5.5 16.0 36.0 1094.0 1800.0 3/0
32575 N2XS(F)2Y 12/20kV 1X120 rm/16 24 5.5 16.0 37.0 1334.0 2150.0 4/0
32576 N2XS(F)2Y 12/20kV 1X150 rm/25 24 5.5 25.0 39.0 1723.0 2400.0 300 kcmil
32577 N2XS(F)2Y 12/20kV 1X185 rm/25 24 5.5 25.0 41.0 2059.0 2850.0 350 kcmil
32578 N2XS(F)2Y 12/20kV 1X240 rm/25 24 5.5 25.0 43.0 2587.0 3250.0 500 kcmil
32579 N2XS(F)2Y 12/20kV 1X300 rm/25 24 5.5 25.0 45.0 3163.0 3850.0 600 kcmil
32580 N2XS(F)2Y 12/20kV 1X400 rm/35 24 5.5 35.0 48.0 4234.0 4900.0 750 kcmil
32581 N2XS(F)2Y 12/20kV 1X500 rm/35 24 5.5 35.0 52.0 5194.0 6100.0 1000 kcmil

32582 N2XS(F)2Y 18/30kV 1X50 rm/16
36 8.0 16.0 37.0 662.0 1700.0 1
32583 N2XS(F)2Y 18/30kV 1X70 rm/16 36 8.0 16.0 38.0 854.0 1950.0 2/0
32584 N2XS(F)2Y 18/30kV 1X95 rm/16 36 8.0 16.0 40.0 1094.0 2300.0 3/0
32585 N2XS(F)2Y 18/30kV 1X120 rm/16 36 8.0 16.0 42.0 1334.0 2600.0 4/0
32586 N2XS(F)2Y 18/30kV 1X150 rm/25 36 8.0 25.0 43.0 1723.0 3000.0 300 kcmil
32587 N2XS(F)2Y 18/30kV 1X185 rm/25 36 8.0 25.0 45.0 2059.0 3350.0 350 kcmil
32588 N2XS(F)2Y 18/30kV 1X240 rm/25 36 8.0 25.0 47.0 2587.0 4100.0 500 kcmil
32589 N2XS(F)2Y 18/30kV 1X300 rm/25 36 8.0 25.0 50.0 3163.0 4800.0 600 kcmil
32590 N2XS(F)2Y 18/30kV 1X400 rm/35 36 8.0 35.0 53.0 4234.0 5750.0 750 kcmil
32591 N2XS(F)2Y 18/30kV 1X500 rm/35 36 8.0 35.0 56.0 5194.0 6700.0 1000 kcmil
Technical Data European
  • XLPE-insulated power cables to DIN VDE 0276 part 620, HD 620 S1 and IEC 60502
  • Temperature Range
    During installation up to -20°C/-4°F
  • Operating Temperature
    Max. +90°C/194°F
  • Short Circuit Temperature
    +250°C/482°F (short circuit duration up to 5 sec.)
  • Nominal Voltages
    U0/U 6/10 kV, 12/20 kV, 18/30 kV
  • Operating Voltages for
    6/10 kV = max. 12 kV
    12/20 kV = max. 24 kV
    18/30 kV = max. 36 kV
  • Test Voltages for
    6/10 kV = 15 kV
    12/20 kV = 30 kV
    18/30 kV = 45 kV
  • Minimum Bending Radius
    During installation max. 15x cable Ø
  • Power Ratings Table
    See Technical Information
Code-Designation for Power Cables with PVC or XLPE Insulation
Design Identification of Design Explanations
Conductor N According to VDE Standard
(No abbreviation for copper conductor)
A Aluminum conductors
Y Insulation of thermoplastic Polyvinyl chloride (PVC)
2X Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding C Concentric conductors of copper wires and copper tape, helically wounded
CW Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
CE Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding S Shielding of copper wires and copper tape, helically wounded
SE Shielding of copper wires and copper tape over each individual conductor, helically wounded
(F) Longitudinally water-proof shielding
Armor B Armor of steel tape
F Armor of galvanized flat steel wires
G Counter helix of galvanized steel tape
Jacket K Lead jacket
Outer Jacket Y PVC jacket
2Y PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
  -J Cables with green-yellow (green-natural) conductor are marked with protective conductor
-O Cables without green-yellow (green-natural) conductor are marked without protective conductor
Approvals
RoHS
Cable Construction
  • Circular bare copper conductor of stranded wires to DIN VDE 0295 cl. 2 and IEC 60228 cl. 2
  • Inner semi-conducting coating
  • Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
  • Outer extrusion of semi-conducting coating spliced with the XLPE-insulation
  • Longitudinally water-tight, conductive wrapping
  • Shield: Braiding of copper wires with one or two tapes applied helically
  • Longitudinally water-tight wrapping
  • PE-outer jacket, compound DMP2 to HD 620.1
  • Jacket color: Black
  • Jacket Thickness = 2.5 mm
Application
Suitable for indoor installation and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switch-boards and power stations. The PE-outer jacket is resistant to high mechanical stress for laying the cables. This PE-jacket is not flame-resistant (does not conform the test method B, as per VDE 0472 part 804).
The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assures a construction free of partial discharges with high operational reliability.
Properties
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Installation Notes
    To guarantee an optimum on operating reliability the extruded semi-conductive layer is spliced with the insulation for long duration. For this reason, we recommend a peeling tool for installation.
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • For longitudinally and crosswise water-tight cable type N2XS(FL)2Y with PE-copolymer coated aluminum.
  • Further types and dimensions on request.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
