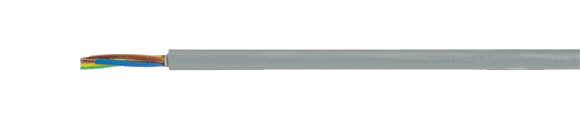

European Installation Cable: NHXMH-O / NHXMH-J

Halogen-Free, Cable w/ Plastic jacket, 300/500 V, VDE Approved

Sealcon, Inc, European & Domestic cable

NHXMH-O / NHXMH-J halogen-free, plastic jacket cable 300/500 V, VDE approved, Installation Cables, RoHS Approved, RoHS Compliant, Sealcon, European
NHXMH-O
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø min.-max. (mm) Copper Weight
kg/km
Weight
kg/km
AWG
53300 NHXMH-O 1x1.5 RE 5.0-8.4 15.0 49.0 16
53306 NHXMH-O 2x1.5 RE 7.5-9.2 29.0 110.0 16
53301 NHXMH-O 1x2.5 RE 5.4-8.8 24.0 60.0 14
53307 NHXMH-O 2x2.5 RE 8.4-10.1 48.0 136.0 14
53302 NHXMH-O 1x4 RE 6.0-9.5 39.0 80.0 12
53308 NHXMH-O 2x4 RE 9.5-11.5 77.0 202.0 12
53303 NHXMH-O 1x6 RE 6.4-10.0 58.0 111.0 10
53304 NHXMH-O 1x10 RE 7.4-11.3 96.0 160.0 8
53305 NHXMH-O 1x16 RM 8.5-12.4 154.0 232.0 6
NHXMH-J
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø min.-max. (mm) Copper Weight
kg/km
Weight
kg/km
AWG
53350 NHXMH-J 3G1.5 RE 8.0-9.6 43.0 130.0 16
53358 NHXMH-J 4G1.5 RE 8.5-10.3 58.0 151.0 16
53366 NHXMH-J 5G1.5 RE 9.1-11.0 72.0 177.0 16
53374 NHXMH-J 7G1.5 RE 9.9-11.9 101.0 209.0 16
53351 NHXMH-J 3G2.5 RE 8.7-10.6 72.0 163.0 14
53359 NHXMH-J 4G2.5 RE 9.5-11.5 96.0 200.0 14
53367 NHXMH-J 5G2.5 RE 10.4-12.3 120.0 238.0 14
53375 NHXMH-J 7G2.5 RE 11.4-13.8 168.0 300.0 14
53352 NHXMH-J 3G4 RE 10.1-12.2 115.0 235.0 12
53360 NHXMH-J 4G4 RE 11.3-13.7 154.0 300.0 12
53368 NHXMH-J 5G4 RE 12.5-15.1 192.0 345.0 12
53353 NHXMH-J 3G6 RE 11.5-13.9 173.0 323.0 10
53361 NHXMH-J 4G6 RE 12.7-15.3 230.0 400.0 10
53369 NHXMH-J 5G6 RE 13.7-16.6 288.0 475.0 10
53354 NHXMH-J 3G10 RE 13.8-16.7 288.0 485.0 8
53362 NHXMH-J 4G10 RE 15.1-18.2 384.0 603.0 8
53370 NHXMH-J 5G10 RE 16.3-19.7 480.0 720.0 8
53355 NHXMH-J 3G16 RM 16.5-20.0 461.0 850.0 6
53363 NHXMH-J 4G16 RM 18.0-21.8 615.0 940.0 6
53371 NHXMH-J 5G16 RM 19.7-23.8 768.0 1142.0 6
53356 NHXMH-J 3G25 RM 20.4-24.6 720.0 1152.0 4
53364 NHXMH-J 4G25 RM 22.6-27.3 960.0 1432.0 4
53372 NHXMH-J 5G25 RM 24.7-29.8 1200.0 1800.0 4
53357 NHXMH-J 3G35 RM 22.7-27.4 1008.0 1503.0 2
53365 NHXMH-J 4G35 RM 24.9-30.0 1344.0 1930.0 2
53373 NHXMH-J 5G35 RM 27.5-33.2 1680.0 2490.0 2
Technical Data European
  • Halogen-free plastic-outer jacket cable with enhanced characteristics in case of fire, according to DIN VDE 0250 part 214
  • Conductor Resistance (at 20°C/68°F)
    according to DIN VDE 0295 and IEC 60228
  • Max. Temperature at the Conductor
    During operation +70°C/+158°F
    In case of short circuit +250°C/+482°F
  • Temperature Range
    During Installation
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Nominal Voltage
    U0/U 300/500 V
  • Test Voltage 2000 V
  • Minimum Bending Radius
    Single-conductor approx. 15x cable Ø
    Multi-conductor approx. 10x cable Ø
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE FRNC
Cable Construction
  • Plain copper conductor, single conductor up to 10 mm²
    multi-conductor from 16-35 mm²
    according to DIN VDE 0295 cl. 1 or 2, BS 6360 cl. 1 or 2 and IEC 60228 cl. 1 or 2
  • Conductor insulation of cross-linked polymer compound 2XI1 to DIN VDE 0207 part 22
  • Color code according to DIN VDE 0293-308
  • 3 conductors with green-yellow grounding for 1 conductor cable conductor color black
  • Conductors stranded in layer
  • Overall conductor jacket of halogen-free filling compound (not for single-conductor cables)
  • Outer jacket, flame-retardant polymer compound HM2 according to DIN VDE 0207 part 24, halogen-free
  • Jacket color: Gray (RAL 7001)
Application
Halogen-free cables with plastic jacket with enhanced characteristics in case of fire are used for applications where harm to human life and damage to property must be prevented in the event of fire, e.g. in industrial installations, communal establishments, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theaters, multi-story buildings, process control centers etc.
Suitable for installation in dry, damp or wet environments, for installation above, in and beneath plaster as well as in masonry walls and in concrete, not however for direct embedding in vibrated, compacted or tamped concrete.
These cables are also suitable for outdoor applications.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Flame-retardant
  • Halogen-free, no liberation of corrosive or toxic gases
  • Limited propagation of fire
  • Low smoke development
  • Ozone resistant
  • Tests
    Flame test to DIN VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
    Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
    Halogen-free according to VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
    Smoke density according to DIN VDE 0482 part 268, HD 606, EN 50268-12 / IEC 61034-12, BS 7622 part 12 (equivalent DIN VDE 0472 part 816)
    Ozone resistance according to DIN VDE 0472 part 805
Note
  • RE = round conductor, single-wire
    RM = round conductor, multiple-wire
  • LS0H = Low Smoke Zero Halogen-Free.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
