Halogen-Free, For Fixed Installation, Emission-Free, 300/500 V
Sealcon, Inc, European & Domestic cable
European Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer Ø (mm)
Copper
Weight
kg/km
Weight
kg/km
AWG
51970
(N)HMH-O 1X1.5 RE
8.3
14.4
39.0
16
51976
(N)HMH-O 2X1.5
RE
8.9
29.0
82.0
16
51981
(N)HMH-O 3X1.5
RE
9.2
43.0
92.0
16
51983
(N)HMH-O 4X1.5
RE
9.9
58.0
115.0
16
51991
(N)HMH-O 7X1.5
RE
11.5
101.0
167.0
16
51971
(N)HMH-O 1X2.5
RE
9.0
24.0
47.0
14
51977
(N)HMH-O 2X2.5
RE
10.0
48.0
110.0
14
51982
(N)HMH-O 3X2.5
RE
10.6
72.0
128.0
14
51984
(N)HMH-O 4X2.5
RE
11.0
96.0
152.0
14
51972
(N)HMH-O 1X4 RE
9.5
38.0
62.0
12
51978
(N)HMH-O 2X4 RE
11.5
77.0
160.0
12
51985
(N)HMH-O 4X4 RE
13.4
154.0
244.0
12
51973
(N)HMH-O 1X6 RE
10.0
58.0
83.0
10
51979
(N)HMH-O 2X6 RE
12.4
115.0
208.0
10
51986
(N)HMH-O 4X6 RE
15.9
230.0
345.0
10
51974
(N)HMH-O 1X10 RE
11.5
96.0
125.0
8
51980
(N)HMH-O 2X10 RE
14.9
192.0
340.0
8
51987
(N)HMH-O 4X10 RE
17.5
384.0
522.0
8
51975
(N)HMH-O 1X16 RM
12.9
154.0
188.0
6
51988
(N)HMH-O 4X16 RM
19.9
614.0
815.0
6
51989
(N)HMH-O 4X25 RM
27.4
960.0
1305.0
4
51990
(N)HMH-O 4X35 RM
30.4
1344.0
1750.0
2
Technical
Data
European
Plastic-outer jacket cable, halogen-free,
for fixed installation
Adapted to DIN VDE 0250 part 214
Permissible Working Temperature at the conductor +70°C/+158°F
Nominal Voltage U0/U
300/500 V
Max. Voltage for
equipment Um 550 V
Caloric Load Values See Technical Information
Power Rating
in accordance with DIN
VDE 0298 part 4, tables 3
and 4, analogous for NYM,
taking the type of installation
and the appropriate factors
for differing ambient temperatures
and build-up of cables
rated short-circuit current
of density acc. to DIN VDE
0298 part 4 table 15
fuse rating according to
DIN VDE 0100 part 430
Approvals
Cable
Construction
Bare copper conductor, solid or stranded
on the basis of DIN VDE 0250 part 204 with
the following modifications:
Conductor insulation of halogen-free thermoplastic
polymer compound with optimum wall thickness
Color coded to
DIN VDE 0293-308
for 1 conductor cable
conductor color black
Conductors stranded in layer
Extruded conductor insulation, halogen-free
Outer jacket of non-cross-linked, halogen-free
thermoplastic polymer compound
Jacket color: Light-gray
(RAL 7035)
Application
This plastic-outer jacket
cable of defined behavior in case
of fire is used for installations
in residential dwellings, public
buildings as well as in industrial
constructions.
Suitable for applications in dry,
damp or wet environments for installation
above, on, in and beneath plaster,
as well as in masonry and concrete
walls, not however for embedding
in vibration, compacted or tamped
concrete.
The cable is also approved for outdoor
applications provided these are not
exposed to direct sunlight radiation.
Installation of this cable in earth
or in water is not permitted. =
The product is conformed with the EC
Low-Voltage Directive 2006/95/EG.
Properties
Corrosive nature of combustion
gases (halogen-free verification) testing acc. to VDE 0482
part 267, DIN EN 50267-2-2, IEC 60754-2,
HD 602 (equivalent DIN VDE 0472 part
813)
Behavior in case of fire testing according to VDE
0482-332-1-2, DIN EN 60332-1-2 / IEC
60332-1 (equivalent DIN VDE 0472 part
804 test method B)
Low smoke testing acc. to DIN VDE 0472 part
818
Note
RE = round conductor, single-wire
RM= round conductor, multiple-wire
O-version: single conductor with
black insulation, cables between 2
- 7 conductors are without green-yellow
grounding.
AWG sizes are approximate equivalent
values. The actual cross-section is
in mm².
is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
7374 S. Eagle Street
Centennial, CO 80112-4221 USA
Toll Free: 800-456-9012 / 303-699-1135 FAX: 303-680-5344
All-weather, Rubber & Welding
Installation Cables
Installation Cables, Halogen-free

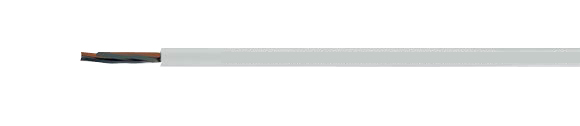

HMH-O.jpg)
=
