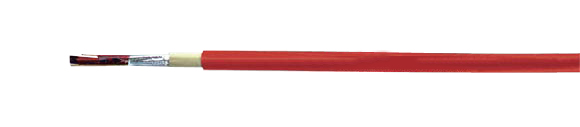

Halogen-Free Security Cable: J-H(St)H
Bd Fire Warning Installation Cable, Halogen-Free

Sealcon, Inc, European & Domestic cable

J-H(St)H Bd Fire warning installation cable, halogen-free, RoHS Compliant, RoHS Approved, Sealcon, , Halogen-free Security Cables
Part-No. Description & No. of pairs x diameter in mm Outer
Diameter
mm
Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
34116 J-H(ST)H 2X2X0.8 6.8 25.0 70.0 -
34117 J-H(ST)H 4X2X0.8 10.5 45.0 135.0 -
34118 J-H(ST)H 6X2X0.8 10.9 65.0 151.0 -
34119 J-H(ST)H 10X2X0.8 13.1 106.0 230.0 -
34120 J-H(ST)H 20X2X0.8 20.4 206.0 507.0 -
34121 J-H(ST)H 30X2X0.8 21.5 307.0 600.0 -
34122 J-H(ST)H 40X2X0.8 24.5 407.0 788.0 -
34123 J-H(ST)H 50X2X0.8 27.1 508.0 972.0 -
34124 J-H(ST)H 60X2X0.8 29.4 608.0 1120.0 -
34125 J-H(ST)H 80X2X0.8 33.2 809.0 1475.0 -
34126 J-H(ST)H 100X2X0.8 37.2 1010.0 1804.0 -
Technical Data
  • Flame retardant, halogen-free installation cable adapted to DIN VDE 0815
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Loop Resistance at +20°C/+68°F
    Max. 73.2 Ohm/km
  • Operating Voltage (peak value)
    300 V (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor U eff. 800 V
    Conductor/shield 800 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance at 800 Hz
    Max. 120¹) nF/km
  • Capacitance Unbalances at 800 Hz
    K1 max. 300²) pF/100 m
    K9-K12 max. 100³) pF/100 m
  • Line Attenuation at 800 Hz
    Approx. 1.5 dB/km
  • Minimum Bending Radius
    During delivery = 7.5x cable Ø
    Single bending without tension
    = 2.5x cable Ø
    Repeated bending under tension
    = 7.5x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Caloric Load Values
    See Technical Information
  • 1) This value may be extended by 20% with make-up to 4 pairs
  • 2) 20% of the values, but one value up to 500 pF is allowed
  • 3) 10% of the values, but four values (relationship) of up to 300 pF are allowed
Approvals
RoHSCE VDE FRNC
Cable Construction
  • Bare copper conductor, solid, 0.8 mm Ø
  • Conductor insulation of halogen-free compound type HI2, to DIN VDE 0207 part 23
    insulation wall thickness 0.3 or 0.4 mm
  • Conductor and star-quad identification to DIN VDE 0815
  • Conductors twisted in quads
  • The conductors to quads and the quads are stranded to units
  • Conductor wrapping with plastic tape
  • Drain wire solid
  • Electrostatic shield (St) of plastic coated aluminum foil and drain wire
  • Halogen-free outer jacket type HM2 to DIN VDE 0207 part 24
  • Jacket color red with imprint "BRANDMELDEKABEL"
Application
The halogen-free installation cables with improved characteristics in the case of fire are used for the telephone transmission, measurement and control technology.
The static shield protects the transmission circuits against outer electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. Those cables are preferably used for telecommunication indoor installations and in special cases the outdoor installation is permitted under protection against sunlight.
These cables are suitable for fixed installation in areas with danger of fire, in dry and damp environments as well as on, in and under plaster.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Not for purposes of high current and power installation as well as underground laying
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
  • Flame test to DIN VDE 0482 part 266-2 / HD 405.3, BS 4066 part 3 / EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to DIN VDE 0482 part 267 / EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Smoke density according to DIN VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
Note
  • 1) This value may be extended by 20% with make-up to 4 pairs
  • 2) 20% of the values, but one value up to 500 pF is allowed
  • 3) 10% of the values, but four values (relationship) of up to 300 pF are allowed
  • LS0H = Low Smoke Zero Halogen-Free
Cable Accessories
  • Coming Soon!
