Data, Network
& BUS Cable: LAN Cable 200

  S-FTP duplex

Sealcon, Inc, European & Domestic cable

LAN Cable, 200 S-FTP duplex, Sealcon, , RoHS Approved, RoHS Compliant
Part Number:
81123
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 185 Ohm/km max.
Mutual Capacitance: 48.0 nF/km nom.
Rel. Propagation Velocity: 74%
Typical Values
Frequency (MHz) 10 16 62.5 100 200
Attenuation (dB/10m) 5.6 7.2 14.4 18.2 25.9
Next (dB) 62.0 59.0 50.0 46.0 40.0
ACR (dB) 56.4 51.8 35.6 27.8 14.6
Technical Data
Weight: 100.0 kg/km
Min. Bending Radius for Laying: 52 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.96 MJ/m
Copper Value: 56.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5e
  • Flame-retardant acc. to IEC 60332-3
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 185 Ohm/km max.
Mutual Capacitance: 48.0 nF/km nom.
Rel. Propagation Velocity: 74%
Typical Values
Frequency (MHz) 10 16 62.5 100 200
Attenuation (dB/10m) 5.6 7.2 14.4 18.2 25.9
Next (dB) 62.0 59.0 50.0 46.0 40.0
ACR (dB) 56.4 51.8 35.6 27.8 14.6
Technical Data
Weight: 100.0 kg/km
Min. Bending Radius for Laying: 52 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.96 MJ/m
Copper Value: 56.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5e
  • Flame-retardant acc. to IEC 60332-3
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3

Approvals
RoHS

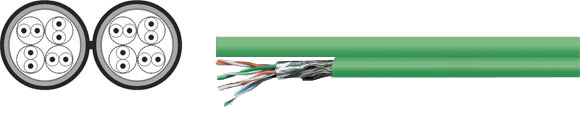

Cable Construction S-FTP 2x(4x2xAWG 24/1) FRNC
Inner Conductor Diameter: 0.51 mm
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE
Conductor Colors: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
Shielding 1: Polyester foil over stranded bundle
Shield over Stranding Element: -
Shield 1 over Stranding: Polyester foil, aluminum-lined
Shield 2 over Stranding: Copper braid
Outer Jacket Material: FRNC
Outer Cable Diameter: approximately 6.0 mm x 12.5 mm
Outer Jacket Color: Green similar to RAL 6018
Application
®200 data cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s, or ISDN absolutely trouble-free. Likewise, the mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
