Data, Network
& BUS Cable: LAN Cable 1200

  S-STP duplex

Sealcon, Inc, European & Domestic cable

LAN Cable, 1200 S-STP duplex, Sealcon, , RoHS Approved, RoHS Compliant
Part Number:
800647
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
100 Ohm ± 20 Ohm at 101 to 1200 MHz
Loop Resistance: 120 Ohm/km max.
Mutual Capacitance: 43.0 nF/km nom.
Rel. Propagation Velocity: 79%
Typical Values
Frequency (MHz) 10 16 62.5 100 200 300 600 1000 1200
Attenuation (dB/10m) 4.9 6.3 12.7 16.3 23.5 29.4 42.8 53.0 59.0
Next (dB) 100.0 100.0 95.0 93.0 90.0 87.0 81.0 78.0 77.0
ACR (dB) 95.1 93.7 82.3 76.7 66.5 57.6 38.2 25.0 18.0
Technical Data
Weight: 133.0 kg/km
Min. Bending Radius for Laying: 72 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/140°F
Caloric Load, approximate value: 1.50 MJ/m
Copper Value: 80.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 8
  • Flame-retardant acc. to IEC 60332-3
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
100 Ohm ± 20 Ohm at 101 to 1200 MHz
Loop Resistance: 120 Ohm/km max.
Mutual Capacitance: 43.0 nF/km nom.
Rel. Propagation Velocity: 79%
Typical Values
Frequency (MHz) 10 16 62.5 100 200 300 600 1000 1200
Attenuation (dB/10m) 4.9 6.3 12.7 16.3 23.5 29.4 42.8 53.0 59.0
Next (dB) 100.0 100.0 95.0 93.0 90.0 87.0 81.0 78.0 77.0
ACR (dB) 95.1 93.7 82.3 76.7 66.5 57.6 38.2 25.0 18.0
Technical Data
Weight: 133.0 kg/km
Min. Bending Radius for Laying: 72 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/140°F
Caloric Load, approximate value: 1.50 MJ/m
Copper Value: 80.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 8
  • Flame-retardant acc. to IEC 60332-3
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3

Approvals
RoHS

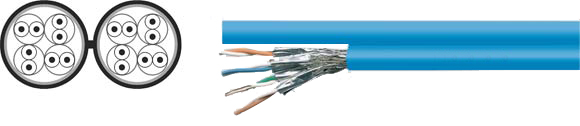

Cable Construction S-STP 2x(4x2xAWG 22/1) FRNC
Inner Conductor Diameter: 0.64 mm
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE
Conductor Colors: white/blue, white/orange, white/green, white/brown
Shielding 1: -
Shield over Stranding Element: Polyester foil, aluminum-lined
Shield 1 over Stranding: Copper braid
Shield 2 over Stranding: -
Outer Jacket Material: FRNC
Outer Cable Diameter: approximately 7.7 mm x 16.5 mm
Outer Jacket Color: Blue similar to RAL 5015
Application
®1200 data cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s or ISDN absolutely trouble-free. Likewise, the mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
