100
Ohm ± 15 Ohm at 1 to 100 MHz
100 Ohm ± 20 Ohm at 101 to 600 MHz
Loop Resistance:
150 Ohm/km
max.
Mutual
Capacitance:
45.0 nF/km
nom.
Rel. Propagation
Velocity:
79%
Typical
Values
Frequency (MHz)
10
16
62.5
100
200
300
600
650
Attenuation (dB/10m)
5.9
7.4
14.9
19.0
27.5
34.2
50.1
52.4
Next (dB)
85.0
85.0
85.0
85.0
83.0
80.0
80.0
80.0
ACR (dB)
79.1
77.6
70.1
66.0
55.5
45.8
29.9
27.6
Technical
Data
Weight:
146.0
kg/km
Min. Bending
Radius for Laying:
90 mm
Operating
Temperature Range, min.:
- 30 °C
Operating
Temperature Range, max.:
+70 °C
Caloric Load,
approximate value:
1.78
MJ/m
Copper Value:
80.0 kg/km
Norms
Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 7
Flame-retardant acc. to IEC 60332-1
Smoke density acc. to IEC 61034
Halogen-free acc. to 60754-2
Corrosiveness acc. to EN50267-2-3
Oil resistant
Technical
Data
Electrical
Data
Characteristic Impedance:
100
Ohm ± 15 Ohm at 1 to 100 MHz
100 Ohm ± 20 Ohm at 101 to 600 MHz
Loop Resistance:
150 Ohm/km
max.
Mutual
Capacitance:
45.0 nF/km
nom.
Rel. Propagation
Velocity:
79%
Typical
Values
Frequency (MHz)
10
16
62.5
100
200
300
600
650
Attenuation (dB/10m)
5.9
7.4
14.9
19.0
27.5
34.2
50.1
52.4
Next (dB)
85.0
85.0
85.0
85.0
83.0
80.0
80.0
80.0
ACR (dB)
79.1
77.6
70.1
66.0
55.5
45.8
29.9
27.6
Technical
Data
Weight:
146.0
kg/km
Min. Bending
Radius for Laying:
90 mm
Operating
Temperature Range, min.:
- 30 °C
Operating
Temperature Range, max.:
+70 °C
Caloric Load,
approximate value:
1.78
MJ/m
Copper Value:
80.0 kg/km
Norms
Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 7
Flame-retardant acc. to IEC 60332-1
Smoke density acc. to IEC 61034
Halogen-free acc. to 60754-2
Corrosiveness acc. to EN50267-2-3
Oil resistant
Approvals
Cable
Construction

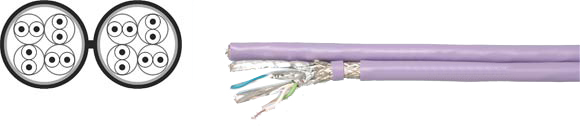

S-STP
2x(4x2xAWG 23/1) FRNC
Inner
Conductor Diameter:
0.60
mm
Conductor Material:
Copper, bare
Conductor Insulation:
PO
Conductor Colors:
white/blue,
wh/orange, wh/green,
wh/brown
Shielding 1:
-
Shield over
Stranding Element:
Polyester foil,
aluminum-lined
Shield 1 over
Stranding:
Copper braid
Shield 2 over
Stranding:
-
Outer Jacket
Material:
FRNC
Outer Cable
Diameter:
approximately
8.1 mm x 17.2 mm
Outer Jacket
Color:
Blue Lilac similar
to RAL 4005
Application
® 10GIGA data
cables are used in the backbone area (vertical
and campus cabling) of a network. They are
characterized by large performance reserves
and outstanding performance. With this series
first time you can realize 10Gigabit Ethernet
over a copper cable at a transmission distance
of maximum 100m. Of course it also can be
used to implement services such as Gigabit
Ethernet, Fast Ethernet, Ethernet, ATM155,
FDDI, token ring 4/16 Mbit/s or ISDN absolutely
trouble-free.
