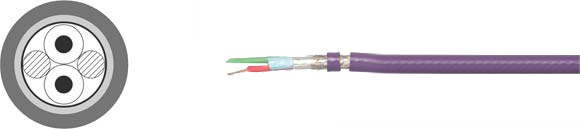

Sealcon Data, Network & BUS Cable:
PROFIBUS L2 UL FT4
Sealcon, Inc, European & Domestic cable
Part
Number: 800680
Electrical
Data
Characteristic
Impedance:
150
Ohm ± 10%
Conductor
Resistance:
55.0 Ohm/km
max.
Insulation
Resistance:
1.00 GOhm
x km min.
Mutual Capacitance:
30.0 nF/km
nom.
Test Voltage:
1.5 kV
Attenuation:
9.6
kHz
<
2.5
dB/km
38.4
kHz
<
4.0
dB/km
4.0
MHz
<
22.0
dB/km
16.0
MHz
<
45.0
dB/km
Technical
Data
Weight:
approximately
66.0 kg/km
Min. Bending
Radius for Laying:
110.0 mm
Operating
Temperature Range, min.:
-40 °C
Operating
Temperature Range, max.:
+70 °C
Caloric Load,
approximate value:
0.90 MJ/m
Copper Weight:
24.0 kg/km
Norms
Applicable Standards:
PROFInet
Draft
UL Style:
CMG PLTC
CSA Standard:
CEC: CMG FT4
Technical
Data
Electrical
Data
Characteristic
Impedance:
150
Ohm ± 10%
Conductor
Resistance:
55.0 Ohm/km
max.
Insulation
Resistance:
1.00 GOhm
x km min.
Mutual Capacitance:
30.0 nF/km
nom.
Test Voltage:
1.5 kV
Attenuation:
9.6
kHz
<
2.5
dB/km
38.4
kHz
<
4.0
dB/km
4.0
MHz
<
22.0
dB/km
16.0
MHz
<
45.0
dB/km
Technical
Data
Weight:
approximately
66.0 kg/km
Min. Bending
Radius for Laying:
110.0 mm
Operating
Temperature Range, min.:
-40 °C
Operating
Temperature Range, max.:
+70 °C
Caloric Load,
approximate value:
0.90 MJ/m
Copper Weight:
24.0 kg/km
Norms
Applicable Standards:
PROFInet
Draft
UL Style:
CMG PLTC
CSA Standard:
CEC: CMG FT4
Approvals
Type/Area
of Application
Fixed
Installation,Indoor
Cable
Construction
1x2x0.64
mm
Inner
Conductor Diameter 1:
Copper,
bare (AWG 22/1)
Conductor Insulation:
Foam-Skin-PE
Conductor Colors
1:
red, green
Stranding Element:
2 conductors
+ 2 fillers stranded together
Shielding 1:
Polyester foil
over stranded bundle
Shielding 2:
Polyester foil,
aluminum lined
Total Shielding:
Copper braid,
tinned
Drain wire:
yes
Outer Jacket
Material:
PVC
Outer Diameter:
8.0 mm ± 0.4
mm
Outer Jacket
Color:
Violet similar
to RAL 4001
Application
This system cable
is used to interconnect L2-BUS components.
This cable is an economical solution
for the cell and field area. For
the information exchange between
different automation systems as well
as for communication with the connected
decentralized field units, serial
field bus systems are used. The type
described here is suitable for the
installation in areas where the FT4
standard (special fire standard "vertical
tray") according to UL/CSA applies.
For this purpose the line was equipped
with a special outer PVC jacket.
