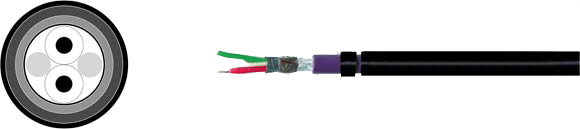

Data, Network and Bus Cables | PROFIBUS L2 Direct Burial

Part Number:
82824

Part Number:
802177

Electrical Data

Characteristic Impedance:

150 Ohm ± 10%

Conductor Resistance:

55.0 Ohm/km max.

Insulation Resistance:

1.00 GOhm x km min.

5.00 GOhm x km min.

Loop resistance:

114 Ohm/km max.

110 Ohm/km max.

Mutual Capacitance:

30.0 nF/km nom.

Nomanial Voltage

-

250 V

Test Voltage:

1.5 kV

Attenuation:

9.6	kHz	<	2.5	dB/km
38.4	kHz	<	4.0	dB/km
3.0	MHz	<	22.0	dB/km
20.0	MHz	<	42.0	dB/km

9.6	kHz	<	2.5	dB/km
38.4	kHz	<	4.0	dB/km
4.0	MHz	<	22.0	dB/km
16.0	MHz	<	42.0	dB/km

Technical Data

Weight:	Approximately 92.0 kg/km	Approximately 132.0 kg/km
Min. Bending Radius (Laying):	180.0 mm	190.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+70°C/+158°F	+70°C/+158°F
Caloric Load, approx. value:	2.657 MJ/m	2.40 MJ/m
Copper Value:	24.0 kg/km	24.0 kg/km

Norms

Applicable Standards:

Profibus acc. to DIN 19245 T3 and EN 50170

Technical Data

Electrical Data

Characteristic Impedance:

150 Ohm ± 10%

Conductor Resistance:

55.0 Ohm/km max.

Insulation Resistance:

1.00 GOhm x km min.

5.00 GOhm x km min.

Loop resistance:

114 Ohm/km max.

110 Ohm/km max.

Mutual Capacitance:

30.0 nF/km nom.

Nominal Voltage

-

250 V

Test Voltage:

1.5 kV

Attenuation:

9.6	kHz	<	2.5	dB/km
38.4	kHz	<	4.0	dB/km
3.0	MHz	<	22.0	dB/km
20.0	MHz	<	42.0	dB/km

9.6	kHz	<	2.5	dB/km
38.4	kHz	<	4.0	dB/km
4.0	MHz	<	22.0	dB/km
16.0	MHz	<	42.0	dB/km

Technical Data

Weight:	Approximately 92 kg/km	Approximately 132 kg/km
Min. Bending Radius (Laying):	180.0 mm	190.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+70°C/+158°F	+70°C/+158°F
Caloric Load, approx. value:	2.657 MJ/m	2.40 MJ/m
Copper Value:	24.0 kg/km	24.0 kg/km

Norms

Applicable Standards:

Profibus acc. to DIN 19245 T3 and EN 50170

Approvals

Type/Area of Application	Underground Laying	Underground Laying
Cable Construction	1x2x0.64 mm	1x2x0.64 mm

Inner Conductor Diameter:	Copper, bare (AWG 22/1)	Copper, bare (AWG 22/1)
Conductor Insulation:	Foam-skin-PE	Cell PE
Conductor Colors:	red, green	red, green
Stranding Element:	2 conductors + 2 fillers stranded together	2 conductors + 2 fillers stranded together
Shielding 1:	Polyester foil over stranded bundle	Polyester foil over stranded bundle
Inner Jacket Material	PVC	Polyethylene
Shielding 2:	Polyester foil, aluminum-lined	Polyester foil, aluminum-lined
Total Shielding:	Copper braid, tinned	Copper braid, tinned
Outer Jacket Material:	Polyethylene	PUR
Outer Diameter:	Approx. 10.0 mm ± 0.2 mm	Approx. 10.6 ± 0.3 mm
Outer Jacket Color:	Black similar to RAL 9005	Black similar to RAL 9005

Application

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for outdoor laying (PE jacket) and industry laying (PUR jacket).
