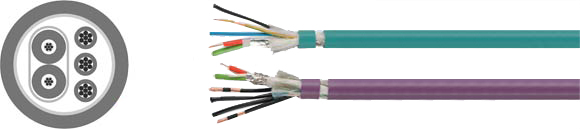

Bus Cables | PROFIBUS ET200X + ECOFAST

Part Number:
82913

Part Number:
800044

Electrical Data

Characteristic Impedance:

150 Ohm ± 10%

150 Ohm ± 15%

Conductor Resistance:

84.0 Ohm/km max.

89.9 Ohm/km max.

Insulation Resistance:

1.00 GOhm x km min.

Loop Resistance

168 Ohm/km max.

179 Ohm/km max.

Mutual Capacitance:

30.0 nF/km nom.

Test Voltage:

1.5 kV

Attenuation:

9.6	kHz	<	3.0	dB/km
38.4	kHz	<	5.0	dB/km
4.0	MHz	<	25.0	dB/km
16.0	MHz	<	52.0	dB/km

9.6	kHz	<	3.0	dB/km
38.4	kHz	<	5.0	dB/km
4.0	MHz	<	30.0	dB/km
16.0	MHz	<	60.0	dB/km

Technical Data

Weight:	Approximately 105.0 kg/km	Approximately 159.0 kg/km
Min. Bending Radius (Laying):	140.0 mm	165.0 mm
Operating Temp.Range, min.:	-5°C/+23°F	-20°C/-4°F
Operating Temp.Range, max.:	+60°C/+140°F	+60°C/+140°F
Caloric Load, approx. value:	1.97 MJ/m	2.84 MJ/m
Copper Value:	46.0 kg/km	90.0 kg/km

Norms

Applicable Standards:	Profibus acc. to DIN 19245 T3 and EN 50170	Profibus acc. to DIN 19245 T3 and EN 50170
UL Style:	AWM Style 20351	UL Style 20233

Technical Data

Electrical Data

Characteristic Impedance:

150 Ohm ± 10%

150 Ohm ± 15%

Conductor Resistance:

84.0 Ohm/km max.

89.9 Ohm/km max.

Insulation Resistance:

1.00 GOhm x km min.

Mutual Capacitance:

30.0 nF/km nom.

Test Voltage:

1.5 kV

Attenuation:

9.6	kHz	<	3.0	dB/km
38.4	kHz	<	5.0	dB/km
4.0	MHz	<	25.0	dB/km
16.0	MHz	<	52.0	dB/km

9.6	kHz	<	3.0	dB/km
38.4	kHz	<	5.0	dB/km
4.0	MHz	<	30.0	dB/km
16.0	MHz	<	60.0	dB/km

Technical Data

Weight:	Approximately 105.0 kg/km	Approximately 159.0 kg/km
Min. Bending Radius (Laying):	140.0 mm	165.0 mm
Operating Temp.Range, min.:	-5°C/+23°F	-20°C/-4°F
Operating Temp.Range, max.:	+60°C/+140°F	+60°C/+140°F
Caloric Load, approx. value:	1.97 MJ/m	2.84 MJ/m
Copper Value:	46.0 kg/km	90.0 kg/km

Norms

Applicable Standards:	Profibus acc. to DIN 19245 T3 and EN 50170	Profibus acc. to DIN 19245 T3 and EN 50170
UL Style:	AWM Style 20351	UL Style 20233

Approvals

Type/Area of Application	Drag Chain Applications	Mobile Use
Cable Construction	1x2x0.65 mm + 3x1x0.75 mm² (stranded)	1x2x0.65 mm + 4x1x1.5 mm²(stranded)

Inner Conductor Diameter 1:	Copper, bare (AWG 22/19)	Copper, bare (AWG 24/19)
Inner Conductor Diameter 2:	Copper, bare (AWG 18/24)	Copper, bare (AWG 18/84)
Conductor Insulation 1:	Foam-skin-PE	Foam-skin-PE
Conductor Insulation 2:	PVC	TPM
Conductor Colors 1:	red, green	red, green
Conductor Colors 2:	black, blue, green-yellow	black, black, black, black
Stranding Element:	Double Conductor	2 conductors + 2 fillers stranded together
Shielding 1:	Polyester foil over stranded bundle	Polyester foil over stranded bundle
Shielding 2:	Foil + Braid	Foil + Braid
Total Shielding:	Polyester foil	-
Outer Jacket Material:	PUR	TPU
Outer Diameter:	Approx. 9.5 mm ± 0.5 mm	Approx. 11.0 mm ± 0.3 mm
Outer Jacket Color:	Petrol similar to RAL 5018	Violet similar to RAL 4001

Application

The Profibus-ET200X and Profibus ECOFAST lines used in the area of process automation. These BUS systems are a very economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The series ET200X and DESINA® hybrid are characterized by a special construction with data and power supply in one cable. These types are suited for the application in drag chains and similar mobile applications.
