Data, Network & BUS Cable:
Industrial Ethernet 200S
S-FTP 4-Conductor Drag Chain
Sealcon, Inc, European & Domestic cable
Part
Number: 800088
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 15 Ohm at 1 to 100 MHz
Mutual
Capacitance:
50.0 nF/km
nom.
Typical
Values
Frequency (MHz)
10
16
62.5
100
Attenuation (dB/10m)
1.0
1.2
2.6
3.3
Next (dB)
47.0
44.0
35.0
32.0
ACR (dB)
46.0
42.8
32.4
28.7
Technical
Data
Weight:
Approximately
54
kg/km
Min. Bending
Radius for Laying:
80.0 mm
Operating
Temperature Range, min.:
-25°C/-13°F
Operating
Temperature Range, max.:
+70°C/-158°F
Caloric
Load, Approximate Value:
0.944 MJ/m
Copper
Weight:
30.00 kg/km
Norms
Acc. to
ISO/IEC 11801
Acc. to EN 50173
Acc. to
EIA/TIA 568-A,
Category 5
Flame Retardant acc. to IEC
60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Oil-resistant
Technical
Data
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance:
156.0 nF/km
nom.
Mutual
Capacitance:
51.0 nF/km
nom.
Typical
Values
Frequency (MHz)
10
16
62.5
100
Attenuation (dB/10m)
1.0
1.2
2.6
3.3
Next (dB)
47.0
44.0
35.0
32.0
ACR (dB)
46.0
42.8
32.4
28.7
Technical
Data
Weight:
Approximately
54.0
kg/km
Min. Bending
Radius for Laying:
80.0 mm
Operating
Temperature Range, min.:
-25°C/-13°F
Operating
Temperature Range, max.:
+70°C/-158°F
Caloric
Load, Approximate Value:
0.944 MJ/m
Copper
Weight:
30.00 kg/km
Norms
Acc. to
ISO/IEC 11801
Acc. to EN 50173
Acc. to
EIA/TIA 568-A,
Category 5
Flame Retardant acc. to IEC
60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Oil-resistant
Approvals
Type/Area
of Application
Machine
Construction, Drag Chain
Applications
Cable
Construction

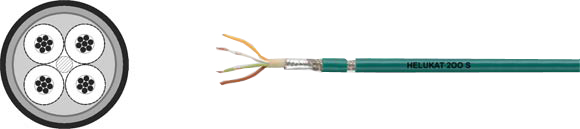

S-FTP 4x1xAWG 24/19 PUR
Inner
Conductor Diameter:
Copper,
bare (AWG 24/19)
Conductor Insulation:
PP
Conductor Colors:
white, brown,
green, yellow
Stranding Element:
Double Conductor
Shielding 1:
-
Shielding 2:
-
Shield 1 over
Stranding:
Polyester foil,
aluminum lined
Shield 2 over
Stranding:
Copper braid
Outer Jacket
Material:
PUR
Outer Diameter:
approx. 6.2 mm
Outer Jacket
Color:
Green similar
to RAL 6026
Application
®200T
industry data cables were designed
for the most extreme requirements
in the industry (industrial ethernet)
and other heavy-duty environments.
They are characterized by large performance
reserves and outstanding performance,
even under the most extreme conditions.
In addition, the thought-out mechanical
construction even ensures applications
in drag chains with high packing
density. These lines are manufactured
with conventional Sub-D plugs or
with various RJ45 plugs.
