Helukat BUS Cable | Industrial Ethernet 100T TORDIERFLEX

Part Number:
800067

Electrical Data

Characteristic Impedance:

100 Ohm ± 15 Ohm at 1 to 100 MHz

Mutual Capacitance:

50.0 nF/km nom.

Typical Values

Frequency (MHz)	10	16	62.5	100
Attenuation (dB/10m)	1.3	1.6	3.2	4.0
Next (dB)	47.0	44.0	35.0	32.0
ACR (dB)	45.7	42.4	31.8	28.0

Technical Data

Weight:

Approximately 63.0 kg/km

Min. Bending Radius for Laying:

80.0 mm

Operating Temperature Range, min.:

-40°C/-40°F

Operating Temperature Range, max.:

+80°C/+176°F

Caloric Load, Approximate Value:

1.234 MJ/m

Copper Weight:

29.5 kg/km

Norms

Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 5
Flame Retardant acc. to IEC 60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Oil-resistant

Technical Data

Electrical Data

Characteristic Impedance:

100 Ohm ± 15 Ohm at 1 to 100 MHz

Loop Resistance:

260.0 ohm/km max.

Loop Resistance:

260 Ohm/km max.

Mutual Capacitance:

50.0 nF/km nom.

Typical Values

Frequency (MHz)	10	16	62.5	100
Attenuation (dB/10m)	1.3	1.6	3.2	4.0
Next (dB)	47.0	44.0	35.0	32.0
ACR (dB)	45.7	42.4	31.8	28.0

Technical Data

Weight:

Approximately 80.0 kg/km

Min. Bending Radius for Laying:

80.0 mm

Operating Temperature Range, min.:

-40°C/-40°F

Operating Temperature Range, max.:

+80°C/+176°F

Caloric Load, Approximate Value:

1.234 MJ/m

Copper Weight:

29.5 kg/km

Norms

Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 5
Flame Retardant acc. to IEC 60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Oil-resistant

Approvals

Type/Area of Application	Machine Construction, Torsion Applications

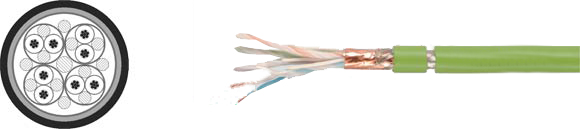

Cable Construction	S-FTP 4x2xAWG 26/19 PUR

Inner Conductor Diameter:	Copper, bare (AWG 26/19)
Conductor Insulation:	PO
Conductor Colors:	white-blue, white-orange, white-green, white-brown
Stranding Element:	Double Conductor
Shielding 1:	Polyester foil over stranded bundle
Shielding 2:	-
Shield 1 over Stranding:	Polyester foil, copper, bare
Shield 2 over Stranding:	Copper braid
Outer Jacket Material:	PUR
Outer Diameter:	Approx. 7.5 mm
Outer Jacket Color:	Green similar to RAL 6018

Application

®100T TORDIERFLEX data cables were designed for the most extreme requirements in the industry and other heavy-duty environments in torsion applications. They are characterized by large performance reserves and outstanding performance, even under extreme conditions. Long mechanical service life is also ensured due to a thought-out design. These lines are manufactured with conventional Sub-D plugs or with various RJ45 plugs.

Properties
