, Multimedia Cables, HOMEWAY HW4, FTP + Coax + EIB, RoHS Approved, RoHS Compliant, Sealcon

Part Number:
82832

Electrical Data

Characteristic Impedance:	100 Ohm ± 15 Ohm at 1 to 100 MHz	75 Ohm	100 Ohm
Conductor Resistance:	-	≥ 36.0 Ohm/km	≥ 73.2 Ohm/km
Insulation Resistance:	-	> 10.0 GOhm x km	> 10.0 GOhm x km
Loop Resistance:	185 Ohm/km max.	-	-
Mutual Capacitance:	48.0 nF/km nom.	54.0 nF/km max. (800 Hz)	100.0 nF/km (800 Hz)
Relative Propagation Velocity:	74%	-	-

Typical Values FTP

Frequency (MHz)	10	16	62.5	100	200	300	450	600	1000
Attenuation (dB/100m)	5.8	7.2	14.2	18.2	26.1	32.2	-	-	-
Next (dB)	62.0	59.0	50.0	46.0	42.0	39.0	-	-	-
ACR (dB)	56.2	51.8	35.8	27.8	15.9	6.8	-	-	-

Typical Values Coax

Frequency (MHz)	15	100	200	300	950	1350	2000	2150	2400
Attenuation (dB/100m)	3.5	8.3	12.5	15.5	26.8	32.0	40.0	41.0	43.9

Technical Data

Weight:

86.0 kg/km

Min. Bending Radius for Laying:

45.0 mm

Operating Temperature Range, min.:

- 20 °C

Operating Temperature Range, max.:

+60 °C

Caloric Load, approximate value:

1.0 MJ/m

Copper Value:

51.6 kg/km

Norms

Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 5
Flame Retardant acc. to IEC 60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Corrosiveness acc. to EN 50267-2-3

Technical Data

Electrical Data

Characteristic Impedance:	100 Ohm ± 15 Ohm at 1 to 100 MHz	75 Ohm	100 Ohm
Conductor Resistance:	-	≥ 36.0 Ohm/km	≥ 73.2 Ohm/km
Insulation Resistance:	-	> 10.0 GOhm x km	> 10.0 GOhm x km
Loop Resistance:	185 Ohm/km max.	-	-
Mutual Capacitance:	48.0 nF/km nom.	54.0 nF/km max. (800 Hz)	100.0 nF/km (800 Hz)
Relative Propagation Velocity:	74%	-	-

Typical Values FTP

Frequency (MHz)	10	16	62.5	100	200	300	450	600	1000
Attenuation (dB/100m)	5.8	7.2	14.2	18.2	26.1	32.2	-	-	-
Next (dB)	62.0	59.0	50.0	46.0	42.0	39.0	-	-	-
ACR (dB)	56.2	51.8	35.8	27.8	15.9	6.8	-	-	-

Typical Values Coax

Frequency (MHz)	15	100	200	300	950	1350	2000	2150	2400
Attenuation (dB/100m)	3.5	8.3	12.5	15.5	26.8	32.0	40.0	41.0	43.9

Technical Data

Weight:

86.0 kg/km

Min. Bending Radius for Laying:

45.0 mm

Operating Temperature Range, min.:

- 20 °C

Operating Temperature Range, max.:

+60 °C

Caloric Load, approximate value:

1.0 MJ/m

Copper Value:

51.6 kg/km

Norms

Acc. to ISO/IEC 11801
Acc. to EN 50173
Acc. to EIA/TIA 568-A, Category 5
Flame Retardant acc. to IEC 60332-1
Smoke Density acc. to IEC 61034
Halogen-free acc. to 60754-2
Corrosiveness acc. to EN 50267-2-3

Approvals

Type/Area of Application: Indoor Multimedia Cabling

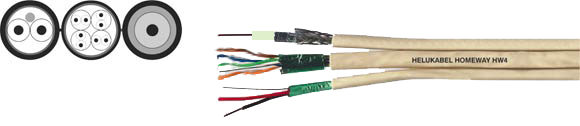

Cable Construction	FTP FRNC	+	Coax 75 Ohm	+	EIB

Inner Conductor Diameter:	0.52 mm	0.81 mm	0.8 mm
Conductor Material:	Copper, bare	Copper, bare	Copper, bare
Conductor Insulation:	Foam-skin-PE	Foam-skin-PE	Foam-skin-PE
Conductor Colors:	white-blue, bu, wh-orange, og, wh-green, gn, wh-brown, bn	white	red, black
Shield over Stranding Element:	Polyester foil, aluminum-lined	Foil + braid	Polyester foil, aluminum-lined
Outer Jacket Material:	FRNC
Cable Dimensions:	total ca. 5.8 mm x 17.5 mm
Outer Jacket Color:	Grey

Application

The European HOMEWAY HW4 cable is used for multimedia networking of homes and apartments. The coaxial element is designed for modern TV technology. The shielded pairs of conductors are suited for both, PC networking and telephone services. The EIB bus distributes the desired EIB signals in the HOMEWAY network. The entire system consists of the cable, connection socket with inserts, a computing center and accessories.
