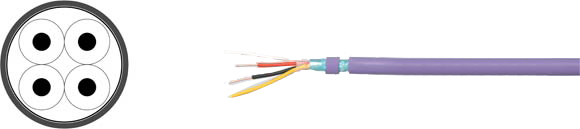

Data, Network & BUS Cable | E-BUS 4-Pairs

Part Number:
80826

Part Number:
81077

Electrical Data

Characteristic Impedance:	100 Ohm	100 Ohm
Conductor Resistance:	73.2 Ohm/km max.	73.2 Ohm/km max.
Insulation Resistance:	0.10 GOhm x km min.	0.10 GOhm x km min.
Mutual Capacitance:	100.0 nF/km nom.	100.0 nF/km nom.

Technical Data

Weight:	Approximately 54.0 kg/km	Approximately 92.0 kg/km
Min. Bending Radius (Laying):	95.0 mm	120.0 mm
Operating Temp.Range, min.:	-30°C/-22°F	-30°C/-22°F
Operating Temp.Range, max.:	+70°C/+158°F	+70°C/+158°F
Caloric Load, approx. value:	0.58 MJ/m	1.37 MJ/m
Copper Value:	25.0 kg/km	41.0 kg/km

Norms

Applicable Standards:

EIB Standard

Technical Data

Electrical Data

Characteristic Impedance:	100 Ohm	100 Ohm
Conductor Resistance:	73.2 Ohm/km max.	73.2 Ohm/km max.
Insulation Resistance:	0.10 GOhm x km min.	0.10 GOhm x km min.
Mutual Capacitance:	100.0 nF/km nom.	100.0 nF/km nom.

Technical Data

Weight:	Approximately 54.0 kg/km	Approximately 92.0 kg/km
Min. Bending Radius (Laying):	95.0 mm	120.0 mm
Operating Temp.Range, min.:	-30°C/-22°F	-30°C/-22°F
Operating Temp.Range, max.:	+70°C/+158°F	+70°C/+158°F
Caloric Load, approx. value:	0.58 MJ/m	1.37 MJ/m
Copper Value:	25.0 kg/km	41.0 kg/km

Norms

Applicable Standards:

EIB Standard

Approvals

Type	2 Pairs	4 Pairs
Cable Construction	2x2x0.8 mm	4x2x0.8 mm

Inner Conductor Diameter:	Copper, bare	Copper, bare
Conductor Insulation:	PE	PVC
Conductor Colors:	white, yellow, red, black	white, yellow, red, green, blue, brown, white, white
Stranding Element:	Star quad	Double conductor
Shielding 1:	Polyester foil over stranded bundle	Polyester foil over stranded bundle
Shielding 2:	-	-
Total Shielding:	Polyester foil, aluminum-lined	Polyester foil, aluminum-lined
Drain Wire:	yes	yes
Outer Jacket Material:	FRNC	PVC
Outer Cable Diameter:	Approx. 6.6 mm ± 0.3 mm	Approx. 8.2 mm ± 0.4 mm
Outer Jacket Color:	Blue Lilac similar to RAL 4005	Blue Lilac similar to RAL 4005

Application

The E-bus cable is used for the transmission of bus signals for intelligent systems in buildings. The cables ensure perfect communication in accordance with EIB regulations (European installation bus). They can be installed over, in, or below the plaster, in pipes and pipe ducts, in dry, moist, and wet areas, as well as outside, provided they are protected against direct exposure to the sun. Wiring together with high-power supply cables is possible without limitation. The EIB bus can be used to control lighting, blinds, heating, ventilation, indicator boards, etc.
