Data, Network & BUS Cable | DeviceNet� CPE

Part Number:
81907

Part Number:
81908

Electrical Data

Characteristic Impedance:

120 Ohm ± 10%

Conductor Resistance:

22.6 Ohm/km max.

90.0 Ohm/km max.

Insulation Resistance:

0.20 GOhm x km min.

Mutual Capacitance:

39.0 nF/km nom.

Test Voltage:

2.0 kV

Attenuation:

125	kHz	<	0.43	dB/100m
500	kHz	<	0.82	dB/100m

125	kHz	<	0.95	dB/100m
500	kHz	<	1.64	dB/100m

Technical Data

Weight:	Approximately 195.0 kg/km	Approximately 70.0 kg/km
Min. Bending Radius (Laying):	190.0 mm	110.0 mm
Operating Temp.Range, min.:	-20°C/-4°F	-20°C/-4°F
Operating Temp.Range, max.:	+60°C/+140°F	+60°C/+140°F
Caloric Load, approx. value:	2.73 MJ/m	0.82 MJ/m
Copper Value:	71.2 kg/km	28.1 kg/km

Norms

Applicable Standards:	ODVA DeviceNet	ODVA DeviceNet
UL Styles:	CMG PLTC	CL2 CMG
CSA Standard:	CEC: CMG FT4	CEC: CMG FT4

Technical Data

Electrical Data

Characteristic Impedance:

120 Ohm ± 10%

Conductor Resistance:

22.6 Ohm/km max.

90.0 Ohm/km max.

Insulation Resistance:

0.20 GOhm x km min.

Mutual Capacitance:

39.0 nF/km nom.

Test Voltage:

2.0 kV

Attenuation:

125	kHz	<	0.43	dB/100m
500	kHz	<	0.82	dB/100m

125	kHz	<	0.95	dB/100m
500	kHz	<	1.64	dB/100m

Technical Data

Weight:	Approximately 195.0 kg/km	Approximately 70.0 kg/km
Min. Bending Radius (Laying):	190.0 mm	110.0 mm
Operating Temp.Range, min.:	-20°C/-4°F	-20°C/-4°F
Operating Temp.Range, max.:	+60°C/+140°F	+60°C/+140°F
Caloric Load, approx. value:	2.73 MJ/m	0.82 MJ/m
Copper Value:	71.2 kg/km	28.1 kg/km

Norms

Applicable Standards:	ODVA DeviceNet	ODVA DeviceNet
UL Styles:	CMG PLTC	CL2 CMG
CSA Standard:	CEC: CMG FT4	CEC: CMG FT4

Approvals

Application

DeviceNet™ is a bus system developed by Allen Bradley (Rockwell Automation). These cables are used to interconnect various industrial devices, such as SPS controls or limit switches. The special characteristic of this bus system is that a data pair and a power supply pair are integrated in one cable. These cables with halogen free jacket are designed for fixed installation.

Properties

Not Available

Note

Not Available

Type/Area of Application	Fixed Installation, Indoor	Fixed Installation, Indoor

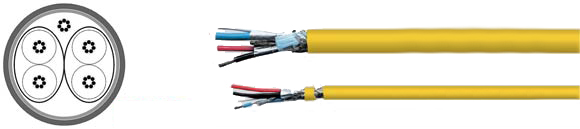

Cable Construction	1x2xAWG18 +1x2xAWG15	1x2xAWG24 +1x2xAWG22

Inner Conductor Diameter 1:	Copper, tinned (AWG 18/19)	Copper, tinned (AWG 24/19)
Inner Conductor Diameter 2:	Copper, tinned (AWG 15/19)	Copper, bare (AWG 22/19)
Conductor Insulation 1:	PE	PE
Conductor Insulation 2:	PE	PVC
Conductor Colors 1:	light blue, white	light blue, white
Conductor Colors 2:	red, black	red, black
Stranding Element:	Double conductor	Double conductor
Shielding 1:	-	-
Shielding 2:	Polyester foil, aluminum-lined	Polyester foil, aluminum-lined
Total Shielding:	Copper braid, tinned	Copper braid, tinned
Drain Wire:	yes	yes
Outer Jacket Material:	PE	PE
Outer Cable Diameter:	Approx. 12.0 mm ± 0.3 mm	Approx. 7.0 mm ± 0.3 mm
Outer Jacket Color:	Yellow	Yellow
