Data, Network & BUS Cable | CAN Bus Drag Chain (Track)

Part Number:
81911

Part Number:
81912

Electrical Data

Characteristic Impedance:	120 Ohm ± 10%	120 Ohm ± 10%
Conductor Resistance:	85.0 Ohm/km max.	85.0 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Loop Resistance:	170 Ohm/km max.	170 Ohm/km max.
Mutual Capacitance:	50.0 nF/km nom.	50.0 nF/km nom.
Test Voltage:	1.5 kV	1.5 kV

Technical Data

Weight:	Approximately 40.0 kg/km	Approximately 45.0 kg/km
Min. Bending Radius (Laying):	90.0 mm	95.0 mm
Operating Temp.Range, min.:	-20°C/-4°F	-20°C/-4°F
Operating Temp.Range, max.:	+70°C/158°F	+70°C/158°F
Caloric Load, approx. value:	0.798 MJ/m	0.943 MJ/m
Copper Value:	18.0 kg/km	25.0 kg/km

Norms

Applicable Standards:

Profibus acc. to DIN 19245 T3 and EN 50170

Technical Data

Electrical Data

Characteristic Impedance:	120 Ohm ± 10%	120 Ohm ± 10%
Conductor Resistance:	85.0 Ohm/km max.	85.0 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Loop Resistance:	170 Ohm/km max.	170 Ohm/km max.
Mutual Capacitance:	50.0 nF/km nom.	50.0 nF/km nom.
Test Voltage:	1.5 kV	1.5 kV

Technical Data

Weight:	Approximately 40.0 kg/km	Approximately 45.0 kg/km
Min. Bending Radius (Laying):	90.0 mm	95.0 mm
Operating Temp.Range, min.:	-20°C/-4°F	-20°C/-4°F
Operating Temp.Range, max.:	+70°C/158°F	+70°C/158°F
Caloric Load, approx. value:	0.798 MJ/m	0.943 MJ/m
Copper Value:	18.0 kg/km	25.0 kg/km

Norms

Applicable Standards:

Profibus acc. to DIN 19245 T3 and EN 50170

Approvals

Type/Area of Application	Drag Chain Applications	Drag Chain Applications

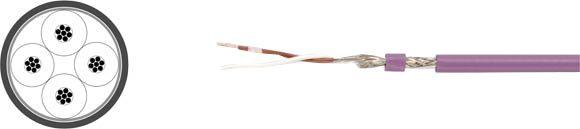

Cable Construction	1x2x0.25 mm² (stranded)	4x1x0.25 mm² (stranded)

Inner Conductor Diameter 1:	Copper, bare (AWG 24/19)	Copper, bare (AWG 24/19)
Conductor Insulation:	PE	PE
Conductor Colors:	white, brown	white, brown, green-yellow
Stranding Element:	Double conductor	Star quad
Shielding 1:	Polyester foil over stranded bundle	Polyester foil over stranded bundle
Shielding 2:	-	-
Total Shielding:	Copper braid, tinned	Copper braid, tinned
Outer Jacket Material:	PUR	PUR
Outer Diameter:	Approx. 6.2 mm ± 0.3 mm	Approx. 6.5 mm ± 0.3 mm
Outer Jacket Color:	Violet similar to RAL 4001	Violet similar to RAL 4001

Application

The CAN bus series (control area network) is a variable field bus system. In the area of automation technology, complex controllers and control units are networked. Industries, such as the textile or construction machine industry and the medical technology, use this series. The above mentioned types are suitable for fixed laying in indoor applications. This is also a very economical solution of a BUS system.
