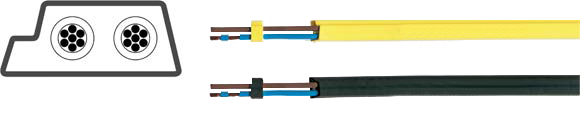

Data, Network & BUS Cable | A-BUS TPE

Part Number:
801954

Part Number:
801955

Electrical Data

Conductor Resistance:	13.7 Ohm/km max.	13.7 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Nominal Voltage:	32 V	48 V
Test Voltage:	1.5 kV at 15 min.	1.5 kV at 15 min.

Technical Data

Weight:	Approximately 70.0 kg/km	Approximately 70.0 kg/km
Min. Bending Radius (Laying):	24.0 mm	24.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+105 °C	+105 °C
Caloric Load, approx. value:	1.10 MJ/m	1.10 MJ/m
Copper Value:	31.0 kg/km	31.0 kg/km

Norms

Applicable Standards:	ASI Standard	ASI Standard
UL Style:	21439, According to UL 758	21439, According to UL 758
CSA Standard:	CSA FT2	CSA FT2

Technical Data

Electrical Data

Conductor Resistance:	13.7 Ohm/km max.	13.7 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Nominal Voltage:	32 V	48 V
Test Voltage:	1.5 kV at 15 min.	1.5 kV at 15 min.

Technical Data

Weight:	Approximately 70.0 kg/km	Approximately 70.0 kg/km
Min. Bending Radius (Laying):	24.0 mm	24.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+105 °C	+105 °C
Caloric Load, approx. value:	1.10 MJ/m	1.10 MJ/m
Copper Value:	31.0 kg/km	31.0 kg/km

Norms

Applicable Standards:	ASI Standard	ASI Standard
UL Style:	21439, According to UL 758	21439, According to UL 758
CSA Standard:	CSA FT2	CSA FT2

Approvals

Type/Area of Application	Mobile Use	Mobile Use
Cable Construction	2x1.5 mm²	2x1.5 mm²

Inner Conductor Diameter:	Copper, tinned	Copper, tinned
Conductor Insulation:	TPE	TPE
Conductor Colors:	blue, brown	blue, brown
Stranding Element:	-	-
Shielding 1:	-	-
Shielding 2:	-	-
Total Shielding:	-	-
Outer Jacket Material:	TPE	TPE
Outer Jacket Color:	Yellow similar to RAL 1023	Black similar to RAL 9005

Application

AS components are interconnected with this special system cable. With the AS interface, the cable assembly from the control system to the sensor/actuator is not needed. The AS interface is the field bus system that transmits both data and power in one single cable. With fast contacting in penetration technique, the possibility of errors in cabling is largely reduced. The special outer jacket provides protection against many oils, grease, and refrigerant lubricants, and the cable is therefore even suitable for applications in wet surroundings, in machinery and plant construction, as well as in the machine tool and automotive industry. These variations are certified for the American market (UL 758) through the use of special materials.
