Data, Network & BUS Cable | A-BUS PUR

Part Number:
82434

Part Number:
82822

Electrical Data

Conductor Resistance:	13.7 Ohm/km max.	13.7 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Loop Resistance:	27 Ohm/km max.	27 Ohm/km max.
Nominal Voltage:	32 V	48 V
Test Voltage:	1.0 kV at 15 min.	1.0 kV at 15 min.

Technical Data

Weight:	Approximately 64.0 kg/km	Approximately 64.0 kg/km
Min. Bending Radius (Laying):	30.0 mm	30.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+80°C/+176°F	+80°C/+176°F
Caloric Load, Approx. Value:	0.965 MJ/m	0.965 MJ/m
Copper Value:	31.0 kg/km	31.0 kg/km

Norms

Applicable Standards:

ASI Standard

Technical Data

Electrical Data

Conductor Resistance:	13.7 Ohm/km max.	13.7 Ohm/km max.
Insulation Resistance:	1.00 GOhm x km min.	1.00 GOhm x km min.
Loop resistance:	27 Ohm/km max.	27 Ohm/km max.
Nominal Voltage:	32 V	48 V
Test Voltage:	1.0 kV at 15 min.	1.0 kV at 15 min.

Technical Data

Weight:	Approximately 64.0 kg/km	Approximately 64.0 kg/km
Min. Bending Radius (Laying):	30.0 mm	30.0 mm
Operating Temp.Range, min.:	-40°C/-40°F	-40°C/-40°F
Operating Temp.Range, max.:	+80°C/+176°F	+80°C/+176°F
Caloric Load, Approx. Value:	0.965 MJ/m	0.965 MJ/m
Copper Value:	31.0 kg/km	31.0 kg/km

Norms

Applicable Standards:

ASI Standard

Approvals

Type/Area of Application	Actuator Sensor Interface	Actuator Sensor Interface

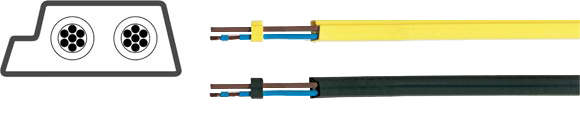

Cable Construction	2x1.5 mm²	2x1.5 mm²

Inner Conductor Diameter:	Copper, tinned	Copper, tinned
Conductor Insulation:	PO	PO
Conductor Colors:	blue, brown	blue, brown
Stranding Element:	-	-
Shielding 1:	-	-
Shielding 2:	-	-
Total Shielding:	-	-
Outer Jacket Material:	PUR	PUR
Outer Jacket Color:	Yellow similar to RAL 1023	Black similar to RAL 9005

Application

AS components are interconnected with this special system cable. With the AS interface, the cable assembly from the control system to the sensor/actuator is not needed. The AS interface is the field bus system that transmits both data and power in one single cable. With fast contacting in penetration technique, the possibility of errors in cabling is largely reduced. The special outer jacket provides protection against oil, grease, and refrigerant lubricants, and the cable is therefore even suitable for applications in wet surroundings, in machinery and plant construction, as well as in the machine tool and automotive industry. The PUR variant is suitable for heavy-duty industrial environments.
