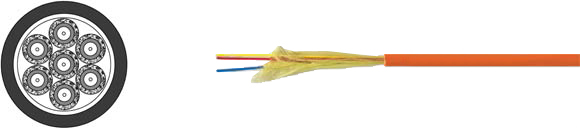

Data, Network & BUS Cable: Fiber Optic Mini-Breakout-Cable
Acc. to DIN VDE 0888
I-V(ZN)H
Sealcon, Inc, European & Domestic cable
Part-No.
Description Fibers
No.
of Fibers/ Conductor
Outer Ø (mm) Max. Min.
Stat. Bending Radius Caloric
Load MJ/m Transverse
Pressure N/cm (max.)
Weight
kg/km
No.
Type
80435
I-V(ZN)H
2
Multi-Mode
G50/125
1
4.0
400
60.0
0.24
40
15.0
80434
I-V(ZN)H
2
Multi-Mode
G62.5/125
1
4.0
400
60.0
0.24
40
15.0
80433
I-V(ZN)H
2
Single-Mode
E9/125
1
4.0
400
60.0
0.24
40
15.0
80432
I-V(ZN)H
4
Multi-Mode
G50/125
1
4.8
400
70.0
0.31
40
19.0
80431
I-V(ZN)H
4
Multi-Mode
G62.5/125
1
4.8
400
70.0
0.31
40
19.0
80430
I-V(ZN)H
4
Single-Mode
E9/125
1
4.8
400
70.0
0.31
40
19.0
80429
I-V(ZN)H
6
Multi-Mode
G50/125
1
5.3
400
80.0
0.35
40
23.0
80428
I-V(ZN)H
6
Multi-Mode
G62.5/125
1
5.3
400
80.0
0.35
40
23.0
80427
I-V(ZN)H
6
Single-Mode
E9/125
1
5.3
400
80.0
0.35
40
23.0
80426
I-V(ZN)H
8
Multi-Mode
G50/125
1
5.3
500
80.0
0.40
40
25.0
80425
I-V(ZN)H
8
Multi-Mode
G62.5/125
1
5.3
500
80.0
0.40
40
25.0
80424
I-V(ZN)H
8
Single-Mode
E9/125
1
5.3
500
80.0
0.40
40
25.0
80423
I-V(ZN)H
10
Multi-Mode
G50/125
1
6.0
600
90.0
0.53
40
32.0
80422
I-V(ZN)H
10
Multi-Mode
G62.5/125
1
6.0
600
90.0
0.53
40
32.0
80421
I-V(ZN)H
10
Single-Mode
E9/125
1
6.0
600
90.0
0.53
40
32.0
80420
I-V(ZN)H
12
Multi-Mode
G50/125
1
7.0
800
110.0
0.61
40
40.0
80419
I-V(ZN)H
12
Multi-Mode
G62.5/125
1
7.0
800
110.0
0.61
40
40.0
80418
I-V(ZN)H
12
Single-Mode
E9/125
1
7.0
800
110.0
0.61
40
40.0
Corrosiveness acc. to EN 50267-2-3
Halogen-free acc. to 60754-2
Flame-resistance acc. to IEC 60332-1
Smoke Density acc. to IEC 61034
Fiber
Specifications
Granded
Index Fibers (Multi-Mode)
Specification
Fiber
Type G 50/125
Fiber
Type G 62.5/125
Fiber Category
OM2 Standard
Fiber
OM1 Standard
Fiber
Conductor Diameter
50 ± 3 µm
62.5 ± 3 µm
Numerical Aperture
0.200 ± 0.015
0.275 ± 0.015
Typical
Attenuation
850
nm
2.8 dB/km
3.0 dB/km
1300 nm
0.7 dB/km
1.0 dB/km
Minimum Bandwidth
850 nm
500 MHz x
km
200 MHz x
km
1300 nm
800 MHz x
km
500 MHz x
km
Cladding Diameter
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
Conductor Non-circularity
< 5%
Cladding Concentricity
Error
< 3.0 µm
Cladding Non-circularity
< 2%
Specification
Fiber
Type G 50/125
Fiber Category
OM3
Standard Fiber
OM4 Standardfibre
Conductor Diameter
50 ± 3 µm
50 ± 3 µm
Numerical Aperture
0.200 ± 0.015
0.200 ± 0.015
Typical Attenuation
850 nm
2.5
dB/km
3.0
dB/km
1300 nm
0.5
dB/km
1.0 dB/km
Minimum Bandwidth
850 nm
1500
MHz x km
3500 MHz x km
1300 nm
500
MHz x km
500 MHz x km
Cladding Diameter
125 ± 1.0 µm
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
245 ± 10 µm
Conductor Non-circularity
< 5%
< 5%
Cladding Concentricity
Error
< 3.0 µm
< 6.0 µm
Cladding Non-circularity
< 2%
< 2%
Single-Mode
Fiber
Specification
Fiber
Type E9...10/125 (single mode)
Fiber Category
ITU-T G.
652
Attenuation
1300
nm
0.36 dB/km
1550 nm
0.22 dB/km
Dispersion
1285 - 1330
nm
< 3.5
ps (nm x km)
1550 nm
< 19 ps
(nm x km)
Wave Length
1312 nm
Mode Field Diameter
at 1310 nm
9.3 ± 0.5 µm
Cladding Diameter
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
Cut-off Wave
Length
< 1250
nm
Cladding Concentricity
Error
≤ 0.8 µm
Cladding Non-circularity
< 1.0%
POF and HCS
Fiber
Specification
Fiber
Type POF P980/1000
Fiber
Type HCS K200/230
Conductor Diameter
980 µm
200 µm
Numerical Aperture
0.5
0.37
Typical Attenuation
650 nm
160 dB/km
10 dB/km
850 nm
-
8 dB/km
Minimum Bandwidth
650 nm
10 MHz x
100 m
17 MHz x
km
850 nm
-
20 MHz x
km
Wall Thickness
1000 µm
230 µm
Cable
Construction Temperature
Range
Conductor
Type:
Tight
Buffer
Strain Relief Elements:
Aramide
Outer Jacket Material:
FRNC
Outer Jacket Color:
Orange
Laying,
min.:
-5°C/+23°F
Laying,
max:
+50°C/+122°F
Operating,
min.:
-10°C/+14°F
Operating,
max.:
+60°C/+140°F
These ® fiber-optic
cables are used for the data network
cabling in indoor applications. A
big advantage of this cable type
is its space-saving construction.
Similar to the breakout cable, the
connector is directly mounted at
the tight buffer.
