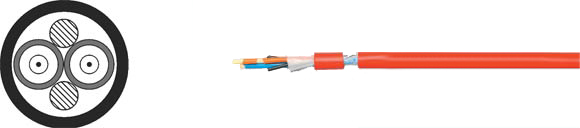

Helucom Fiber Optic Cables | Industry HCS Fiber Optic Breakout Cable I-V(ZN)Y11Y

Part-No.	Description	Fibers		No.of Fibers/ Cond.	Outer Ø(mm)	Max. Tensile Force	Min. Stat. Bending Radius	Caloric Load MJ/m	Transverse Pressure N/cm (max.)	Weight kg/km
		No.	Type
800980	I-V(ZN)Y11Y	2	HCS 200/230	1	7.0	800	50.0	1.014	150	43.0

Oil-resistant

Fiber Specifications

Printable PDF

Granded Index Fibers (Multi-Mode)
Specification		Fiber Type G 50/125	Fiber Type G 62.5/125
Fiber Category		OM2 Standard Fiber	OM1 Standard Fiber
Conductor Diameter		50 ± 3 µm	62.5 ± 3 µm
Numerical Aperture		0.200 ± 0.015	0.275 ± 0.015
Typical Attenuation	850 nm	2.8 dB/km	3.0 dB/km
	1300 nm	0.7 dB/km	1.0 dB/km
Minimum Bandwidth	850 nm	500 MHz x km	200 MHz x km
	1300 nm	800 MHz x km	500 MHz x km
Cladding Diameter		125 ± 1.0 µm
Primary Coating Diameter		245 ± 10 µm
Conductor Non-circularity		< 5%
Cladding Concentricity Error		< 3.0 µm
Cladding Non-circularity		< 2%

Specification		Fiber Type G 50/125
Fiber Category		OM3 Standard Fiber	OM4 Standardfibre
Conductor Diameter		50 ± 3 µm	50 ± 3 µm
Numerical Aperture		0.200 ± 0.015	0.200 ± 0.015
Typical Attenuation	850 nm	2.5 dB/km	3.0 dB/km
	1300 nm	0.5 dB/km	1.0 dB/km
Minimum Bandwidth	850 nm	1500 MHz x km	3500 MHz x km
	1300 nm	500 MHz x km	500 MHz x km
Cladding Diameter		125 ± 1.0 µm	125 ± 1.0 µm
Primary Coating Diameter		245 ± 10 µm	245 ± 10 µm
Conductor Non-circularity		< 5%	< 5%
Cladding Concentricity Error		< 3.0 µm	< 6.0 µm
Cladding Non-circularity		< 2%	< 2%

Single-Mode Fiber
Specification		Fiber Type E9...10/125 (single mode)
Fiber Category		ITU-T G. 652
Attenuation	1300 nm	0.36 dB/km
	1550 nm	0.22 dB/km
Dispersion	1285 - 1330 nm	< 3.5 ps (nm x km)
	1550 nm	< 19 ps (nm x km)
Wave Length		1312 nm
Mode Field Diameter at 1310 nm		9.3 ± 0.5 µm
Cladding Diameter		125 ± 1.0 µm
Primary Coating Diameter		245 ± 10 µm
Cut-off Wave Length		< 1250 nm
Cladding Concentricity Error		≤ 0.8 µm
Cladding Non-circularity		< 1.0%

POF and HCS Fiber
Specification		Fiber Type POF P980/1000	Fiber Type HCS K200/230
Conductor Diameter		980 µm	200 µm
Numerical Aperture		0.5	0.37
Typical Attenuation	650 nm	160 dB/km	10 dB/km
Typical Attenuation	850 nm	-	8 dB/km
Minimum Bandwidth	650 nm	10 MHz x 100 m	17 MHz x km
Minimum Bandwidth	850 nm	-	20 MHz x km
Wall Thickness		1000 µm	230 µm

Approvals

Cable Construction

Temperature Range

Conductor Type:	Tight Buffer
Strain Relief Elements:	Aramide
Outer Jacket Material:	PUR
Outer Jacket Color:	Red

Laying, min.:	-5°C/+23°F
Laying, max:	+50°C/+122°F
Operating, min.:	-20°C/-4°F
Operating, max.:	+70°C/+158°F

Application

This ® HCS fiber cable is suitable for fixed installation indoors. Possible applications are normal and heavy-duty mechanical requirements for example in industrial environments. With the tight buffer construction, direct plug manufacturing, even on site, poses no problems. With a HCS fiber transmission lengths of up to 300m can be achieved.

Properties

Not Available

Note

Not Available

Cable Accessories

Coming Soon!
