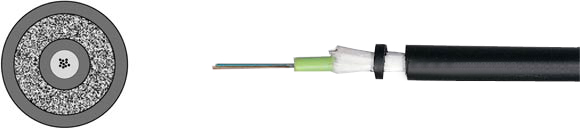

Data, Network & BUS Cable: Fiber Optic Outdoor Cable

Acc. to DIN VDE 0888 A-DQ(ZN)2Y, central

Sealcon, Inc, European & Domestic cable

Fiber Optic Outdoor Cable, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø(mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
80148  A-DQ(ZN)2Y 2 Multi-Mode G50/125 2 8.8 1500 130.0 1.60 250 40.0
80164  A-DQ(ZN)2Y 2 Multi-Mode G62.5/125 2 8.8 1500 130.0 1.60 250 40.0
80131  A-DQ(ZN)2Y 2 Single-Mode E9/125 2 8.8 1500 130.0 1.60 250 40.0
80149  A-DQ(ZN)2Y 4 Multi-Mode G50/125 4 8.8 1500 130.0 1.60 250 40.0
80165  A-DQ(ZN)2Y 4 Multi-Mode G62.5/125 4 8.8 1500 130.0 1.60 250 40.0
80132  A-DQ(ZN)2Y 4 Single-Mode E9/125 4 8.8 1500 130.0 1.60 250 40.0
80150  A-DQ(ZN)2Y 6 Multi-Mode G50/125 6 8.8 1500 130.0 1.60 250 40.0
80166  A-DQ(ZN)2Y 6 Multi-Mode G62.5/125 6 8.8 1500 130.0 1.60 250 40.0
80133  A-DQ(ZN)2Y 6 Single-Mode E9/125 6 8.8 1500 130.0 1.60 250 40.0
80151  A-DQ(ZN)2Y 8 Multi-Mode G50/125 8 8.8 1500 130.0 1.60 250 40.0
80167  A-DQ(ZN)2Y 8 Multi-Mode G62.5/125 8 8.8 1500 130.0 1.60 250 40.0
80134  A-DQ(ZN)2Y 8 Single-Mode E9/125 8 8.8 1500 130.0 1.60 250 40.0
80153  A-DQ(ZN)2Y 12 Multi-Mode G50/125 12 8.8 1500 130.0 1.60 250 40.0
80169  A-DQ(ZN)2Y 12 Multi-Mode G62.5/125 12 8.8 1500 130.0 1.60 250 40.0
80136  A-DQ(ZN)2Y 12 Single-Mode E9/125 12 8.8 1500 130.0 1.60 250 40.0
80154  A-DQ(ZN)2Y 16 Multi-Mode G50/125 16 8.8 1500 130.0 1.80 250 70.0
80170  A-DQ(ZN)2Y 16 Multi-Mode G62.5/125 16 8.8 1500 130.0 1.80 250 70.0
80137  A-DQ(ZN)2Y 16 Single-Mode E9/125 16 8.8 1500 130.0 1.80 250 70.0
80155  A-DQ(ZN)2Y 24 Multi-Mode G50/125 24 8.8 1500 130.0 1.80 250 70.0
80171  A-DQ(ZN)2Y 24 Multi-Mode G62.5/125 24 8.8 1500 130.0 1.80 250 70.0
80138  A-DQ(ZN)2Y 24 Single-Mode E9/125 24 8.8 1500 130.0 1.80

250

70.0
  • Corrosiveness acc. to EN 50267-2-3
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
Strain Relief Elements: Aramide
Outer Jacket Material: PE
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +60°C/+140°F
Application
These ® fiber-optic cables are characterized by a design that is particularly easy to mount. Around a central grooved cable, there is a composite of glass yarns and swelling fleece with characteristics that ensure the actual strain relief and waterproofing in longitudinal direction of the cable. In addition, these cables are designed grease-free. Wiping the jelly off is therefore unnecessary. This construction is particularly used in underground, tubes and channel areas, where rodent infestation is not to be expected.
Properties
  • N/A
Note
  • N/A
Cable Accessories
  • Coming Soon!
