Radiation Resistance Up
to 80x106 cJ/kg
(up to 80 Mrad)
Approvals

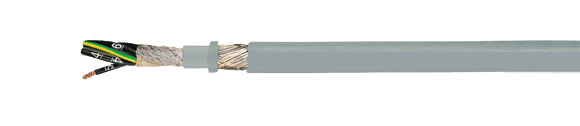

Cable
Construction
Bare copper,
extra fine wire conductors to
DIN VDE 0295 cl. 6 col. 4, BS
6360 cl. 6 and IEC 60228 cl.
6
Conductor insulation
of special PVC Z 7225
Black conductors
with continuous white figure
imprint to DIN VDE 0293
Green-yellow
grounding in the outer layer
(3 conductors and above)
Conductors stranded
in layers with optimal selected
lay length
Conductor wrapping
with fleece PVC-inner jacket
One layer
of tinned copper wire shielding,
with synthetic cross-helix to
improve the bending behavior
Minimum
coverage 80%
Special
PVC outer jacket, TM2 to DIN
VDE 0281 part 1 and HD 21.1
Color: Gray (RAL
7001)
Application
JZ-HF
cables are ideal for use
in the machine tool industry,
in robotics and machine production
and any place where high flexibility
is essential.
These cables have shown excellent
performance in combination
with standard cable trays.
These cables are suitable for
flexible use for medium mechanical
stresses with free movements.
The dense shielding assures
disturbance-free transmission
of all signals and impulses.
An ideal disturbance-free control
cable for the above application.
For applications which go beyond
standard solutions (for example
for composting appliances or
high shelf conveyors with extremely
high processing speeds etc.),
we recommend for our especially
developed enquiry sheet for
energy guiding systems.
Before installation in cable
trays. please read the instructions.
For further technical details, see
selection table for drag chain
cables, see lead text. EMI =
Electromagnetic
Interference
To optimize the EMI features
we recommend a large round
contact of the cooper braiding
on both ends. =
The
product
is
conformed
with
the
EC
Low-Voltage
Directive
73/23/EEC
and
93/68/EEC.
Properties
Extensively
oil resistant
Chemical Resistance - see table
Technical Information
PVC self-extinguishing
and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN
VDE 0472 part 804 test method B)
The materials
used in manufacture are cadmium-free, contain no silicone and are free
from substances harmful to the
wetting properties of lacquers
Note
G = with green-yellow grounding
x = without green-yellow earth
conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section
is in mm².
Clean room qualification tested
with analog type. Please note "clean
room qualified" when ordering.
Change-over up to construction with copper screening, tinned, approx. 85% for coverage optimization of the useful properties ar in preparation.
