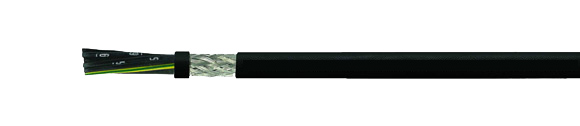

Control Cable: JZ-500-C-BLACK
EMC preffered type, Cu-screened, flexible, meter marking

Sealcon, Inc, European & Domestic cable

- JZ-500, Number coded, flexible, VDE

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
10934 JZ-500-C-Black 2X0.5 6.1 35.0 45.0 20
10935 JZ-500-C-Black 3G0.5 6.4 42.0 55.0 20
10936 JZ-500-C-Black 4G0.5 6.8 47.0 61.0 20
10937 JZ-500-C-Black 5G 0.5 7.5 56.0 74.0 20
10938 JZ-500-C-Black 7G 0.5 8.1 69.0 98.0 20
10939 JZ-500-C-Black 12G0.5 10.4 108.0 157.0 20
10940 JZ-500-C-Black 18G0.5 12.6 145.0 217.0 20
10941 JZ-500-C-Black 25G 0.5 14.5 240.0 314.0 20
10942 JZ-500-C-Black 2X0.75 6.5 40.0 59.0 18
10943 JZ-500-C-Black 3G 0.75 6.8 52.0 66.0 18
10944 JZ-500-C-Black 4G 0.75 7.3 60.0 77.0 18
10945 JZ-500-C-Black 5G 0.75 8.1 71.0 98.0 18
10946 JZ-500-C-Black 7G 0.75 8.9 91.0 130.0 18
10947 JZ-500-C-Black 12G 0.75 11.6 142.0 202.0 18
10948 JZ-500-C-Black 18G 0.75 13.6 212.0 292.0 18
10949 JZ-500-C-Black 25G 0.75 15.9 281.0 415.0 18
10950 JZ-500-C-Black 2 x 1 6.8 50.0 65.0 17
10951 JZ-500-C-Black 3G1 7.1 60.0 77.0 17
10952 JZ-500-C-Black 4G1 7.8 71.0 98.0 17
10953 JZ-500-C-Black 5G1 8.5 88.0 127.0 17
10954 JZ-500-C-Black 7G1 9.3 111.0 158.0 17
10955 JZ-500-C-Black 12G1 12.2 184.0 260.0 17
10956 JZ-500-C-Black 18G1 14.5 260.0 380.0 17
10957 JZ-500-C-Black 25G1 17.0 349.0 534.0 17
10958 JZ-500-C-Black 2 x 1.5 7.6 63.0 88.0 16
10959 JZ-500-C-Black 3G 1.5 8.0 80.0 100.0 16
10960 JZ-500-C-Black 4G 1.5 8.8 97.0 126.0 16
10961 JZ-500-C-Black 5G 1.5 9.7 119.0 160.0 16
10962 JZ-500-C-Black 7G 1.5 10.4 147.0 208.0 16
10963 JZ-500-C-Black 12G 1.5 13.8 267.0 338.0 16
10964 JZ-500-C-Black 18G 1.5 16.4 374.0 479.0 16
10965 JZ-500-C-Black 25G 1.5 19.2 526.0 705.0 16
10966 JZ-500-C-Black 2 x 2.5 9.0 96.0 130.0 14
10967 JZ-500-C-Black 3G 2.5 9.5 144.0 167.0 14
10968 JZ-500-C-Black 4G 2.5 10.4 148.0 195.0 14
10969 JZ-500-C-Black 5G 2.5 11.7 181.0 223.0 14
10970 JZ-500-C-Black 7G 2.5 12.8

255.0

 344.0 14
10971 JZ-500-C-Black 12G 2.5 16.7 441.0 570.0 14
10972 JZ-500-C-Black 18G 2.5 19.8 570.0 681.0 14
10973 JZ-500-C-Black 4 G 4 12.4 230.0 310.0 12
10974 JZ-500-C-Black 5 G 4 13.7 273.0 385.0 12
10975 JZ-500-C-Black 4 G 6 13.9 305.0 415.0 10
10976 JZ-500-C-Black 5 G 6 15.3 439.0 509.0 10
10977 JZ-500-C-Black 4 G 10 17.8 535.0 783.0 8
10978 JZ-500-C-Black 4 G 16 23.3 740.0 880.0 6
10979 JZ-500-C-Black 4 G 25 28.4 1140.0 1570.0 4
10980 JZ-500-C-Black 4 G 35 31.0 1576.0 2070.0 2
Technical Data
  • Control cables, special PVC
  • Requirements adapted to DIN VDE
    0281, 0293, 0295
  • Temperature Range
    Flexing
    -5°C to +80°C
    Fixed Installation
    40°C to +80°C
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed installation 4x cable �
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE PCTIPA
Cable Construction
  • Bare copper, fine wire conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductors insulation of special PVC Z 7225
  • Black cores with continuous white numbering according to DIN VDE 0293 (also available with other conductor colors)
  • Green-yellow earth core in the outer layer (3 cores and above)
  • Coonductors stranded in layers with optimal lay-length
  • Foil separator
  • Tinned copper braided shielding, approx. 85% coverage
  • Special PVC outer jacket TM2, to special PVC, TM2 to DIN VDE 0281 part 1 and HD 21.1
  • color: black (RAL 9005)
  • with meter marking
Application
For medium mechanical stress for flexible use with free movement without tensile stress or forced movements in dry, damp, wet rooms and in outdoor. Must not be laid directly in soil or water. When shielded for measurement, control and control line etc. in mechanical and plant engineering, machine tools, production lines and conveyor belts. EMC = Electromagnetic compatibility To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG
Properties
  • Extensively oil resistant oil-/chemical resistance
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • Important for assemblers: We supply any "desired length" of stranded conductors without outer jacket, conductor insulation color acc. to RAL 9005 with number combination acc. to customers requirement.
  • European-JB
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Please note the clean room qualification when ordering.
Cable Accessories
  • Coming Soon!
