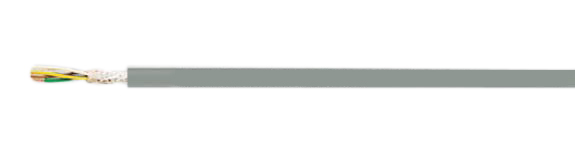

Control Cable: SUPERTRONIC-310-PVC
Special Cable for Drag Chains / Track Cable

Sealcon, Inc, European & Domestic cable

Sealcon, - SUPERTRONIC-310-PVC, Special PVC Drag Chain Cable approved to UL Style 2464, Control Cable

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG
49885 SUPERTRONIC-310-PVC 2X0.14 3.8 2.8 24.0 26
49886 SUPERTRONIC-310-PVC 3X0.14 4.0 4.1 26.0 26
49887 SUPERTRONIC-310-PVC 4X0.14 4.2 5.6 31.0 26
49888 SUPERTRONIC-310-PVC 5X0.14 4.5 7.0 36.0 26
49889 SUPERTRONIC-310-PVC 7X0.14 5.2 9.8 50.0 26
49890 SUPERTRONIC-310-PVC 10X0.14 6.1 14.0 65.0 26
49891 SUPERTRONIC-310-PVC 12X0.14 6.7 16.8 72.0 26
49892 SUPERTRONIC-310-PVC 14X0.14 6.7 19.6 78.0 26
49893 SUPERTRONIC-310-PVC 18X0.14 7.2 25.2 91.0 26
49894 SUPERTRONIC-310-PVC 24X0.14 8.2 33.6 120.0 26
49895 SUPERTRONIC-310-PVC 25X0.14 8.4 35.0 125.0 26
49896 SUPERTRONIC-310-PVC 2X0.25 4.2 5.0 29.0 24
49897 SUPERTRONIC-310-PVC 3X0.25 4.4 7.5 34.0 24
49898 SUPERTRONIC-310-PVC 4X0.25 4.7 10.0 40.0 24
49899 SUPERTRONIC-310-PVC 5X0.25 5.0 12.5 51.0 24
49900 SUPERTRONIC-310-PVC 7X0.25 5.8 17.5 65.0 24
49901 SUPERTRONIC-310-PVC 10X0.25 6.9 25.0 85.0 24
49902 SUPERTRONIC-310-PVC 12X0.25 7.6 30.1 97.0 24
49903 SUPERTRONIC-310-PVC 14X0.25 7.6 35.0 109.0 24
49904 SUPERTRONIC-310-PVC 18X0.25 8.2 45.0 132.0 24
49905 SUPERTRONIC-310-PVC 24X0.25 9.3 60.0 171.0 24
49906 SUPERTRONIC-310-PVC 25X0.25 9.6 62.5 178.0 24
49907 SUPERTRONIC-310-PVC 2X0.34 4.4 6.8 34.0 22
49908 SUPERTRONIC-310-PVC 3X0.34 4.6 10.2 43.0 22
49909 SUPERTRONIC-310-PVC 4X0.34 4.4 13.6 58.0 22
49910 SUPERTRONIC-310-PVC 5X0.34 5.3 17.0 65.0 22
49911 SUPERTRONIC-310-PVC 7X0.34 6.2 23.8 85.0 22
49912 SUPERTRONIC-310-PVC 10X0.34 7.3 34.0 117.0 22
49913 SUPERTRONIC-310-PVC 12X0.34 8.1 40.8 134.0 22
49914 SUPERTRONIC-310-PVC 14X0.34 8.1 47.6 152.0 22
49915 SUPERTRONIC-310-PVC 18X0.34 8.7 61.2 184.0 22
49916 SUPERTRONIC-310-PVC 24X0.34 9.9 81.5 242.0 22
49917 SUPERTRONIC-310-PVC 25X0.34 10.2 85.0 252.0 22
Technical Data
  • Special PVC drag chain cable approved to UL-Style 2464
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to 176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to 176°F)
  • Nominal Voltage 300 V
  • Test Voltage 1500 V
  • Breakdown Voltage
    Min. 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 5x cable Ø
    Fixed Installation 3x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper conductor, fine wire, with short lay-lengths
  • PVC conductor insulation, class 43 acc. to UL std. 1581
  • Color coded to DIN 47100
  • Conductors stranded in layers with optimal lay-length
  • Conductor wrapping from fleece between the layers of stranding
  • PVC outer jacket, oil resistant, TM5 acc. to DIN VDE 0281 Part 1 or class 43 acc. to UL std. 1581
  • Jacket Color: Gray (RAL 7001)
Application

A highly-flexible PVC control cable suitable for frequent and fast lifting and bending stresses in machines and tool building, robot systems and on constantly moving machine components. Long service lives guarantee reliable function and good cost efficiency.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
Designed for machines intended for export, specifically USA and Canada.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Low-adhesion
  • PVC self-extinguishing and flame-retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent to DIN VDE 0472, part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Please observe applicable installation regulations for use in energy supply chains.
Cable Accessories
  • Coming Soon!
