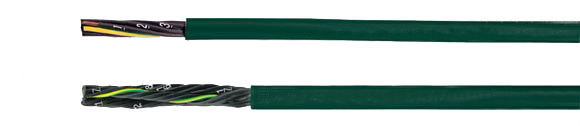

Control Cable: MULTISPEED® 500-PVC UL/CSA

High Flexible, Safety Against High Bending in Drag Chain/Track Cable Systems, Oil Resistant, Low Torsion,
Meter Marking

Sealcon, Inc, European & Domestic cable

Sealcon, , European MULTISPEED 500-PVC UL/CSA, Safety against high bending in drag chain system, Low Torsion, Highly Flexible, UL-CSA Approved, Control Cable

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG
24295 MULTISPEED 500-PVC UL/CSA 2X0.5 4.7 9.6 40.0 20
24296 MULTISPEED 500-PVC UL/CSA 3G0.5 4.9 14.4 45.0 20
24297 MULTISPEED 500-PVC UL/CSA 4G0.5 5.3 19.0 57.0 20
24298 MULTISPEED 500-PVC UL/CSA 5G0.5 5.8 24.0 66.0 20
24299 MULTISPEED 500-PVC UL/CSA 7G0.5 8.9 33.6 81.0 20
24300 MULTISPEED 500-PVC UL/CSA 12G0.5 9.8 58.0 133.0 20
24301 MULTISPEED 500-PVC UL/CSA 18G0.5 11.9 86.0 194.0 20
24302 MULTISPEED 500-PVC UL/CSA 25G0.5 13.9 120.0 274.0 20
24303 MULTISPEED 500-PVC UL/CSA 4G0.75 6.1 29.0 63.0 18
24304 MULTISPEED 500-PVC UL/CSA 5G0.75 6.6 36.0 79.0 18
24305 MULTISPEED 500-PVC UL/CSA 7G0.75 10.5 50.0 107.0 18
24306 MULTISPEED 500-PVC UL/CSA 12G0.75 11.4 86.0 169.0 18
24307 MULTISPEED 500-PVC UL/CSA 18G0.75 14.2 130.0 247.0 18
24308 MULTISPEED 500-PVC UL/CSA 25G0.75 16.3 180.0 366.0 18
24309 MULTISPEED 500-PVC UL/CSA 36G0.75 19.5 259.0 540.0 18
24310 MULTISPEED 500-PVC UL/CSA 42G0.75 22.2 302.0 630.0 18
24311 MULTISPEED 500-PVC UL/CSA 3G1 5.9 29.0 69.0 17
24312 MULTISPEED 500-PVC UL/CSA 4G1 6.4 38.4 86.0 17
24313 MULTISPEED 500-PVC UL/CSA 5G1 7.0 48.0 101.0 17
24314 MULTISPEED 500-PVC UL/CSA 7G1 11.2 67.0 140.0 17
24315 MULTISPEED 500-PVC UL/CSA 12G1 12.3 115.0 227.0 17
24316 MULTISPEED-500-PVC UL/CSA 18G1 15.1 173.0 351.0 17
24317 MULTISPEED 500-PVC UL/CSA 25G1 17.6 240.0 489.0 17
24318 MULTISPEED 500-PVC UL/CSA 3G1.5 6.7 43.0 88.0 16
24319 MULTISPEED 500-PVC UL/CSA 4G1.5 7.3 58.0 110.0 16
24320 MULTISPEED 500-PVC UL/CSA 5G1.5 8.1 72.0 130.0 16
24321 MULTISPEED 500-PVC UL/CSA 7G1.5 13.2 101.0 182.0 16
24322 MULTISPEED 500-PVC UL/CSA 12G1.5 14.4 173.0 319.0 16
24323 MULTISPEED 500-PVC UL/CSA 18G1.5 17.7 259.0 420.0 16
24324 MULTISPEED 500-PVC UL/CSA 25G1.5 20.5 360.0 604.0 16
24325 MULTISPEED 500-PVC UL/CSA 4G2.5 8.9 96.0 172.0 14
24326 MULTISPEED 500-PVC UL/CSA 5G2.5 9.9 120.0 219.0 14
24327 MULTISPEED 500-PVC UL/CSA 7G2.5 16.1 168.0 303.0 14
24328 MULTISPEED 500-PVC UL/CSA 12G2.5 17.8 288.0 504.0 14
24329 MULTISPEED 500-PVC UL/CSA 18G2.5 21.8 432.0 754.0 14
24330 MULTISPEED 500-PVC UL/CSA 25G2.5 24.4 600.0 940.0 14
Technical Data
  • Special drag chain cables for high mechanical stress and adapted to DIN VDE 0281 part 13 and E DIN VDE 0245 and UL-Std. 758 AWM Style 21179
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage
    U0/U 300/500 V
    UL 600 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE RoHS
Cable Construction
  • Bare copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    > 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    = 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-PVC outer jacket, especially resistant against fatigue strength, extruded as filler with pressure
  • Jacket Color: Pine Green (RAL 6028)
Application

UL/CSA approved European MULTISPEED 500-PVC are installed where the extreme requirements for the cables are necessary. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and slow speed of movements.
These high flexible PVC control cables are suitable for shift and bending stresses in machines and machine tool constructions. These are installed in dry and moist rooms with free movement without tensile stress or forced movements.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays. please read the instructions. Further technical details, see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) VW1, FT1
  • Low-adhesion
  • High property of alternating bending strength
  • Long life durability due to low friction-resistance
  • Better chemical resistance
  • Oil resistance
  • High stability
  • Higher economical solution
  • Reduced Ø, results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm2.
  • Screened type: MULTISPEED® 500-C-PVC UL/CSA
Cable Accessories
  • Coming Soon!
