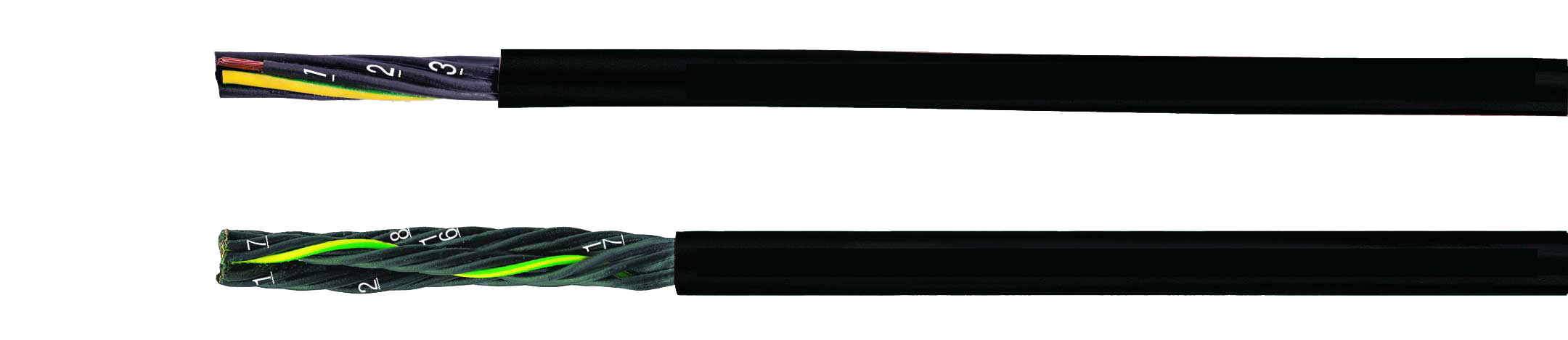

Control Cable: MULTISPEED® 500-PVC
Highly Flexible, Safety Against High Bending in Drag Chain Systems, Low Torsion

Sealcon, Inc, European & Domestic cable

Sealcon, - MULTISPEED 500-PVC, Highly Flexible, Safety against high bending in drag chain systems, Low Torsion

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG
24050 MULTISPEED 500-PVC 2X0.5 4.3 9.6 40.0 20
24051 MULTISPEED 500-PVC 3G0.5 4.6 14.4 45.0 20
24052 MULTISPEED 500-PVC 4G0.5 5.0 19.0 57.0 20
24053 MULTISPEED 500-PVC 5G0.5 5.4 24.0 66.0 20
24054 MULTISPEED 500-PVC 7G0.5 8.9 33.6 81.0 20
24055 MULTISPEED 500-PVC 12G0.5 9.7 58.0 133.0 20
24056 MULTISPEED 500-PVC 18G0.5 11.8 86.0 194.0 20
24057 MULTISPEED 500-PVC 25G0.5 13.9 120.0 274.0 20
24058 MULTISPEED 500-PVC 4G0.75 5.6 29.0 63.0 18
24059 MULTISPEED 500-PVC 5G0.75 6.3 36.0 79.0 18
24060 MULTISPEED 500-PVC 7G0.75 10.3 50.0 107.0 18
24061 MULTISPEED 500-PVC 12G0.75 11.0 86.0 169.0 18
24062 MULTISPEED 500-PVC 18G0.75 13.9 130.0 247.0 18
24063 MULTISPEED 500-PVC 25G0.75 15.9 180.0 366.0 18
24064 MULTISPEED 500-PVC 36G0.75 19.6 259.0 540.0 18
24065 MULTISPEED 500-PVC 42G0.75 21.5 302.0 630.0 18
24066 MULTISPEED 500-PVC 3G1 5.4 29.0 69.0 17
24067 MULTISPEED 500-PVC 4G1 5.9 38.4 86.0 17
24068 MULTISPEED 500-PVC 5G1 6.7 48.0 101.0 17
24069 MULTISPEED 500-PVC 7G1 11.1 67.0 140.0 17
24070 MULTISPEED 500-PVC 12G1 12.0 115.0 227.0 17
24071 MULTISPEED-500-PVC 18G1 14.8 173.0 351.0 17
24072 MULTISPEED 500-PVC 25G1 17.2 240.0 489.0 17
24073 MULTISPEED 500-PVC 3G1.5 6.4 43.0 88.0 16
24074 MULTISPEED 500-PVC 4G1.5 7.0 58.0 110.0 16
24075 MULTISPEED 500-PVC 5G1.5 7.8 72.0 130.0 16
24076 MULTISPEED 500-PVC 7G1.5 13.0 101.0 182.0 16
24077 MULTISPEED 500-PVC 12G1.5 14.2 173.0 319.0 16
24078 MULTISPEED 500-PVC 18G1.5 17.5 259.0 420.0 16
24079 MULTISPEED 500-PVC 25G1.5 20.1 360.0 604.0 16
24080 MULTISPEED 500-PVC 4G2.5 8.8 96.0 172.0 14
24081 MULTISPEED 500-PVC 5G2.5 9.8 120.0 219.0 14
24082 MULTISPEED 500-PVC 7G2.5 16.1 168.0 303.0 14
24083 MULTISPEED 500-PVC 12G2.5 17.8 288.0 504.0 14
24084 MULTISPEED 500-PVC 18G2.5 21.8 432.0 754.0 14
24085 MULTISPEED 500-PVC 25G2.5 24.4 600.0 940.0 14
Technical Data
  • Special drag chain cables for high mechanical stress in adapted to DIN VDE 0281 part 13 and E DIN VDE 0245
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to 176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to 176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE
Cable Construction
  • Bare copper fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    > 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    = 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength optimal selected short lay-length around a filler
  • Special-PVC outer jacket, especially resistant against fatigue strength, extruded as filler with pressure
  • Jacket Color: Pine Green (RAL 6028)
Application

European MULTISPEED® 500-PVC are installed where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and low speed of movements.
These high flexible PVC control cables are suitable for shift- and bending stresses in machines and machine tool constructions. These are installed in dry and moist rooms with free movement without tensile stress or forced movements.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installalling in cable trays, please read the instructions. Further technical details, see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Low adhesion
  • High property of alternating bending strength
  • High resistance to mechanical strain
  • Long life durabilities due to low friction-resistance
  • Better chemical resistance
  • Oil resistance
  • High stability
  • Higher economical solution
  • Reduced Ø, results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm2.
  • Shielded Type: MULTISPEED® 500-C-PVC
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
