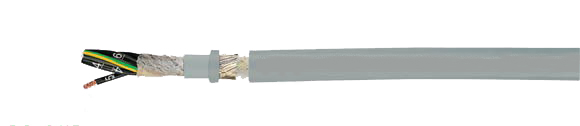

Control Cable: PUR�-JZ-HF-YCP
EMI Preferred Type, Cable for Drag Chains / Track Cable, Shielded, PUR-Outer Jacket

Sealcon, Inc, European & Domestic cable

Sealcon, - Pur�-JZ-HF-YCP, EMC (EMI Preferred Type) Cable for Drag Chain, Control Cable for Drag Chain, Shielded, PUR Outer Jacket, Control Cable
AWG Selection
20
 20
18
 18
17
 17
16
 16
14
 14
12
 12
10
 10
8
 8
6
 6

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
22400 PUR�-OZ-HF-YCP 2X0.5  7.5 47.0 90.0 20
22401 PUR�-JZ-HF-YCP 3G0.5 7.8 52.0 104.0 20
22402 PUR�-JZ-HF-YCP 4G0.5 8.2 55.0 123.0 20
22403 PUR�-JZ-HF-YCP 5G0.5 9.9 65.0 131.0 20
22404 PUR�-JZ-HF-YCP 7G0.5 10.0 84.0 172.0 20
22405 PUR�-JZ-HF-YCP 8G0.5 10.7 110.0 195.0 20
22406 PUR�-JZ-HF-YCP 10G0.5 11.3 115.0 230.0 20
22407 PUR�-JZ-HF-YCP 12G0.5 12.5 117.0 250.0 20
22408 PUR�-JZ-HF-YCP 14G0.5 13.2 148.0 280.0 20
22409 PUR�-JZ-HF-YCP 18G0.5 14.5 157.0 321.0 20
22410 PUR�-JZ-HF-YCP 21G0.5 14.9 183.0 380.0 20
22411 PUR�-JZ-HF-YCP 25G0.5 16.8 227.0 445.0 20
22412 PUR�-JZ-HF-YCP 30G0.5 18.4 275.0 509.0 20
22413 PUR�-JZ-HF-YCP 34G0.5 18.6 305.0 560.0 20
22414 PUR�-JZ-HF-YCP 42G0.5 20.0 373.0 780.0 20
22415 PUR�-JZ-HF-YCP 50G0.5 21.7 444.0 960.0 20
22416 PUR�-JZ-HF-YCP 61G0.5 23.0 541.0 1050.0 20
22417 PUR�-OZ-HF-YCP 2X0.75  8.3 53.0 106.0 18
22418 PUR�-JZ-HF-YCP 3G0.75 8.5 62.0 120.0 18
22419 PUR�-JZ-HF-YCP 4G0.75 9.5 77.0 150.0 18
22420 PUR�-JZ-HF-YCP 5G0.75 10.8 86.0 158.0 18
22421 PUR�-JZ-HF-YCP 7G0.75 11.5 107.0 205.0 18
22422 PUR�-JZ-HF-YCP 8G0.75 12.0 134.0 272.0 18
22423 PUR�-JZ-HF-YCP 10G0.75 13.1 148.0 290.0 18
22424 PUR�-JZ-HF-YCP 12G0.75 14.0 156.0 304.0 18
22425 PUR�-JZ-HF-YCP 14G0.75 15.3 214.0 380.0 18
22426 PUR�-JZ-HF-YCP 18G0.75 17.3 235.0 418.0 18
22427 PUR�-JZ-HF-YCP 21G0.75 18.1 274.0 485.0 18
22428 PUR�-JZ-HF-YCP 25G0.75 18.7 313.0 578.0 18
22429 PUR�-JZ-HF-YCP 30G0.75 21.5 351.0 630.0 18
22430 PUR�-JZ-HF-YCP 34G0.75 22.6 388.0 720.0 18
22431 PUR�-JZ-HF-YCP 42G0.75 23.6 458.0 780.0 18
22432 PUR�-JZ-HF-YCP 50G0.75 25.7 626.0 954.0 18
22433 PUR�-JZ-HF-YCP 61G0.75 26.8 763.0 1085.0 18
22434 PUR�-OZ-HF-YCP 2X1  10.0 60.0 116.0 17
22435 PUR�-JZ-HF-YCP 3G1 10.2 70.0 135.0 17
22436 PUR�-JZ-HF-YCP 4G1 11.0 86.0 178.0 17
22437 PUR�-JZ-HF-YCP 5G1 11.8 99.0 188.0 17
22438 PUR�-JZ-HF-YCP 7G1 12.7 125.0 235.0 17
22439 PUR�-JZ-HF-YCP 8G1 13.8 140.0 270.0 17
22440 PUR�-JZ-HF-YCP 10G1 14.6 178.0 340.0 17
22441 PUR�-JZ-HF-YCP 12G1 15.5 186.0 358.0 17
22442 PUR�-JZ-HF-YCP 14G1 16.7 250.0 415.0 17
22443 PUR�-JZ-HF-YCP 18G1 18.0 280.0 500.0 17
22444 PUR�-JZ-HF-YCP 21G1 19.4 328.0 525.0 17
22445 PUR�-JZ-HF-YCP 25G1 21.0 378.0 678.0 17
22446 PUR�-JZ-HF-YCP 32G1 23.1 450.0 777.0 17
22447 PUR�-JZ-HF-YCP 34G1 24.0 478.0 825.0 17
22448 PUR�-JZ-HF-YCP 41G1 25.4 576.0 980.0 17
22449 PUR�-JZ-HF-YCP 42G1 26.4 590.0 998.0 17
22450 PUR�-JZ-HF-YCP 50G1 27.6 702.0 1160.0 17
22451 PUR�-JZ-HF-YCP 65G1 31.0 913.0 1670.0 17
22452 PUR�-OZ-HF-YCP 2X1.5  10.5 79.0 141.0 16
22453 PUR�-JZ-HF-YCP 3G1.5 10.8 94.0 164.0 16
22454 PUR�-JZ-HF-YCP 4G1.5 11.5 113.0 220.0 16
22455 PUR�-JZ-HF-YCP 5G1.5 12.5 129.0 233.0 16
22456 PUR�-JZ-HF-YCP 7G1.5 13.2 170.0 323.0 16
22457 PUR�-JZ-HF-YCP 8G1.5 14.4 226.0 369.0 16
22458 PUR�-JZHF-YCP 10G1.5 14.9 258.0 461.0 16
22459 PUR�-JZHF-YCP 12G1.5 16.2 280.0 481.0 16
22460 PUR�-JZ-HF-YCP 14G1.5 18.1 340.0 561.0 16
22461 PUR�-JZ-HF-YCP 18G1.5 20.3 395.0 672.0 16
22462 PUR�-JZ-HF-YCP 21G1.5 21.7 461.0 780.0 16
22463 PUR�-JZ-HF-YCP 25G1.5 23.1 533.0 927.0 16
22464 PUR�-JZ-HF-YCP 30G1.5 26.4 608.0 1030.0 16
22465 PUR�-JZ-HF-YCP 34G1.5 27.4 702.0 1180.0 16
22466 PUR�-JZ-HF-YCP 42G1.5 29.5 867.0 1458.0 16
22467 PUR�-JZ-HF-YCP 50G1.5 31.6 1033.0 1857.0 16
22468 PUR�-JZ-HF-YCP 61G1.5 33.9 1233.0 2250.0 16
22469 PUR�-JZ-HF-YCP 65G1.5 35.0 1315.0 2401.0 16
22470 PUR�-OZ-HF-YCP 2X2.5  11.8 96.0 185.0 14
22471 PUR�-JZ-HF-YCP 3G2.5 13.0 150.0 278.0 14
22472 PUR�-JZ-HF-YCP 4G2.5 14.0 174.0 370.0 14
22473 PUR�-JZ-HF-YCP 5G2.5 15.1 200.0 412.0 14
22474 PUR�-JZ-HF-YCP 7G2.5 16.2 240.0 470.0 14
22475 PUR�-JZ-HF-YCP 12G2.5 21.0 410.0 738.0 14
22476 PUR�-JZ-HF-YCP 14G2.5 23.4 480.0 870.0 14
22477 PUR�-JZ-HF-YCP 18G2.5 25.7 620.0 1100.0 14
22478 PUR�-JZ-HF-YCP 25G2.5 31.0 821.0 1512.0 14
22479 PUR�-OZ-HF-YCP 2X4  13.4 135.0 235.0 12
22480 PUR�-JZ-HF-YCP 3G4 15.8 178.0 350.0 12
22481 PUR�-JZ-HF-YCP 4G4 17.3 222.0 460.0 12
22482 PUR�-JZ-HF-YCP 5G4 19.0 328.0 550.0 12
22483 PUR�-JZ-HF-YCP 7G4 21.0 360.0 700.0 12
22484 PUR�-JZ-HF-YCP 3G6  19.5 250.0 525.0 10
22485 PUR�-JZ-HF-YCP 4G6 21.0 305.0 700.0 10
22486 PUR�-JZ-HF-YCP 5G6 23.0 441.0 800.0 10
22487 PUR�-JZ-HF-YCP 7G6 24.0 505.0 1100.0 10
22488 PUR�-JZ-HF-YCP 3G10  18.8 370.0 855.0 8
22489 PUR�-JZ-HF-YCP 4G10 25.0 485.0 1140.0 8
22490 PUR�-JZ-HF-YCP 5G10 26.4 610.0 1310.0 8
22491 PUR�-JZ-HF-YCP 7G10 30.0 820.0 1630.0 8
22492 PUR�-JZ-HF-YCP 4G16  28.0 840.0 1391.0 6
22493 PUR�-JZ-HF-YCP 5G16 31.5 1050.0 1810.0 6
22494 PUR�-JZ-HF-YCP 7G16 34.0 1510.0 2166.0 6
Technical Data
  • Special polyurethane control cable adapted to DIN VDE 0245, 0281, 0282
  • Temperature Range
    Flexing
    -5�C to +80�C (+23�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-40�F to +176�F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable �
    Fixed Installation 5x cable �
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCERoHSPCT
Cable Construction
  • Bare copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, col. 4, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Oil resistant PVC conductor insulation TI2, adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Black conductors with continuous white numbering to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay length
  • Fleece separator
  • Oil resistant PVC inner jacket
  • One layer of tinned copper wire shielding, approx. 85% coverage
  • Special full-polyurethane outer jacket, to DIN VDE 0282 part 10, appendix A
  • Color: Gray (RAL 7001)
Application

PUR�-JZ-HF-YCP is a highly robust tear and abrasion-resistant cable with excellent resistance properties to mineral oils and cooling fluids, thus making it an ideal choice for installation in most types of industrial machinery as well as in steel works and rolling mills, etc. wherever you might need a cable to cope with especially critical situations. Easy to install, thanks to its high degree of flexibility. Its high abrasion resistance and good flexing ability make it quick and easy to install and, with its low bending radius, ideal for use with cable trays. This shielded cable is ideal for use in data signal and is transmission-free from interferences for measurement and control engineering technology.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI characteristics we recommend a large area of contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Suitable for outdoor installation and resistant to UV-radiation, oxygen, ozone and hydrolysis, conditionally resistant to microbes
  • Low adhesion
  • Flame retardant according to DIN VDE 048-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Unshielded type: PUR�-JZ-HF
Cable Accessories
  • Coming Soon!
