Control Cable:

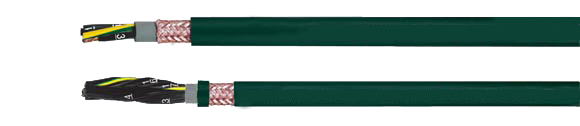

MULTISPEED® 500-C-PUR UL/CSA
Safety Against High Bending in Drag Chain / Track Cable Systems, Low Torsion, Halogen-Free, EMC Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon, , European MULTISPEED 500-C-PUR UL/CSA, Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMC (EMI) preferred type, UL-CSA Approved
AWG Selection
20 20
18
 18
17
 17
16
 16
14
 14

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
24410 MULTISPEED 500-C-PUR UL/CSA 2X0.5 6.6 30.0 90.0 20
24411 MULTISPEED 500-C-PUR UL/CSA 3G0.5 6.8 36.0 104.0 20
24412 MULTISPEED 500-C-PUR UL/CSA 4G0.5 7.3 42.0 118.0 20
24413 MULTISPEED 500-C-PUR UL/CSA 5G0.5 7.7 48.0 148.0 20
24414 MULTISPEED 500-C-PUR UL/CSA 7G0.5 11.3 64.0 184.0 20
24415 MULTISPEED 500-C-PUR UL/CSA 9G0.5 11.4 80.0 219.0 20
24416 MULTISPEED 500-C-PUR UL/CSA 12G0.5 12.4 105.0 276.0 20
24417 MULTISPEED 500-C-PUR UL/CSA 18G0.5 14.7 137.0 378.0 20
24418 MULTISPEED 500-C-PUR UL/CSA 25G0.5 17.1 210.0 547.0 20
24419 MULTISPEED 500-C-PUR UL/CSA 2X0.75 6.8 40.0 100.0 18
24420 MULTISPEED 500-C-PUR UL/CSA 3G0.75 7.4 48.0 117.0 18
24421 MULTISPEED 500-C-PUR UL/CSA 4G0.75 8.0 55.0 143.0 18
24422 MULTISPEED 500-C-PUR UL/CSA 5G0.75 8.5 66.0 167.0 18
24423 MULTISPEED 500-C-PUR UL/CSA 7G0.75 12.9 85.0 229.0 18
24424 MULTISPEED 500-C-PUR UL/CSA 12G0.75 14.4 135.0 319.0 18
24425 MULTISPEED 500-C-PUR UL/CSA 18G0.75 17.2 190.0 492.0 18
24426 MULTISPEED 500-C-PUR UL/CSA 25G0.75 19.9 275.0 659.0 18
24427 MULTISPEED 500-C-PUR UL/CSA 2X1 7.1 50.0 120.0 17
24428 MULTISPEED 500-C-PUR UL/CSA 3G1 7.7 59.0 140.0 17
24429 MULTISPEED 500-C-PUR UL/CSA 4G1 8.3 70.0 167.0 17
24430 MULTISPEED 500-C-PUR UL/CSA 5G1 9.1 84.0 201.0 17
24431 MULTISPEED 500-C-PUR UL/CSA 7G1 14.0 106.0 256.0 17
24432 MULTISPEED 500-C-PUR UL/CSA 12G1 15.0 174.0 417.0 17
24433 MULTISPEED 500-C-PUR UL/CSA 18G1 18.5 240.0 557.0 17
24434 MULTISPEED 500-C-PUR UL/CSA 25G1 21.4 332.0 766.0 17
24333 MULTISPEED 500-C-PUR UL/CSA 36G1 26.1 436.0 840.0 17
24435 MULTISPEED 500-C-PUR UL/CSA 3G1.5 8.6 75.0 170.0 16
24436 MULTISPEED 500-C-PUR UL/CSA 4G1.5 9.4 90.0 204.0 16
24437 MULTISPEED 500-C-PUR UL/CSA 5G1.5 10.4 108.0 236.0 16
24438 MULTISPEED 500-C-PUR UL/CSA 7G1.5 16.0 157.0 309.0 16
24439 MULTISPEED 500-C-PUR UL/CSA 12G1.5 17.6 240.0 509.0 16
24440 MULTISPEED 500-C-PUR UL/CSA 18G1.5 21.3 355.0 718.0 16
24441 MULTISPEED 500-C-PUR UL/CSA 25G1.5 24.8 448.0 944.0 16
24334 MULTISPEED 500-C-PUR UL/CSA 36G1.5 30.3 592.0 1070.0 16
24442 MULTISPEED 500-C-PUR UL/CSA 4G2.5 12.3 134.0 280.0 14
24443 MULTISPEED 500-C-PUR UL/CSA 5G2.5 12.2 175.0 346.0 14
24444 MULTISPEED 500-C-PUR UL/CSA 7G2.5 14.0 229.0 410.0 14
Technical Data
  • Special drag chain cables for high mechanical stress in adapted DIN VDE 0281 part 13, DIN VDE 0282 part 10 and E DIN VDE 0245 and UL Std. 758 AWM Style 20939
  • Temperature Range
    Flexing
    -30�C to +105�C (-22�F to +221�F)
    Fixed Installation
    -50�C to +105�C (-58�F to +221�F)
    UL/CSA:
    Flexing
    -30�C to +80�C (-22�F to +176�F)
    Fixed Installation
    -50�C to +80�C (-58�F to +176�F)
  • Nominal Voltage
    U0/U 300/500 V
    UL 600 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed Installation 4x cable �
  • Coupling Resistant
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSUL CSA CE RoHS
Cable Construction
  • Bare copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    > 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    = 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-TPE-O inner jacket, extruded as filler with pressure, gray RAL 7001
  • Shield of copper braid bare, coverage 85% max., with optimal pitch
  • Special-PUR outer jacket
  • Jacket color: Pine Green (RAL 6028)
Application

UL/CSA approved European MULTISPEED® 500-PUR are installed where the extreme requirements for the cables are necessary. Designed for the export-oriented machinery manufacturer, specifically for the USA and Canada. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and slow speeds. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed where the problems appear for the application in permanent stresses e.g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed every place where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary.
Theses shielded cables are particularly suitable for interference-free transmission in instrumentation and control engineering applications.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR-jacket flame retardant according to DIN VDE 0482332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), VW1, FT1
  • Low adhesion
  • High resistance to mechanical strain
  • Long life durability due to low friction-resistance
  • High tensile strength, abrasion and impact resistance at low temperature
  • Tear resistant
  • High stability
  • Oil resistance
  • Better chemical resistance
  • UV and ozone resistance
  • Higher economical solution
  • Reduced �, results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Unscreened type: MULTISPEED® 500-PUR UL/CSA
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
