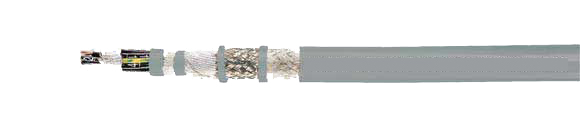

Control Cable: MULTIFLEX® 512-C-PUR
Special Cable for Drag Chains / Track Cable, Halogen-Free, Shielded, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon, - MULTIFLEX 512�-C-PUR, EMC (EMI Preferred Type) Shielded, Halogen-Free, A Special Cables for Drag Chains, Halogen Free, Control Cable for Drag Chain, Control Cable
AWG Selection
20
 20
18
 18
17
 17
16
 16
14
 14
12
 12
10
 10
8
 8
6
 6

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
22571 MULTIFLEX 512-C-PUR 2X0.5  8.3 47.0 90.0 20
22572 MULTIFLEX 512-C-PUR 3G0.5 8.5 52.0 105.0 20
22573 MULTIFLEX 512-C-PUR 4G0.5 9.0 55.0 124.0 20
22574 MULTIFLEX 512-C-PUR 5G0.5 9.7 65.0 132.0 20
22575 MULTIFLEX 512-C-PUR 7G0.5 11.1 84.0 175.0 20
22576 MULTIFLEX 512-C-PUR 12G0.5 12.7 117.0 250.0 20
22577 MULTIFLEX 512-C-PUR 18G0.5 14.7 157.0 325.0 20
22578 MULTIFLEX 512-C-PUR 20G0.5 15.4 167.0 350.0 20
22579 MULTIFLEX 512-C-PUR 25G0.5 17.0 227.0 450.0 20
22580 MULTIFLEX 512-C-PUR 30G0.5 17.9 273.0 510.0 20
22581 MULTIFLEX 512-C-PUR 36G0.5 19.2 306.0 580.0 20
22582 MULTIFLEX 512-C-PUR 2X0.75  8.8 53.0 110.0 18
22583 MULTIFLEX 512-C-PUR 3G0.75 9.3 62.0 120.0 18
22584 MULTIFLEX 512-C-PUR 4G0.75 9.7 77.0 148.0 18
22585 MULTIFLEX 512-C-PUR 5G0.75 10.5 86.0 160.0 18
22586 MULTIFLEX 512-C-PUR 7G0.75 11.9 106.0 205.0 18
22587 MULTIFLEX 512-C-PUR 12G0.75 14.2 156.0 308.0 18
22588 MULTIFLEX 512-C-PUR 18G0.75 16.3 233.0 420.0 18
22589 MULTIFLEX 512-C-PUR 20G0.75 16.9 249.0 450.0 18
22590 MULTIFLEX 512-C-PUR 25G0.75 19.2 313.0 579.0 18
22591 MULTIFLEX 512-C-PUR 30G0.75 19.7 351.0 630.0 18
22592 MULTIFLEX 512-C-PUR 36G0.75 21.2 400.0 745.0 18
22593 MULTIFLEX 512-C-PUR 2X1  9.7 60.0 120.0 17
22594 MULTIFLEX 512-C-PUR 3G1 10.0 70.0 135.0 17
22595 MULTIFLEX 512-C-PUR 4G1 10.8 86.0 173.0 17
22596 MULTIFLEX 512-C-PUR 5G1 11.7 99.0 187.0 17
22597 MULTIFLEX 512-C-PUR 7G1 13.4 124.0 240.0 17
22598 MULTIFLEX 512-C-PUR 12G1 16.0 186.0 360.0 17
22599 MULTIFLEX 512-C-PUR 18G1 18.5 279.0 498.0 17
22600 MULTIFLEX 512-C-PUR 20G1 19.4 322.0 568.0 17
22601 MULTIFLEX 512-C-PUR 25G1 21.7 377.0 670.0 17
22602 MULTIFLEX 512-C-PUR 30G1 22.5 429.0 774.0 17
22603 MULTIFLEX 512-C-PUR 36G1 24.3 516.0 895.0 17
22884 MULTIFLEX 512-C-PUR 41G1 26.1 610.0 1032.0 17
22885 MULTIFLEX 512-C-PUR 50G1 28.4 690.0 1160.0 17
22886 MULTIFLEX 512-C-PUR 65G1 32.2 852.0 1660.0 17
22604 MULTIFLEX 512-C-PUR 2X1.5  10.2 79.0 145.0 16
22605 MULTIFLEX 512-C-PUR 3G1.5 11.0 94.0 168.0 16
22606 MULTIFLEX 512-C-PUR 4G1.5 11.6 113.0 217.0 16
22607 MULTIFLEX 512-C-PUR 5G1.5 12.6 129.0 235.0 16
22608 MULTIFLEX 512-C-PUR 7G1.5 14.5 170.0 325.0 16
22609 MULTIFLEX 512-C-PUR 12G1.5 17.4 279.0 481.0 16
22610 MULTIFLEX 512-C-PUR 18G1.5 19.9 393.0 675.0 16
22611 MULTIFLEX 512-C-PUR 25G1.5 23.7 533.0 927.0 16
22612 MULTIFLEX 512-C-PUR 30G1.5 24.5 607.0 1025.0 16
22613 MULTIFLEX 512-C-PUR 36G1.5 26.4 702.0 1210.0 16
22887 MULTIFLEX 512-C-PUR 42G1.5 28.4 829.0 1441.0 16
22888 MULTIFLEX 512-C-PUR 50G1.5 31.2 1025.0 1709.0 16
22889 MULTIFLEX 512-C-PUR 61G1.5 34.2 1190.0 2025.0 16
22614 MULTIFLEX 512-C-PUR 2X2.5  11.9 104.0 198.0 14
22615 MULTIFLEX 512-C-PUR 3G2.5 12.6 129.0 284.0 14
22616 MULTIFLEX 512-C-PUR 4G2.5 13.6 164.0 378.0 14
22617 MULTIFLEX 512-C-PUR 5G2.5 14.7 190.0 423.0 14
22618 MULTIFLEX 512-C-PUR 7G2.5 17.4 274.0 486.0 14
22619 MULTIFLEX 512-C-PUR 12G2.5 20.9 426.0 756.0 14
22620 MULTIFLEX 512-C-PUR 18G2.5 24.2 607.0 1127.0 14
22621 MULTIFLEX 512-C-PUR 20G2.5 25.6 661.0 1210.0 14
22622 MULTIFLEX 512-C-PUR 25G2.5 29.1 796.0 1530.0 14
22623 MULTIFLEX 512-C-PUR 4G4  16.5 222.0 448.0 12
22624 MULTIFLEX 512-C-PUR 5G4 18.1 328.0 533.0 12
22625 MULTIFLEX 512-C-PUR 7G4 20.0 360.0 678.0 12
22626 MULTIFLEX 512-C-PUR 4G6  18.1 305.0 636.0 10
22627 MULTIFLEX 512-C-PUR 5G6 19.6 441.0 772.0 10
22628 MULTIFLEX 512-C-PUR 7G6 23.2 505.0 1028.0 10
22629 MULTIFLEX 512-C-PUR 4G10  22.5 485.0 1052.0 8
22630 MULTIFLEX 512-C-PUR 5G10 24.7 610.0 1096.0 8
22631 MULTIFLEX 512-C-PUR 7G10 29.3 820.0 1530.0 8
22632 MULTIFLEX 512-C-PUR 4G16  25.7 840.0 1386.0 6
22633 MULTIFLEX 512-C-PUR 5G16 28.2 1050.0 1759.0 6
22634 MULTIFLEX 512-C-PUR 7G16 33.6 1510.0 2087.0 6
Technical Data
  • Special cables for drag chains with high degree of resistance to mechanical stress adapted to DIN VDE 0282 part 1 and part 10
  • Temperature Range
    Flexing
    -40�C to +70�C (-40�F to +158�F)
    Fixed Installation
    -50�C to +70�C (-58�F to +158�F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage
    3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed Installation 4x cable �
  • Test of Alternating Bending Cycles
    Approx. 10 million
  • Radiation Resistance
    Up to 50x106 cJ/kg (up to 50 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCERoHS IPA
Cable Construction
  • Bare copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, col. 4, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Special conductor insulation, modified TPE
  • Black conductors with continuous white numbering
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay length
  • Special conductor wrapping over each layer and an additional fleece over outer layer
  • TPE-inner jacket, halogen-free
  • Wrapping with special tapes
  • Tinned copper braided shielding , approx. 85% coverage
  • Special conductor wrapping of fleece (up to 4 mm� without conductor wrapping over the outer layer
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Color: Gray (RAL 7001) outer surface mat
Application

The special shielded cables for drag chains are mainly applied for impulse transmission to prevent external interference effects and used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift operation. Those cables are developed according to the newest state of technology improvement. These high flexible control cables with sliding abilities guaranteed an optimum service life durability and also very economic by using the TPE-conductor insulation and the PUR-outer jacket which is adhesive-free and cut-resistant.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the cooper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Very good oil resistance, test method according to DIN VDE 0472 part 803
  • Guaranteed permanent application in multi-shift operation under extreme high bending stress
  • Low adhesion
  • Highly resistant to mechanical strain
  • High property of alternating bending strength
  • Long life durability through low friction-resistance by using TPE insulation
  • High tensile strength, abrasion and impact resistant at low temperatures
  • Resistant to weather, ozone and UV-radiation, solvents, acids and alkalis, hydraulic liquidity
  • PUR-jacket flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding;
    x = without green-yellow earth conductor (OZ).
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Clean room qualification tested with analog type. Please note "clean room qualified" when ordering.
  • Unshielded type: MULTIFLEX 512®-PUR
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
