Video Cables

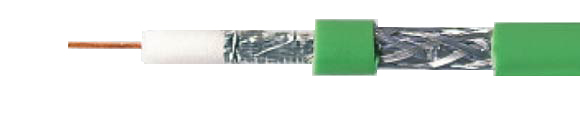

Cell PE-Insulated, Bare Copper Conductor / Polyester Foil Coated with Aluminum on Both Sides, Tinned Copper Braid , FRNC Outer Jacket 0.6 / 2.8

Sealcon, Inc, European & Domestic cable

Video Cables, 0.6./2.8 Indoor, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,
Part Number: 40022
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 2 Ohm
Propagation Velocity v/c: 0.8
Attenuation at 20°C/68°F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
0.9 2.2 2.6 3.2 7.5 10.2
Direct Current Resistance at 20°C/68°F:

Inner Conductor max.: 63.0 Ohm/km
Outer Conductor max.: 21.0 Ohm/km
Approx. Capacitance: 54.0 pF/m
Test Voltage: 3.5
Working Voltage (kV):

Pulse Operation: -
HF-Operation (Peak Value): -
DC Operation: -
Shielding Efficiency (dB) 50 and 900 MHz = 90
Copper Weight kg/km: 11.0
Technical Data
Electrical Characteristics
Impedance: 75� 2 Ohm
Propagation Velocity v/c: 0.8
Attenuation at 20�C/68�F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
0.9 2.2 2.6 3.2 7.5 10.2
Direct Current Resistance at 20�C/68�F:

Inner Conductor max.: 63.0 Ohm/km
Outer Conductor max.: 21.0 Ohm/km
Approx. Capacitance: 54.0 pF/m
Test Voltage: 3.5
Working Voltage (kV):

Pulse Operation: -
HF-Operation (Peak Value): -
DC Operation: -
Shielding Efficiency (dB) 50 and 900 MHz = 90
Copper Weight kg/km: 11.0
Approvals
RoHS
Cable Construction Used as: Indoors
Inner Conductor � mm: 0.6
Conductor Material: Copper, bare
Insulation � mm: 2.8 Cell PE
Outer Conductor 1: Polyester foil coated with Aluminum on both sides
� in mm (approximately): -
Inner Jacket/Foil: no
� in mm (approximately): -
Outer Conductor 2: Tinned copper braid
� in mm (approximately): -
Outer Jacket: FRNC
Jacket Color: Green
Outer Diameter (approx.): 4.3 mm
Min. Bending Radius: 25 mm
Weight (approx.): 24 kg/km
Properties
  • N/A
Note
  • N/A
Cable Accessories
  • Coming Soon!
