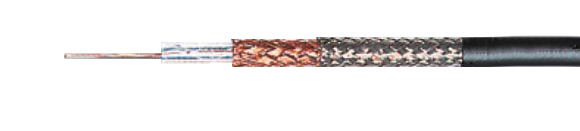

PE (Hollow)-Insulated, Steel
/ Bare Copper Conductor / Bare + Tinned
Copper Braid, PE Outer Jacket
RG-Type.../U 71
Sealcon, Inc, European & Domestic cable
Part
Number:40006 Add to Quote
Electrical
Characteristics
Impedance:
93 ± 3
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.83
Approx.
Capacitance:
42.5 pF/m
Rel. Velocity
of Propagation:
83%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
136 Ohm/km
Nominal
Peak Voltage:
1.5 kV
Dielectric
Strength 50Hz kV eff.
3.0
Attenuation
at 20°C (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
10.5
15.0
24.5
32.5
Technical
Data
Electrical
Characteristics
Impedance:
93 � 3
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.83
Approx.
Capacitance:
42.5 pF/m
Rel. Velocity
of Propagation:
83%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
136 Ohm/km
Nominal
Peak Voltage:
1.5 kV
Dielectric
Strength 50Hz kV eff.
3.0
Attenuation
at 20�C (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
10.5
15.0
24.5
32.5
Approvals
Cable
Construction
Inner
Conductor � mm:
1
x 0.65
Conductor Material:
Steel / Copper,
Bare
Insulation � mm:
3.7 PE, Hollow
Outer Conductor:
2 Braids: Copper,
Bare / Tinned Copper
Outer Jacket:
PE
Min. Bending
Radius:
30 mm
Temperature Range:
-50�C to
+70�C (-58�F to
+158�F)
Copper Weight:
48.0 kg/km
Outer Diameter
(approx.):
6.2 mm
Weight (approx.):
62 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
