RG-Coaxial Cables

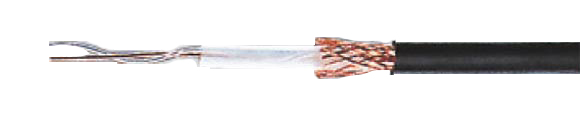

PE (Hollow)-Insulated, Steel / Bare Copper Conductor / Bare Copper Braid, PVC Outer Jacket RG-Type.../U 62

Sealcon, Inc, European & Domestic cable

RG-Coaxial Cables, RG-Type.../U 62, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,
Part Number: 40005
Add to Quote
Quantity

Electrical Characteristics
Impedance: 93 ± 5 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.83
Approx. Capacitance: 42.5 pF/m
Rel. Velocity of Propagation: 83%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 13 Ohm/km
Nominal Peak Voltage: 1.1 kV
Dielectric Strength 50Hz kV eff. 3.0
Attenuation at 20°C (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 1000 MHz 1350 MHz 1750 MHz
10.5 15.0 24.5 32.5 35.0 - -
Technical Data
Electrical Characteristics
Impedance: 93 � 5 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.83
Approx. Capacitance: 42.5 pF/m
Rel. Velocity of Propagation: 83%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 13 Ohm/km
Nominal Peak Voltage: 1.1 kV
Dielectric Strength 50Hz kV eff. 3.0
Attenuation at 20�C (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 1000 MHz 1350 MHz 1750 MHz
10.5 15.0 24.5 32.5 35.0 - -
Approvals
RoHS
Cable Construction
Inner Conductor � mm: 1 x 0.65
Conductor Material: Steel / Copper, bare
Insulation � mm: 3.7 PE, hollow
Outer Conductor: Braid: Copper, bare
Outer Jacket: PVC
Min. Bending Radius: 30 mm
Temperature Range: -35�C to +80�C (-31�F to +176�F)
Copper Weight: 26.0 kg/km
Outer Diameter (approx.): 6.15 mm
Weight (approx.): 52 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • RG-Coaxial types are in accordance with US-Military specifications MIL-C-17
  • RG/U: R=Radio, G=Guide, U=Utility
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
