Coaxial, Video & Loudspeaker Cables | RG-Coaxial Cable | U 6 PE Steel/Copper Conductor | Sealcon

Part Number: 40001
Add to Quote

Electrical Characteristics

Impedance:

75 ± 3 Ohm

Frequency Range (max.):

3 GHz

Propagation Velocity v/c:

0.66

Approx. Capacitance:

67.0 pF/m

Rel. Velocity of Propagation:

67%

Insulation Resistance (min.):

10⁵ MOhm x km

Loop Resistance (max.):

110 Ohm/km

Nominal Peak Voltage:

2.8 kV

Dielectric Strength 50Hz kV eff.

7.0

Attenuation at 20°C (dB/100m):

100 MHz	200 MHz	500 MHz	800 MHz	1000 MHz	1350 MHz	1750 MHz
8.8	13.5	21.0	27.5	-	-	-

Technical Data

Electrical Characteristics

Impedance:

75 � 3 Ohm

Frequency Range (max.):

3 GHz

Propagation Velocity v/c:

0.66

Approx. Capacitance:

67.0 pF/m

Rel. Velocity of Propagation:

67%

Insulation Resistance (min.):

10⁵ MOhm x km

Loop Resistance (max.):

110 Ohm/km

Nominal Peak Voltage:

2.8 kV

Dielectric Strength 50Hz kV eff.

7.0

Attenuation at 20�C (dB/100m):

100 MHz	200 MHz	500 MHz	800 MHz	1000 MHz	1350 MHz	1750 MHz
8.8	13.5	21.0	27.5	-	-	-

Approvals

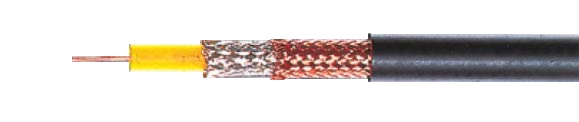

Cable Construction

Inner Conductor � mm:	1 x 0.72
Conductor Material:	Steel / Copper, Bare
Insulation � mm:	4.7 PE
Outer Conductor:	2 Braids: Silvered Copper / Copper, Bare
Outer Jacket:	PVC
Min. Bending Radius:	40 mm
Temperature Range:	-35�C to +80�C (-31�F to +176�F)
Copper Weight:	67.0 kg/km
Outer Diameter (approx.):	8.4 mm
Weight (approx.):	115 kg/km

Application

Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.

Note

The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
RG-Coaxial types are in accordance with US-Military specifications MIL-C-17
RG/U: R=Radio, G=Guide, U=Utility
